FHD 1U-4U 96-240F Full cover MPO&MTP-LC Fixed rack mount Patch panel

Share to:

Description

MPO/MTP-LC/SC Patch panel is made of CRS Cold rolled steel, Designed for 19″ rack-mount cabinet. Rack mounted. holds up to 3-10 pcs Fiber Adapter Panels or 3-10 pcs of HD MTP/MPO-LC/SC Cassette. It provides high density flexible system for managing fiber terminations, connections, and patching in datacenter application to maximizing rack space utilization and minimizing floor space.

Specification

1U MPO/MTP-LC 96F rack mount Patch panel

Products FHD 1U 96F MPO/MTP-LC Full cover Rack mounted Patch panel Fiber Count Max.96 Fibers
Enclosure Type Rack Mountable Material CRS Cold rolled steel
Installation Standard EIA 19″ Rack Dimensions (HxWxD) 1U*483mm*342.2mm
Compliant TIA/EIA-568-C.3 Advantage High Density Patching System



2U MPO/MTP-LC 192F rack mount Patch panel

Products FHD 2U 192F MPO/MTP-LC Full cover Rack mounted Patch panel Fiber Count Max.192 Fibers
Enclosure Type Rack Mountable Material CRS Cold rolled steel
Installation Standard EIA 19″ Rack Dimensions (HxWxD) 2U*483mm*342.2mm
Compliant TIA/EIA-568-C.3 Advantage High Density Patching System



4U MPO/MTP-LC 240F rack mount Patch panel

Products FHD 4U 240F MPO/MTP-LC Full cover Rack mounted Patch panel Fiber Count Max.192 Fibers
Enclosure Type Rack Mountable Material CRS Cold rolled steel
Installation Standard EIA 19″ Rack Dimensions (HxWxD) 4U*488.4mm*342.2mm
Compliant TIA/EIA-568-C.3 Advantage High Density Patching System

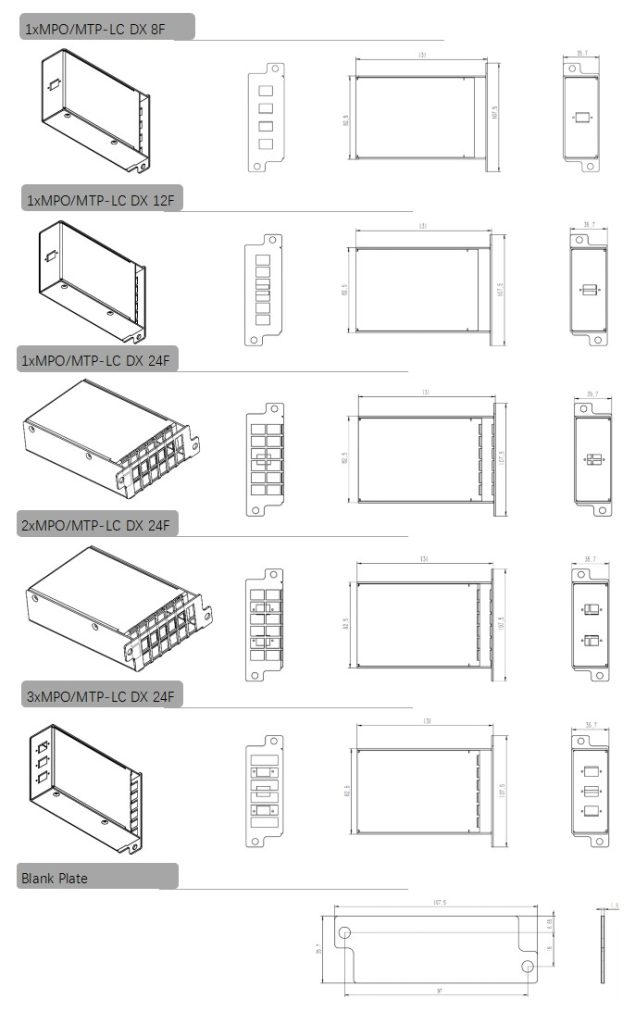

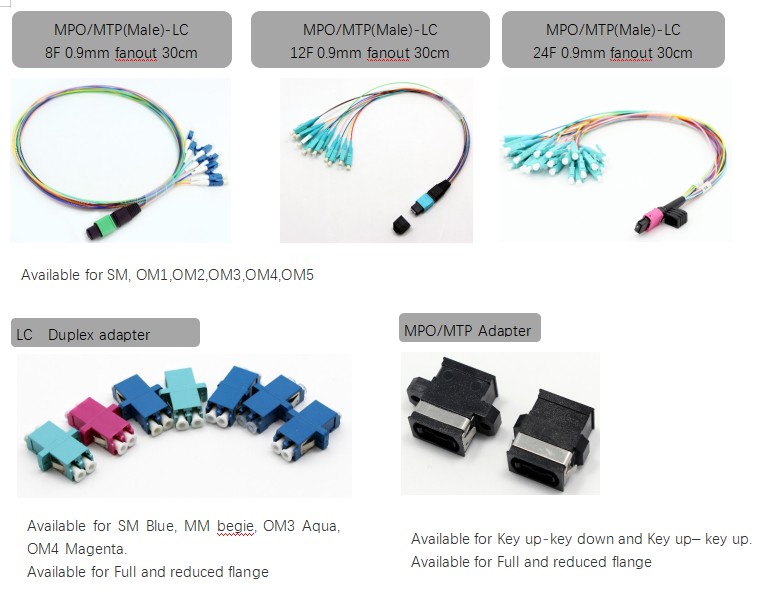

Matching Cassette
