Optical Specifications
| Spec items. |
Single mode (APC 8-degree polished) |
Multimode (PC Flat polish) |
| Insertion loss (MTP)
(IEC 61300-3-34) |
Standard loss：≤0.75dB(max), ≤0.50dB(Typical)
Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss：≤0.6dB(max), ≤0.50(Typical)
Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Return loss(MTP) |
≥60dB（8degree polishing） |
≥25dB |
| Durability |
<0.3dBtypical change, 200 matings |
| Interchangeability |
≤0.2dB |
| Tensile strength |
>70N |
| Operating Temperature |
-40 to + 85°C |
MT Ferrule’s End-Face 3D Interference
| Item (IEC-61300-3-30) |
Minimum |
Maximum |
| Radius of curvature (mm) |
ROC-X(ABS) |
2000 |
\ |
| ROC-Y(ABS) |
50mm |
\ |
| Angle |
Angle-X |
-0.2° |
-0.2° |
| Angle-Y |
APC |
7.85° |
8.15° |
| PC |
-0.2° |
-0.2° |
| Fiber height (nm) |
1000nm |
3500nm |
| Max.DH.All Fiber: |
-300nm |
300nm |
| DH.Adj: |
-300nm |
300nm |
| DH.Ave Fiber: |
-300nm |
300nm |
| Core Dip: |
SM |
N/A |
N/A |
| MM |
-200nm |
300nm |
Connectors
All of OMC’s MPO Connectors are from Senko / Nissin / China domestic brands
| Connector |
Reference |
Housing Details |
| MPO Singlemode |
IEC 61754-7 |
SM APC: Green connectors+black boot (Standard Loss MPO)
SM APC: Yellow connectors+black boot (Super low loss MPO) |
| MPO Multimode |
IEC 61754-7 |
OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
All of OMC’s MTP Connectors are from US Conec
| Connector |
Reference |
Housing Details |
| MTP Singlemode |
IEC 61754-7 |
SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Elite MTP) |
| MTP Multimode |
IEC 61754-7 |
OM3&OM4 PC: Aqua connectors+black boot (Standard Loss&Elite MTP) |
*Different size boot, Different colors housing kit are available too.

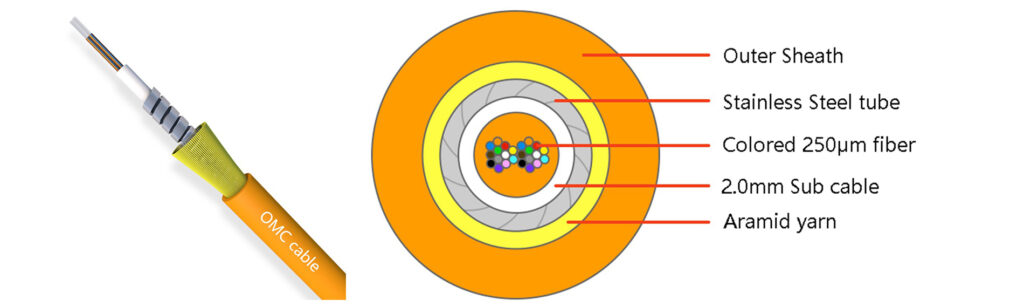

24cores Armored Micro-fiber Cable
| Item |
Contents |
Unit |
Data |
| Fiber type |
/ |
/ |
SM G652D;OM2,OM3,OM4 |
| Cable diameter |
±0.3 |
mm |
5.0±0.2 |
| Subunit cable |
Material |
/ |
PVC,LSZH(CRP certification) |
| Fiber count |
24x250um |
Blue,Orange,Green,Brown,Grey,White,
Red,Black,yellow,purple,pink,aqua, Blue+,Orange+,Green+,Brown+, Grey+,White+,
Red+,Black+,yellow+,purple+,pink+,aqua+, |
| Diameter |
mm |
2.0 |
| Armored unit |
Material |
/ |
SUS204 Stainless-steel Spiral Tube |
| Diameter |
mm |
2.8±0.2 |
| Strength member |
Material |
/ |
Aramid Yarn |
| Outer sheath |
material |
/ |
LSZH(CRP certification),PE,PVC,TPU,OFNP |
| Color |
/ |
Blue,Yellow,Black, Orange,Grey,Aqua…….. |
| Cable weight |
±5% |
kg/km |
46 |
| Max. tensile load |
/ |
N |
Short term:600N,Long term:300N |
| Max. crush resistance |
/ |
N/100mm |
Short term:3000N,Long term:1500N |
Polarity of 24C MPO&MTP trunk cables
Base-24 Polarity Solution

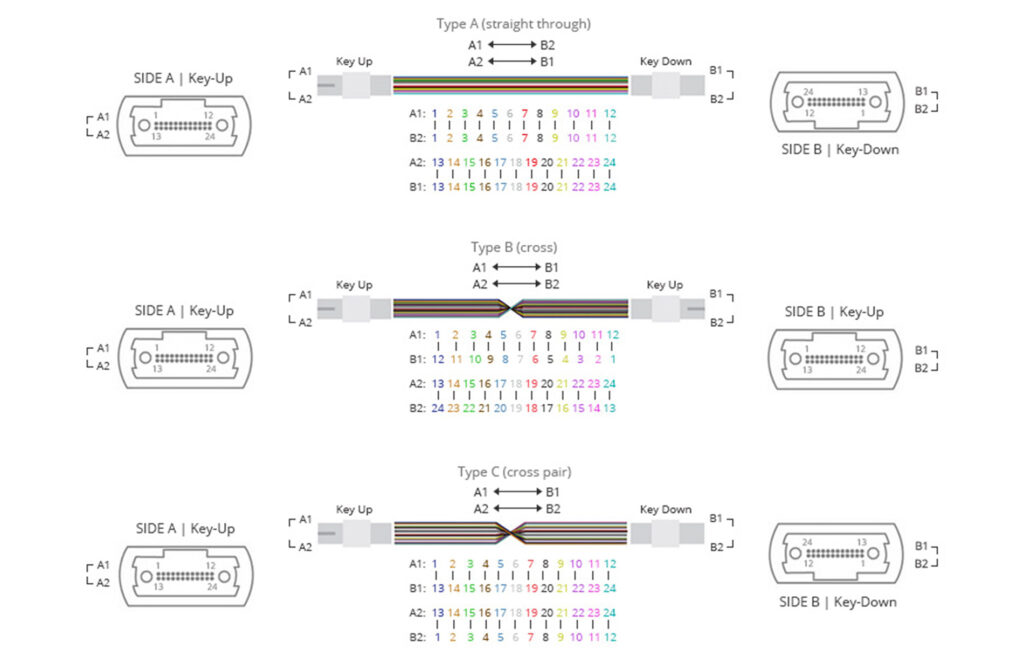

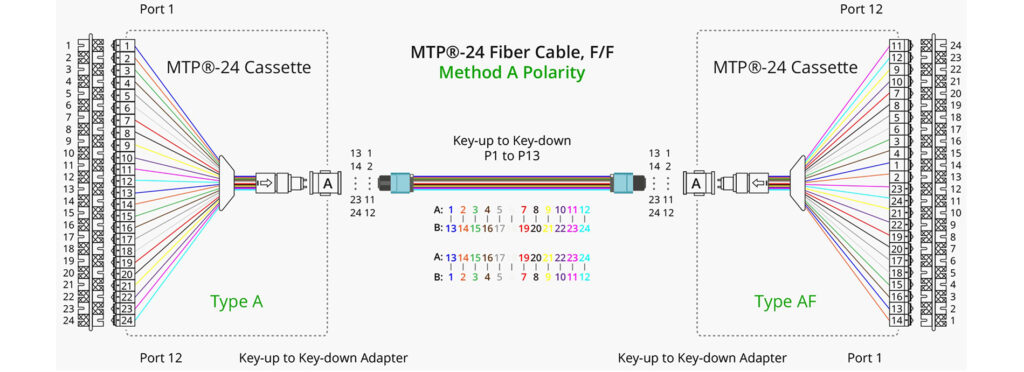

To catch up with the increased demand for higher bandwidth, 24-fiber MTP/MPO cable is introduced to facilitate migration to 100G network. It doubles the density of 12-fiber cabling in the same footprint, which reduces the fiber count, allows for fewer cable pathway, and improving airflow. The polarity maintenance of base-24 MTP/MPO cabling, however, is more complicated. OMC recommends the Type A (key-up to key-down) MTP/MPO trunk cable. With our Type A and Type AF cassette, no need for A-to-A patch cable any more. The connectivity method is illustrated in the following picture
Benefits of Armored Fiber Patch Cable
Common fiber optic cable is fragile, which needs to be protected, especially when in harsh applications where cables could be compromised by rodents, constant wear and tear or weather damage. Armored fiber patch cable retains all the features of standard fiber cable but is much stronger due to its extra layers of armor. With the protection of flexible and durable steel tube, armored fiber patch cable will ensure the excellent operation of your network.
Application
MPO/MTP Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
The 12F MTMPO/MTP Patch cable/trunk cable is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center.
Application
Ideal for harsh installation conditions that require exceptional durability. It is used as interconnection or cross connection in data center. It is also used in ceiling, corridor and other harsh environment.
Packaging
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.
Order Index
| Products |
– |
Fiber&cable |
– |
Fiber |
– |
Quality |
– |
Pin |
– |
Cable Jacket |
– |
Cable Color |
– |
Polarity |
– |
length |
| M1 -Senko MPO without tab |
|
A– 8F round cable |
|
1-G652D |
|
1-Standard loss |
|
1-F to F |
|
H-LSZH |
|
A-Blue |
|
A-Polarity A |
|
1-1m |
| M2-MTP without tab |
|
B-12F round cable |
|
2-G657A1 |
|
2-Super low loss |
|
2-F to M |
|
C-PVC |
|
B-Orange |
|
B-Polarity B |
|
1.5-1.5m |
| M3-China MPO |
|
C-16F round cable |
|
3-G657A2/B2 |
|
|
|
3-M to M |
|
F-OFNR |
|
C-Green |
|
C-Polarity C |
|
2-2m |
| M4-Senko MPO with tab |
|
D-20F round cable |
|
4-G657B3 |
|
|
|
|
|
P-OFNP |
|
D-Brown |
|
|
|
.. |
| M5-MTP with tab |
|
E-24F round cable |
|
5-BIF om1 |
|
|
|
|
|
U-TPU |
|
E-Grey |
|
|
|
|
|
|
|
|
6-BIF om2 |
|
|
|
|
|
… |
|
F-Whtie |
|
|
|
|
|
|
|
|
7-BIF om3 |
|
|
|
|
|
…. |
|
G-Red |
|
|
|
|
|
|
|
|
8-BIF om4 |
|
|
|
|
|
|
|
H-Black |
|
|
|
|
|
|
|
|
9-BIF om5 |
|
|
|
|
|
|
|
I-Yellow |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
J-Purple |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
K-Pink |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
L-Aqua |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
M-Magenta |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
