FHD 1U 72F MPO&MTP-LC Slide Rail Rack mount patch panel

Share to:

Description

FHD 1U MPO/MTP Sliding drawer patch panel 72F-3 module type

MPO/MTP Patch panel is made of CRS Cold rolled steel, Designed for 19″ rack-mount cabinet. Rack mounted. holds up to 3 pcs Fiber Adapter Panels or 3pcs of HD MTP/MPO-LC/SC Cassette. It provides high density flexible system for managing fiber terminations, connections, and patching in datacenter application to maximizing rack space utilization and minimizing floor space.

Specification

Product Name FHD 1U MPO/MTP Sliding drawer patch panel Fiber Count Max.72 Fibers
Enclosure Type Sliding Drawer Mountable Material CRS Cold rolled steel
Installation Standard EIA 19″ Rack Dimensions (HxWxD) 1U*483mm*300mm
Compliant TIA/EIA-568-C.3 Advantage High Density Patching System

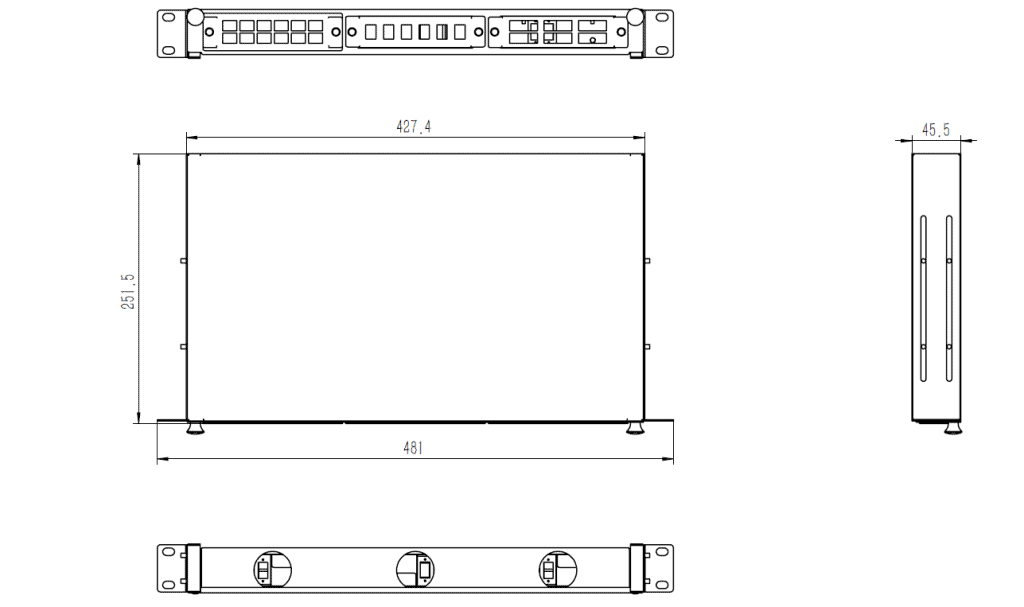

Panel Drawing

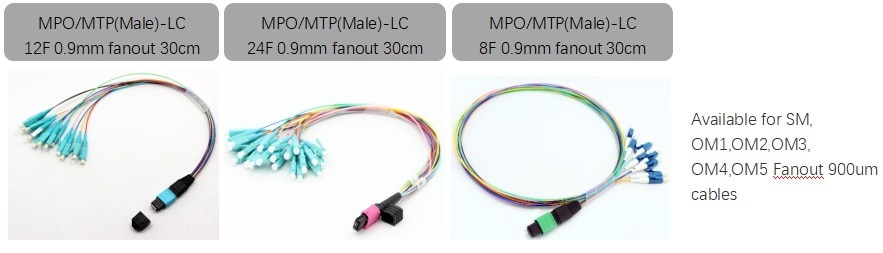

Relate Accessories

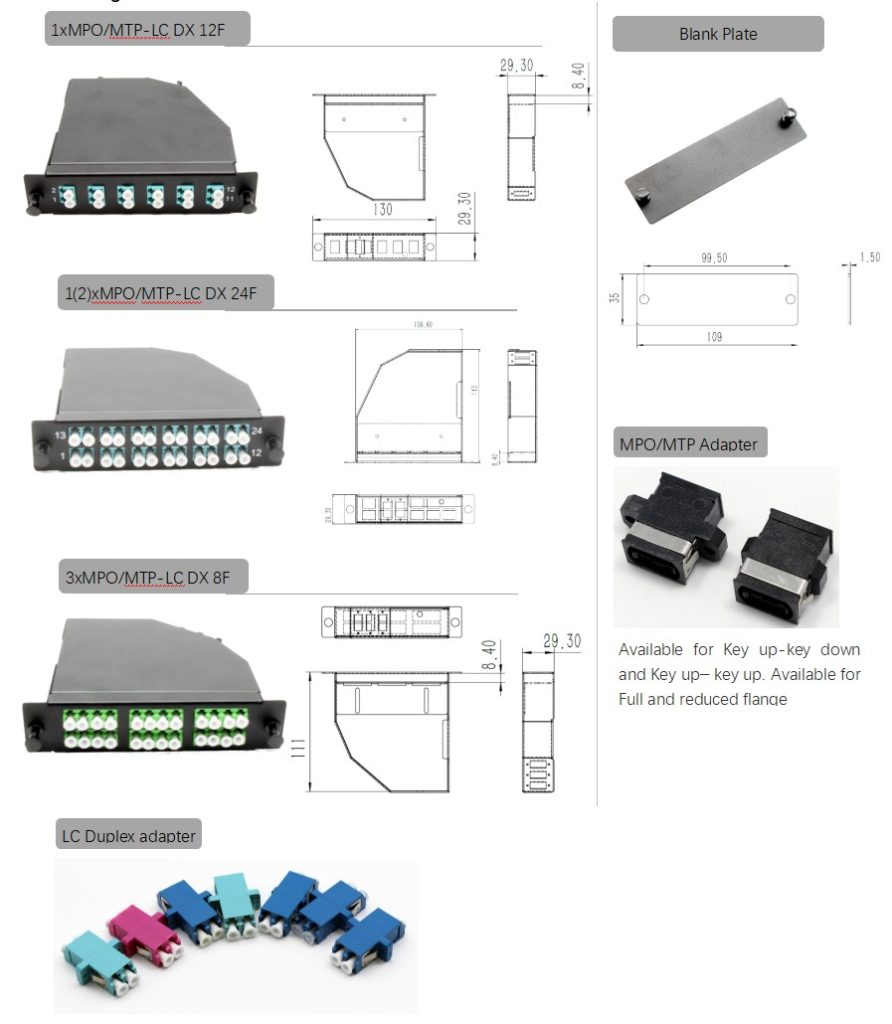

Matching  Cassette

Available for SM Blue, MM begie, OM3 Aqua, OM4 Magenta. Available for Full and reduced
