In today’s intricate environment of networking infrastructure, being organized and efficient are key factors to keep in mind. This is where a 24-port fiber patch panel becomes an indispensable component for network administrators and technicians. This is because it acts as the central point of termination for the fiber optic cables. It helps create an organized and safe environment for managing fiber optic cables.
The Functionality of a 24-port fiber patch panel

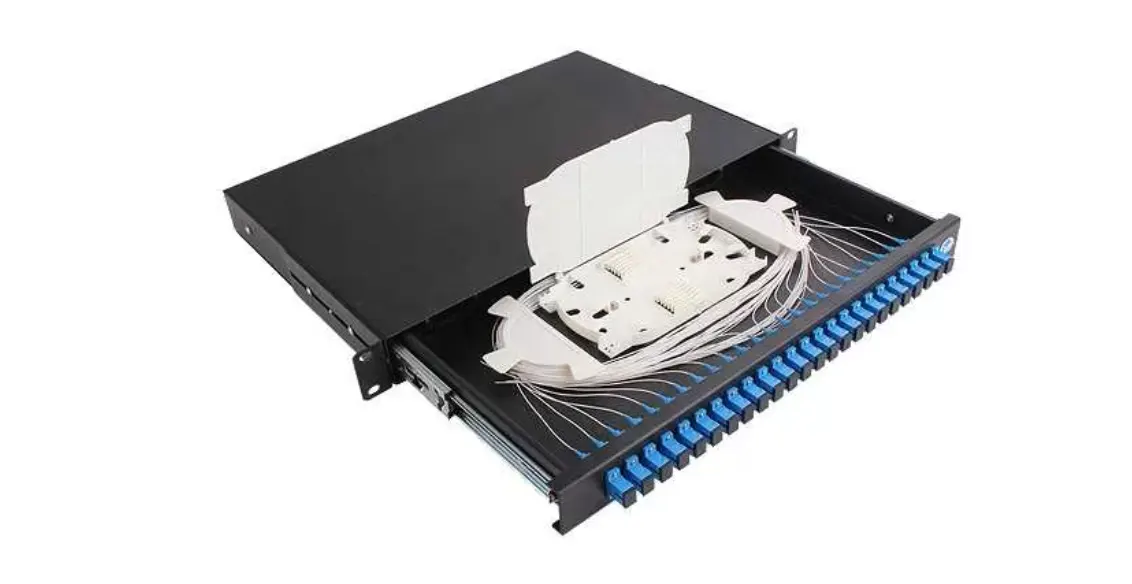

A 24-port fiber patch panel serves as the critical link between the main fiber backbone and the active network equipment, such as switches and routers. It acts mainly as the central place where all fiber runs end. There are several advantages in such an arrangement:
- Organization: It consolidates numerous fiber connections into a single, rack-mounted unit, eliminating cable clutter and making it easy to trace connections.
- Protection: The panel provides a secure enclosure for delicate fiber splices and connections, protecting them from dust, damage, and accidental disconnection.
- Flexibility: It allows for easy reconfiguration of the network. Instead of re-pulling long fiber cables, administrators can simply change the patch cords on the front of the 24-port fiber distribution panel.
The use of the 24-port fiber distribution panel will help network managers save much time during troubleshooting and ensure the stability of their network infrastructure.
Features and Configurations
When selecting a 24-port fiber patch panel, it is important to know the configurations that come with it, because you want to make sure that you choose a configuration that suits your network.
Panel Size in Rack Units (RU)
The panel size is expressed in terms of rack units (1U, 2U, etc.). A 24-port fiber patch panel is typically available in 1U or 2U formats to install in standard 19-inch server racks, with 2U units generally supporting higher port density or more cable management space rather than simply being a larger physical size. This decision is dependent on the density and space available within the rack.
Connector Types

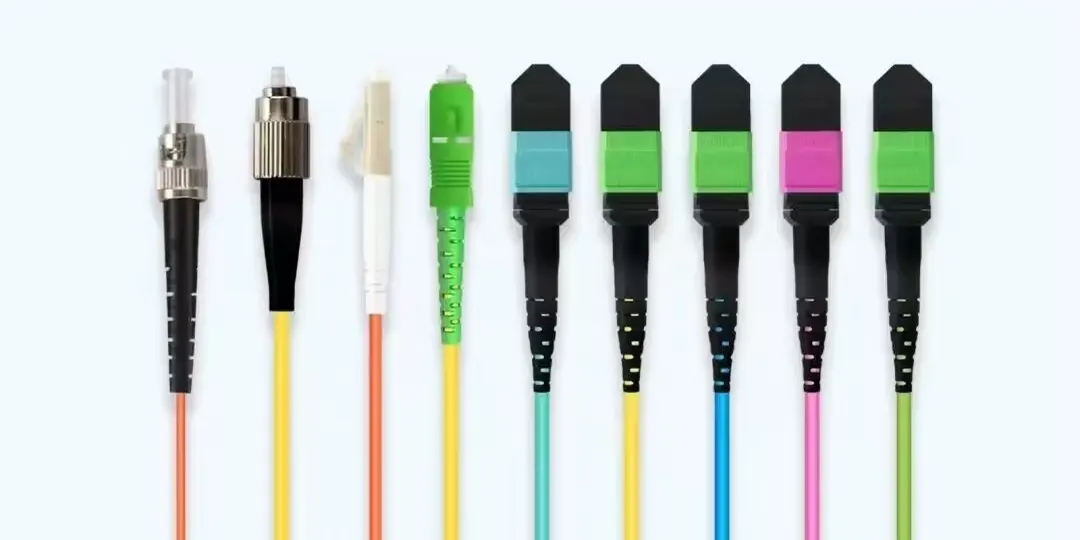

The front of the panel is populated with adapter ports. Connector type is an important specification. Some common connector types are:
- LC Connector: Small form factor connector, highly popular in dense installations.
- SC (Subscriber Connector): A larger push-and-pull connector that is very durable.
- MPO/MTP: Multi-fiber connector designed for high-speed parallel optics (40G, 100G).
Because LC adapters are roughly half the size of SC adapters, the same 1U footprint that holds 12 SC duplex adapters (24 fibers) can typically hold 24 LC duplex adapters (48 fibers). The actual fiber count of a “24-port” panel therefore depends on which adapter type and cassette configuration is installed.
Fiber Mode
It is critical to match the panel to the fiber type in your network.
- Single-Mode (SM): By industry convention, typically utilizes yellow-colored cables, meant for long-distance transmissions.
- Multimode (MM): Uses aqua-colored OM3/OM4 or orange-colored OM1/OM2 cables, meant for short distances in buildings or campuses.
The inner structure of a 24-port fiber patch panel needs to be compatible with the fiber type to avoid any signals being lost.
Installation and Management Best Practices
Proper installation is key to unlocking the full potential of a 24-port fiber distribution panel. A well-installed panel ensures not only a clean aesthetic but also the longevity and performance of the fiber links.
Planning and Labeling
Before installing the 24-port fiber patch panel, make sure to have a plan. You should label all the ports in the panel and those in the cables at the other end. A little bit of effort here will save you hundreds of hours when you try to troubleshoot the problem.
Cable Management
Utilize the built-in cable management features. All panels have either spools or trays where extra length of fiber pigtail is kept and where the patch cables can be managed. Good cable management ensures that no sharp turns that would lead to signal loss are made.
Maintaining Polarity
With duplex fiber cable (transmitting and receiving fibers separated), polarity becomes very important. In order for the 24-port fiber patch panel to have the correct polarity, the Tx (transmit) side of one end of the cable needs to be connected to the Rx (receive) side on the other end of the cable.
Enhancing Stability for AI and High-Performance Data Transmission
The rise of AI demands massive, zero-loss data transfers, making the physical stability of a 24-port fiber patch panel an absolute necessity. Optical fiber connections are highly susceptible to stress and bending, which may result in the loss of signals. The solid panel ensures the safety of these connections, while MPO/MTP designs (our UHD range) ensure that multi-fiber connections vital for 40G, 100G, and 400G performance are secured.
- Protects Fragile Fiber Connections: The strong case protects the fragile optical fiber connections from the effects of stress and bending that may cause the loss of signals.
- Secure Multi-Fiber MPO Connections: Panels made specifically for the MPO/MTP connectivity ensure that the multi-fiber connections critical for 40G, 100G, and 400G performance are safe.
- Maintains AI Data Integrity: By ensuring that the high-speed lanes are stable, the panel guarantees that the data integration is smooth.
Conclusion
In summary, the 24-port fiber patch panel serves as the strategic nerve center of a reliable optical network, ensuring a safe and versatile platform on which fast systems can perform with efficiency and be ready for further developments related to technology. If you would like to develop a more robust and scalable infrastructure, then feel free to subscribe to our brand in order to learn about new industry trends and top-quality fiber optic products. You can browse through our comprehensive product range right now to get access to premium patch panels and armored trunk cables.
