It’s a kind of Pro-connectorized FTTH patch cord assembly with OMC’s Own Patent Bullet SC APC connecter , Mini SCAPC waterproof connector and G657A2 Aerial self supporting 2×5.2mm FTTH LSZH Drop cable.
This Bullet SCAPC connector can be threaded though a Pipe with Inner Diameter>6mm. This is a last cable in FTTH project. It will be used between FAP box，FTB，FDB， Fact plate and ONU/ONT tec.
With easy accessibility to the fiber and simple installation, This kind of FTTH drop patch cable can be directly connected to the housing rooms.
Optical Specifications
| Connector |
Mini IP(SC)-Bullet SC |
Polish |
APC-APC |
| Fiber Mode |
9/125μm, G657A2 |
Jacket Color |
Black |
| Cable OD |
5.2(±0.2)*2.0(±0.1) mm |
Wavelength |
SM:1310/1550nm |
| Cable Structure |
Simplex |
Jacket Material |
LSZH |
| nsertion loss |
≤0.3dB(IEC Grade C1) |
Return loss |
SM APC ≥ 60dB(min) |
| Operation Temperature |
-10 ~ +70°C |
Install&Storage temperature |
-40 ~ +70°C |
End-face Quality
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
25 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
OMC’s Own Patent Bullet SCAPC connector
| Pulling Eye Force |
150N-200N |
| Bullet SC Connector cap Material |
SUS304 |
| Boot |
3.0mm |
| Drop cable |
Round cable:3.0mm
Flat cable:2x3mm;2x.5.0mm |

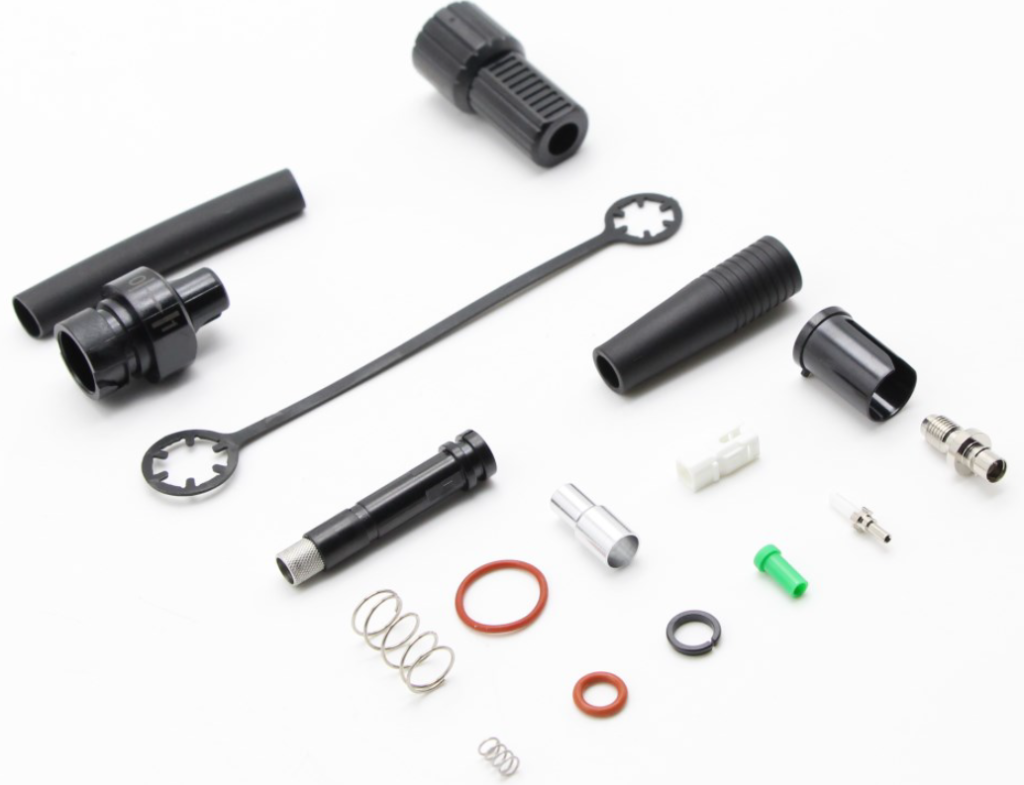

Mini IP (SC APC) Connector
| Item No. |
Description |
| Mini IP (SC/APC) Connector |
SC/APC dust cover black |
| SC/APC outer housing black |
| SC/APC boot black |
| Drop Cable |
Found cable:3.0mm-5.0mm Flat cable: 2x3mm 2x.5.0mm |
| Housing Component |
Fastconnect outer housing in black |
1F 2×5.2mm Aerial self supporting FTTH Drop Cable
FTTH outdoor Aerial Drop Cable uses Fig 8 flat structure, whose optical fiber unit is positioned in the center. One stranded steel message wire, Two parallel GFRP strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. Fig 8 FTTH Drop cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables. With small diameter, water-resistant, soft and bendable characteristics, it’s easy to deploy and maintenance.
| Item |
Contents |
Unit |
Value |
| Optical Fiber |
Fiber count |
/ |
1(single mode) G657A2 |
| Strength member |
Material |
/ |
GFRP |
| Diameter |
mm |
0.5 |
| Messenger wire |
Material |
/ |
stranded galvanized steel wire |
| Diameter |
mm |
(7*0.33mm)-1 |
| Outer jacket |
Diameter |
mm |
2.0 x 5.3 mm / Φ±0.2mm |
| Material |
/ |
LSZH with UV / ≥0.4mm |
| Color |
/ |
Black |
| Tensile performance |
Short term |
N |
600 |
| Long term |
N |
300 |
| Crush |
Short term |
N/100mm |
2200 |
| Long term |
N/100mm |
1000 |
| Min. bending radius (without messenger) |
mm |
Static: 20mm; Dynamic: 40mm |
| Life time |
Year |
25 |
| SPAN |
Meter |
60 |
| Cable weight (Approx.) |
kg/km |
22± 10% kg/km |
Optical and Mechanical Performance of the drop cable
| OPTICAL CHARACTERIZATION OF CONNECTOR AND CABLE |
| Testing items |
Standard |
Data request |
Remark |
| IL(Bullet SC ) |
Telcordia GR-3120 2.4.1 |
IL<=0.4dB Max |
|
| IL(Mini IP SC ) |
Telcordia GR-3120 2.4.1 |
IL<=0.4dB Max |
|
| RL(Bullet SC ) |
Telcordia GR-3120 2.4.1 |
RL>=60dB Min |
|
| RL(Mini IP SC ) |
Telcordia GR-3120 2.4.1 |
RL>=60dB Min |
|
| G657A.2 cable |
IEC 60793-1-40 |
1310nm<0.35dB,
1550nm<0.21dB |
|
| cable Thermal aging |
Telcordia GR-3120, 4.2.1.1 |
Temperature: 85°C
Time: 168 h (7 days) |
cable Attenuation<0.01dB change |
| CONNECTOR AND CABLE ENVIRONMENTAL TESTS |
| Testing items |
Standard |
Data request |
Remark |
| IP68 water protection |
Telcordia GR-3120, 4.2.4 |
Depth: 10ft Time: 3h |
TICW can do it in 1m water deepth Only. |
| Thermal aging |
Telcordia GR-3120, 4.2.1.1 |
Temperature: 85°C
Time: 168 h (7 days)
ConnectorIL≤0.1dB change |
Connector’s IL≤0.1dB change |
| Thermal Cycle Test |
Telcordia GR-3120, 4.2.1.2 |
Thermal cycling: -40°C a +75°C
Number of cycles: 21
Time: 168 h (7 days)
ConnectorIL≤0.1dB change |
Connector’s IL≤0.1dB change |
| CONNECTOR MECHANICAL TESTING |
| Testing items |
Standard |
Data request |
Remark |
| Mini SC 头 |
GR-3120, 4.3.3 |
Angle 0°
Load 147N Time 60s
Objective 0.15 attenuation change |
Connector’s IL≤0.15dB change |
| Bullet SC 头 |
GR-3120, 4.3.3 |
Angle 0°
Load 200N Time 60s
Objective 0.15 attenuation change |
Connector’s IL≤0.15dB change |
| MECHANICAL TESTING OF CABLE Only |
| Testing items |
Standard |
Data request |
Remark |
| Tension Resistance |
IEC-60794 1-21 E1 |
Load: 600N, 10min
measurement uncertainty: 0.01 dB |
Cable Attenuation change about 0.01dB |
| Crush |
IEC-60794 1-21 E3: |
Attenuation increment ≤0.1dB, @1550nm |
Cable Attenuation change 1550nm≤0.1dB |
| Impact |
IEC-60794 1-21 E4: |
According to specifications 1J, R=12.5mm
Attenuation increment ≤0.1dB, @1550nm |
Cable Attenuation change 1550nm≤0.1dB |
| Repeated Bending |
IEC-60794 1-21 E6: |
Angle ± 90°
Number of cycles: 100
Load: 150N
Attenuation increment ≤0.1dB, @1550nm |
Cable Attenuation change 1550nm≤0.1dB |
| Torsion |
IEC-60794 1-21 E7: |
Angle ± 180°
Number of cycles: 10
Load: 150N
Attenuation increment ≤0.1dB, @1550nm |
Cable Attenuation change 1550nm≤0.1dB |
Application-Bullet SC APC connector
1, Suit for
Pipe with Inner Diameter>6.5mm
R>95mm
2, How to thread though Pipe in wall?
3, How to Assembly it in FTTH construction site?

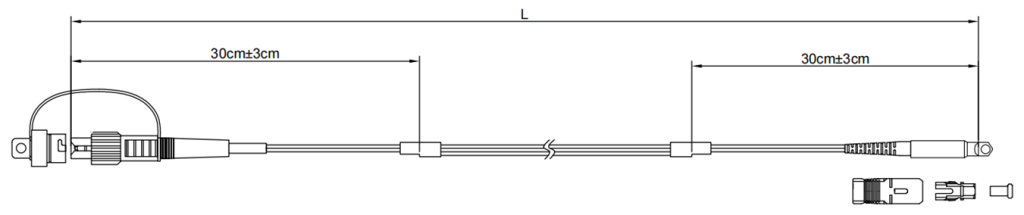

Length Tolerance
| Overall Length(L) (m) |
length of tolerance (cm) |
| 0<L<1 |
+5/-0 |
| 1<L<10 |
+10/-0 |
| 10<L<40 |
+15/-0 |
| 40<L |
+0.5% x L/-0 |
OEM Services
1.Cable color, printing word, material of cable jacket, connector’s color
2.OEM Label, Identify ring, cable’s label，box, shipping marks
3.Different quality Level.
