The LC Uniboot cable assemblies utilizes a special “round duplex” cable that allows duplex transmission within a 4.5mm OD Uni-tube cable, At the same time, The Polarity Switchable LC connector with 5.0mm boot is assembled on the cable.
OMC’s LC uniboot fiber cable assemblies offers a Polarity Switchable LC in the Data center and ODN project. The 4.5mm OD big indoor cable keeps a strong tensile and good protection for fibers in it.
OMC’s LC Uniboot cable assemblies offer the best solution for high-density applications, data centers, interconnect and cross connector, private networks and premise installations.
Optical Specifications
| Fiber Connector |
Uniboot LC 5.0mm boot |
Fiber Type |
SM:Yellow/Blue/White;
OM1&OM2: Orange;
OM3:Aqua;
OM4:Aqua/Violet/ Magenta |
| Cable OD&Jacket |
4.5mm LSZH( CPR Certificated) |
Fiber Counts |
2 Fibers |
| Insertion Loss |
≤0.3dB(IEC Grade C)
≤0.12dB(IEC Grade B) |
Return Loss |
SM UPC ≥ 50dB(min)
SM APC ≥ 60dB(min)
MM PC ≥ 35dB(min) |
| Pull-out Force |
100N |
Durability |
500 Cycles |
| AB Polarity Switchable |
Available |
Operating Temperature |
-40 to + 85°C |
LC Uniboot Connector with 5.0mm Boot
Polarity Switchable uniboot LC connector with Chinese independent intellectual property rights. Meet and Compatible with many International Standard
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
LC Ferrule
Perfect match with Standard LC ferrule, No need to develop special LC ferrule flange, Save cost
High quality SM Ceramic ferrule, Good concentricity<0.5um
High quality MM Ceramic ferrule, Good concentricity<4.0um

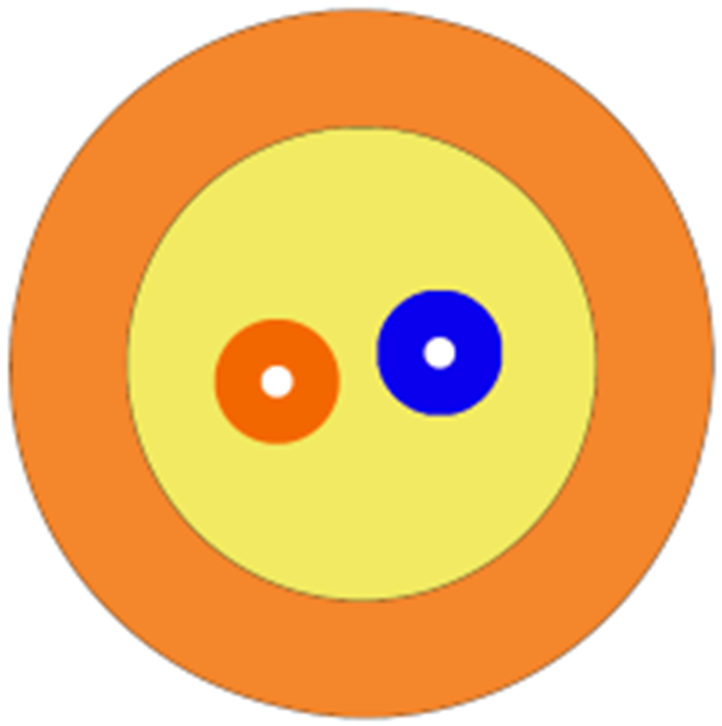

4.5mm OD Cable
G652D,G657A1,G657A2/B2,G657B3,OM1,OM2, OM3, OM4, OM5 Fibers
4.5mm OD Uni-tube cable; PVC (Riser/OFNR)，LSZH，Plenum (OFNP) Jacket materials. UL or CPR Certificated

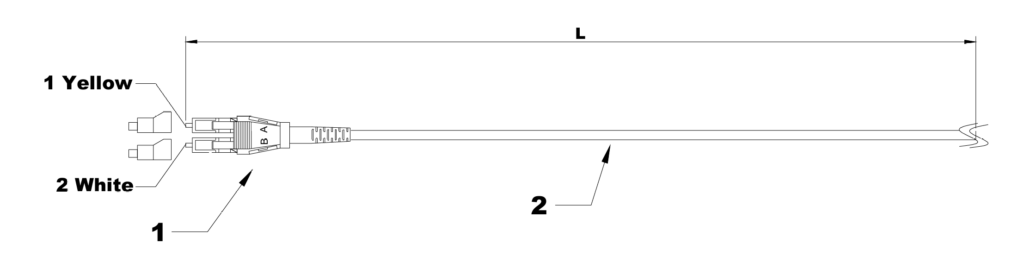

Length Tolerance
| Overall Length(L)(m) |
length of tolerance(cm) |
| 0<L<1 |
+5/-0 |
| 1<L<10 |
+10/-0 |
| 10<L<40 |
+15/-0 |
| 40<L |
+0.5% x L/-0 |

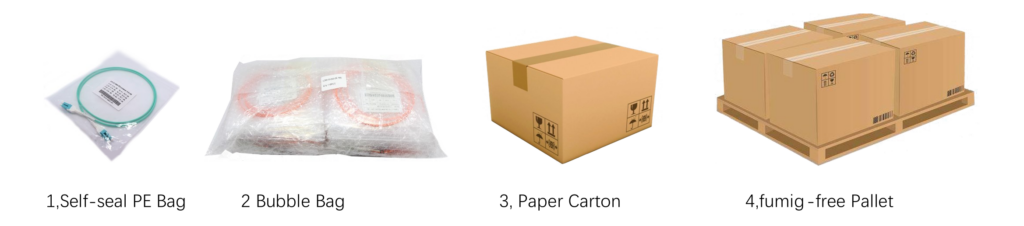

Package
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.
