| Spec items. |
Single mode (APC 8-degree polished) |
Multimode (PC Flat polish) |
| Insertion loss (MTP
(IEC 61300-3-34) |
Standard loss：≤0.75dB(max), ≤0.50dB(Typical)
Elite loss：≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss：≤0.6dB(max), ≤0.50(Typical)
Elite Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Insertion loss (LC/SC/FC/ST)
(IEC 61300-3-6) |
≤0.3dB |
≤0.3dB |
| Return loss(MTP) |
≥60dB（8degree polishing） |
≥25dB |
| Return loss(LC/SC/FC/ST) |
APC≥60dB; UPC≥50dB |
≥35dB |
| Durability |
<0.3dBtypical change, 200 matings |
| Interchangeability |
≤0.2dB |
| Tensile strength |
>70N |
| Operating Temperature |
-40 to + 85°C |
Products Materials
| Connector |
Reference |
Housing Details |
| MTP Single mode |
IEC 61754-7 |
SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Elite MTP) |
| MTP Multimode |
IEC 61754-7 |
OM3&OM4 PC: Aqua connectors+black boot (Standard Loss&Elite MTP) |
IEC Straight IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3

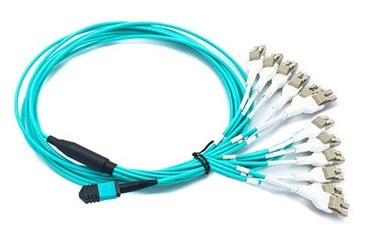

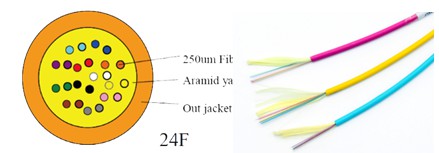

Cable Parameters-24F Microfiber cable
| Fiber Count |
OD(mm) |
Minimum allowable
Tensile Strength (N) |
minimum allowable
Crush Load(N/100mm) |
Minimum Bending
Radius(MM) |
| 24 |
3.0±0.15 |
Short-term: 180；
Long-term: 90 |
Short-term: 500；
Long-term: 150 |
Static：10D
Dynamic：20D |
Products Details

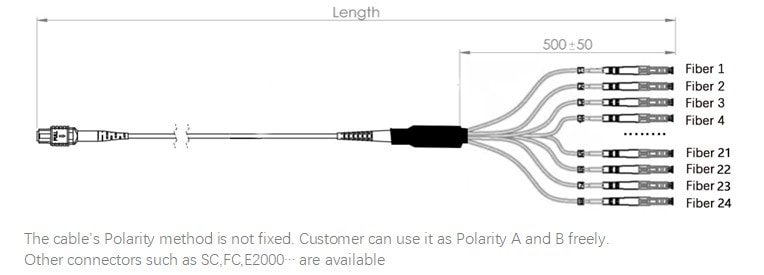

Type 1
MTP –24 x LC Simplex structure
Fanout 2.0mm or 0.9mm OD leg.
Fanout length: 0.5m
MTP can be Female and Male
Main cable OD:3.0mm

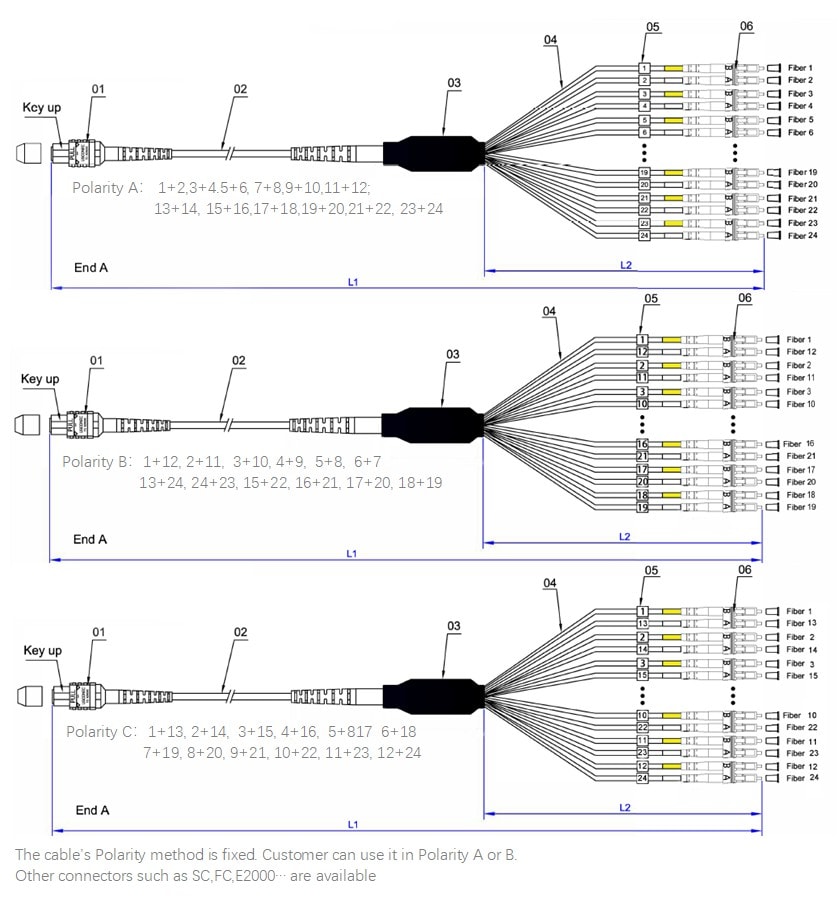

Type 2
MTP –12 x LC Duplex structure
Fanout 2.0×4.1mm/0.9mm OD leg.
Fanout length: 0.5m
MTP can be Female and Male
Main cable OD:3.0mm

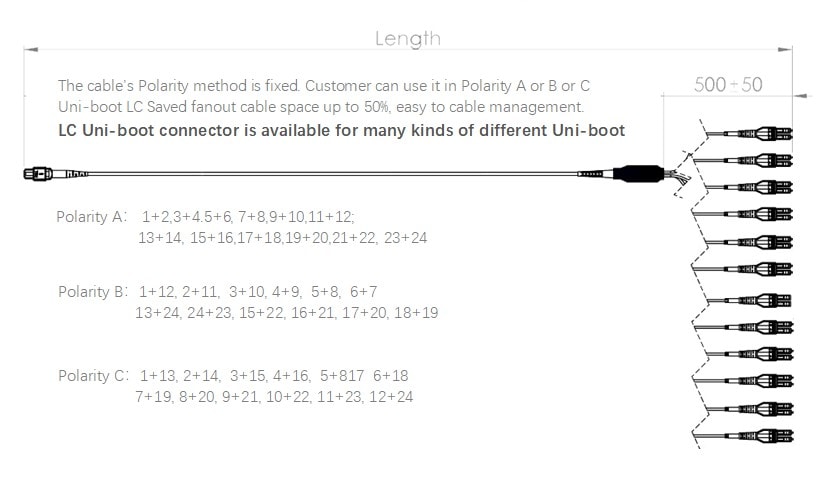

Type 3
MTP –6 x Uni-boot LC structure
Fanout 2.0mm/3.0mm OD leg.
Fanout length: 0.5m
MTP can be Female and Male
Main cable OD:3.0mm
LC connector is available for many kinds of different
Uni-boot LC connectors
Push Pull Tab For USCONEC MTP
MPO End-Face 3D Interference Index
| Item (IEC-61300-3-30) |
Minimum |
Maximum |
| Radius of curvature (mm) |
ROC-X(ABS) |
2000 |
\ |
| ROC-Y(ABS) |
50mm |
\ |
| Angle |
Angle-X |
-0.2° |
-0.2° |
| Angle-Y |
APC |
7.85° |
8.15° |
| PC |
-0.2° |
-0.2° |
| Fiber height (nm) |
1000nm |
3500nm |
| Max.DH.All Fiber: |
-300nm |
300nm |
| DH.Adj: |
-300nm |
300nm |
| DH.Ave Fiber: |
-300nm |
300nm |
| Core Dip: |
SM |
N/A |
N/A |
| MM |
-200nm |
300nm |
LC/SC/FC/ST End-Face Geometry 3D Interference Index
| Items |
Connector |
PC End-face |
APC End-face |
| Radius of Curvature |
SC/FC/ST |
10~25 mm |
5~12 mm |
| LC/MU |
7~25 mm |
5~15 mm |
| Apex Offset |
≤50 um |
| Fiber Spherical Height |
+/- 100 nm |
| Angular Offset |
—— |
8°± 0.5° |
End-face Quality (LC/SC/FC/ST SM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
25 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
End-face Quality (LC/SC/FC/ST MM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 65 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
65 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
Application

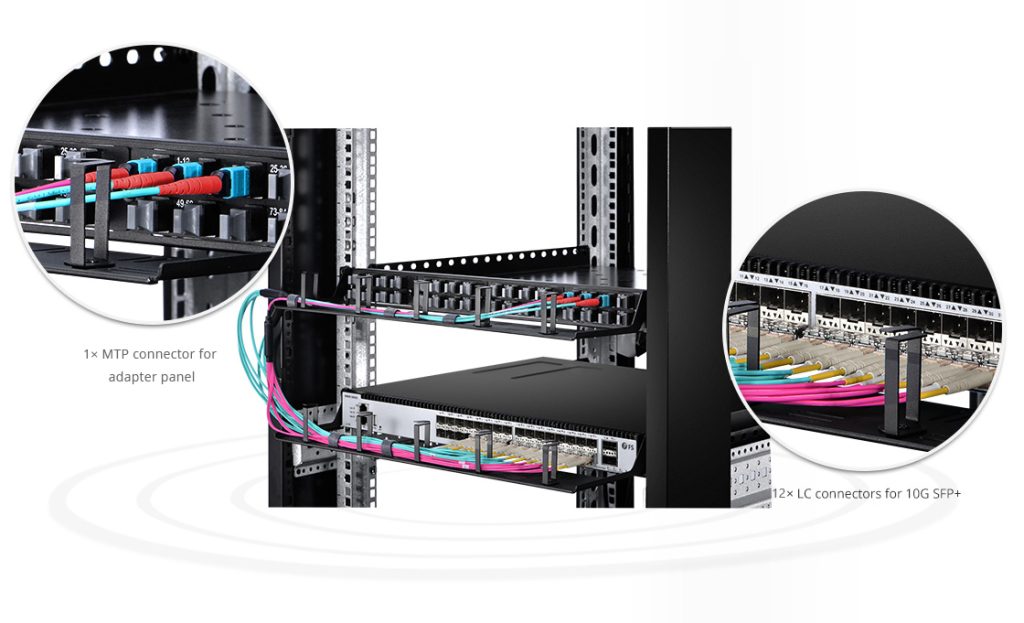

24F MTP- LC/SC/FC/ST Straight harness Cables designed for 100GBASE-SR10 CXP/CFP Interconnect Solution,100GBASE-LR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications. This 24 Fiber harness cable is used for connecting (12) SFP+ into a MPO adapter panel and MPO trunk.
All of OMC’s MTP Connectors are from USCONEC. MTP Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
