LC Duplex Adapter with Removable Outer Shutter is equipped with hinged dust cover, also called auto shutter adaptor. It is also available for SC adaptors with flange or without flange. It is developed to couple and mate 4 LC connector plugs. Each LC adapter has receptacles on both ends to connect LC patch cords together. It has stainless steel mounting clips allowing it to be easily snapped into rectangular cut outs for duplex SC mount.
Our range of high-quality LC adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body, metal clips or inbuilt clips.
OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
Features：
- TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
- Complies with IEC 61754-4, Flammability UL94 V-0 standard

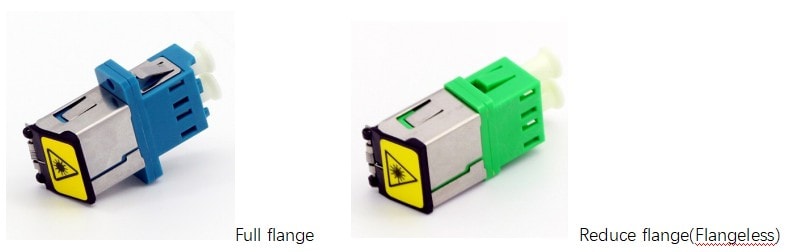

- Available in Flanged and Flangeless options
- Precision connection with sleeve
- Low insertion loss, High Return loss
- Good interchangeability and reliability
- Meet IEC and ROHS standards
- High precision of mechanical dimensions Accuracy
