FTTH fiber faceplate 4 cores FS-4B

Share to:

Description

4 ports Fiber socket/Fiber Face Plate

Fiber socket is an outlet that could be offer four,Eight fiber channel signals. It is used as a termination point for the drop cable to connect with patch cord in FTTH indoor application. It integrates fiber splice, termination storage and cable connection in one solid protection box.



 Features:

  • Material: ABS
  • It’s applicable for FTTH, FTTO and FTTD.
  • The clasp design of the cover reduces the installation strength.
  • Dust-proof design with IP45 Protection level
  • Compatible adapter: SC. FC. LC
  • The big-diameter wrapping trap in the socket guarantees the cable bending radius.

Specification

ITEM# Dimension(L×W×H mm) Max. capacity Remark
FS-4B 100*80*29 4-8F Wall mount or inside FTTH media box application

Standard accessories: heat-shrink splice sleeves, nylon tie, expansion screws.

Optional Accessories: SC/FC adaptor

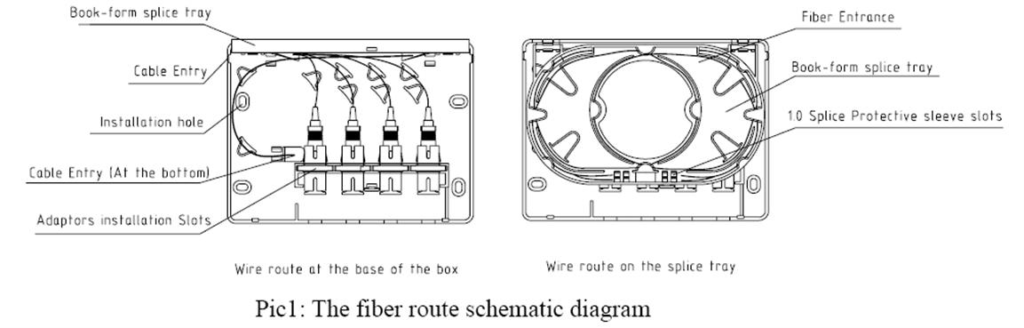

The fiber route and main components of the box



Application in FTTX.

1, In FTTO, fiber socket can installed in wall, on desk.

2, In FTTH, Fiber Socket can install in Family multimedia box.
