FTTH Fiber Access Terminal closure – OFATC-16B high density

Share to:

Description

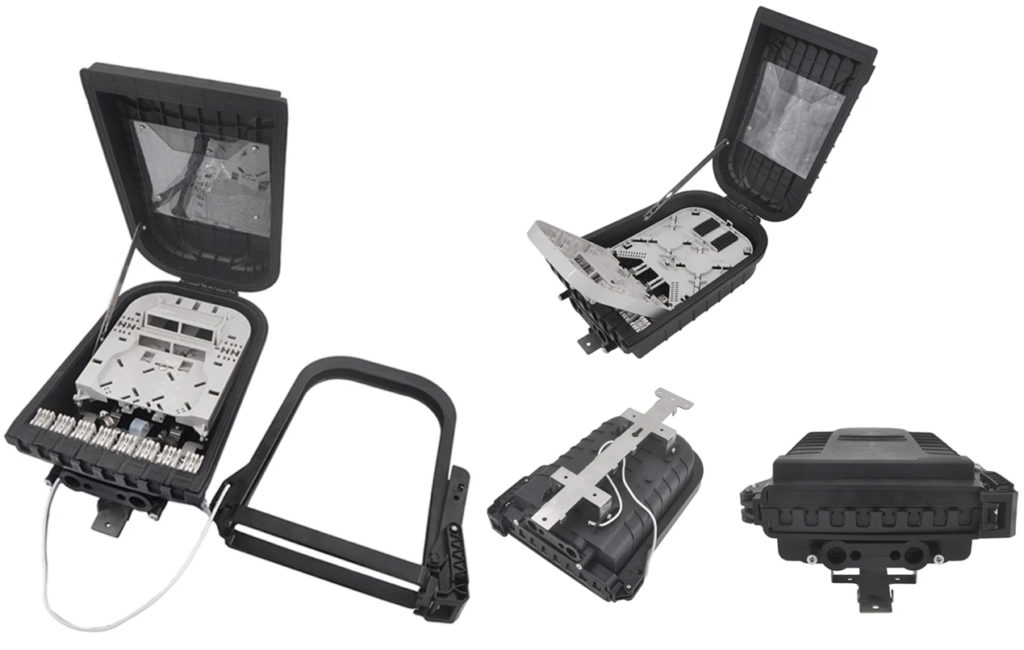

FTTH Fiber Access Terminal Closure- OFATC-16B provides a high density wall mounted or pole solution for next generation networks, which aims to provide and manage fiber splitters in a limited space in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.



Features:

  • Water-proof design with IP-65 Protection level. Integrated with flap-up splice trays
  • 4 x Round Input port; 16 x Drop Cable output port
  • Impact test: IK10, Full rugged design
  • Plug-and-play installation, easy for maintenance and expansion Fiber bend radius control more than 40mm
  • 180 degree access with buckled lock structure.
  • 1*8 or 1*16 PLC Splitter can be installed in each splice tray as option.
  • Mechanical sealing structure and mid-span cable entry.

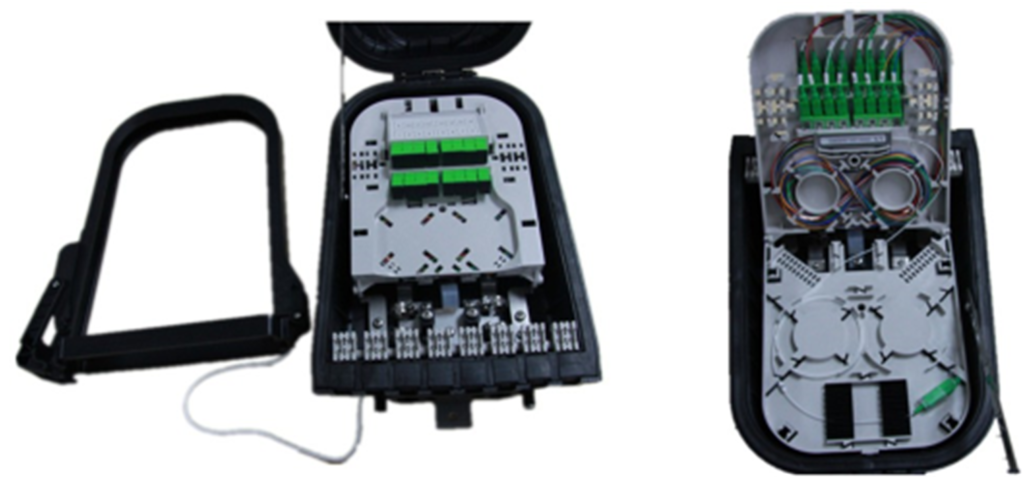

  • Rotatable and dis-mountable spice tray for easy splicing Wall mount and pole mount installation
  • Mechanical sealing structure and mid-span cable entry.
  • 16 ports cable entrance for drop cable
  • 16 adapter for drop cable patching



Specification



Material



Size



Max Capacity



Outlet Cable OD (mm)

Input largest cable OD (mm)

Color



PC+ABS

L*W*H(mm) 316*250*126 Splice 16 Fibers PLC Splitter 1×8/1×16

2x3mm



5-16mm



Black



Standard Accessories

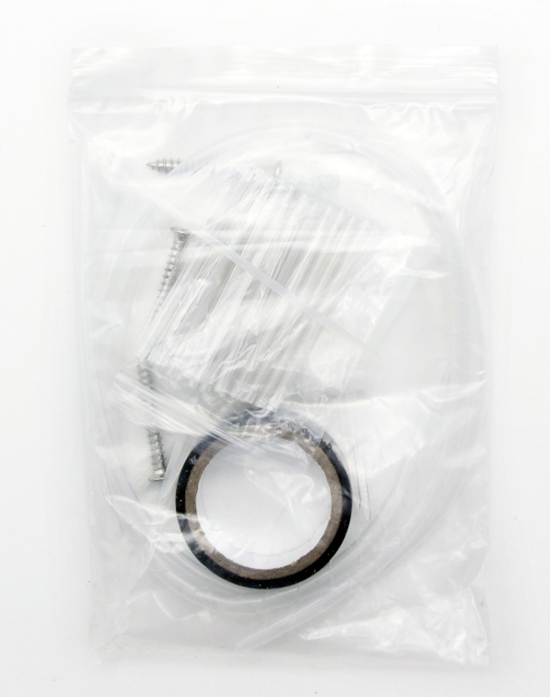

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, Adhesive Tape, PE tube

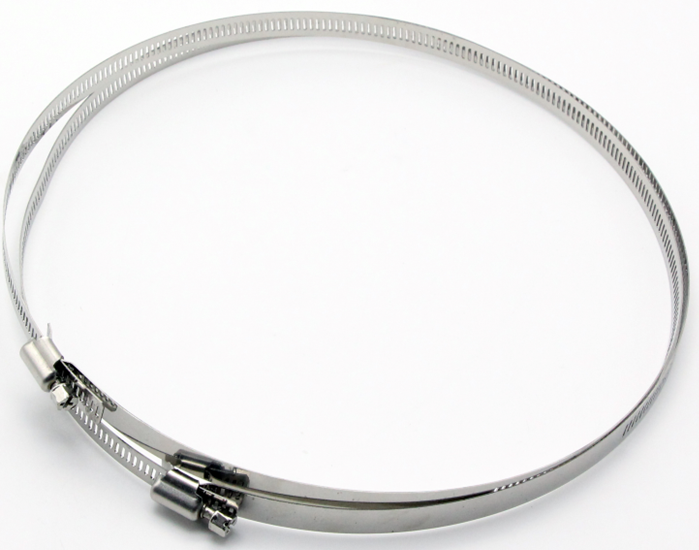

Optional Accessories:Pole ring



Application

Wall mounting and pole mounting installation FTTH pre-installation and filed installation

2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable
