FTTH Fiber Access Terminal closure – IFATC-16G

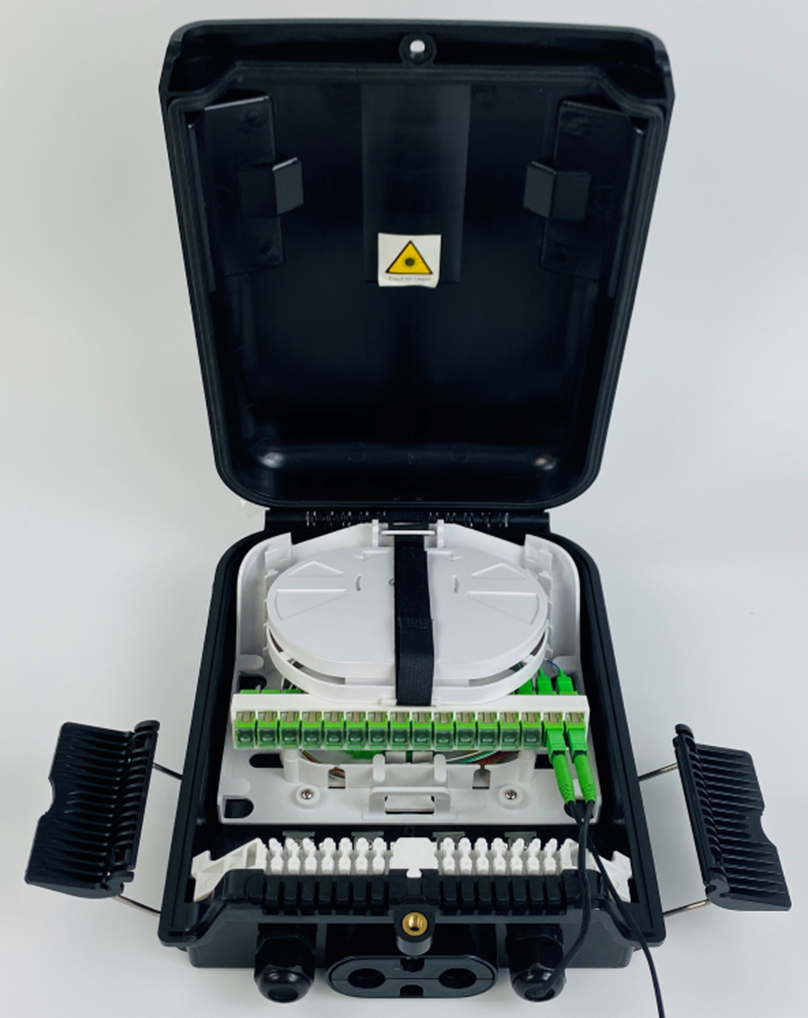

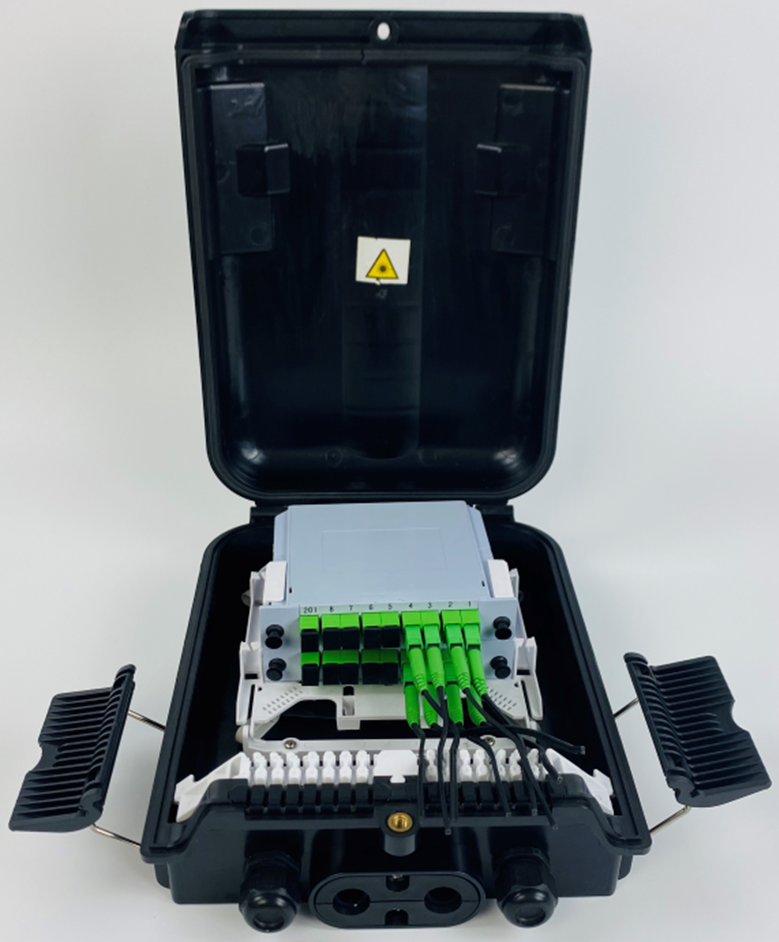

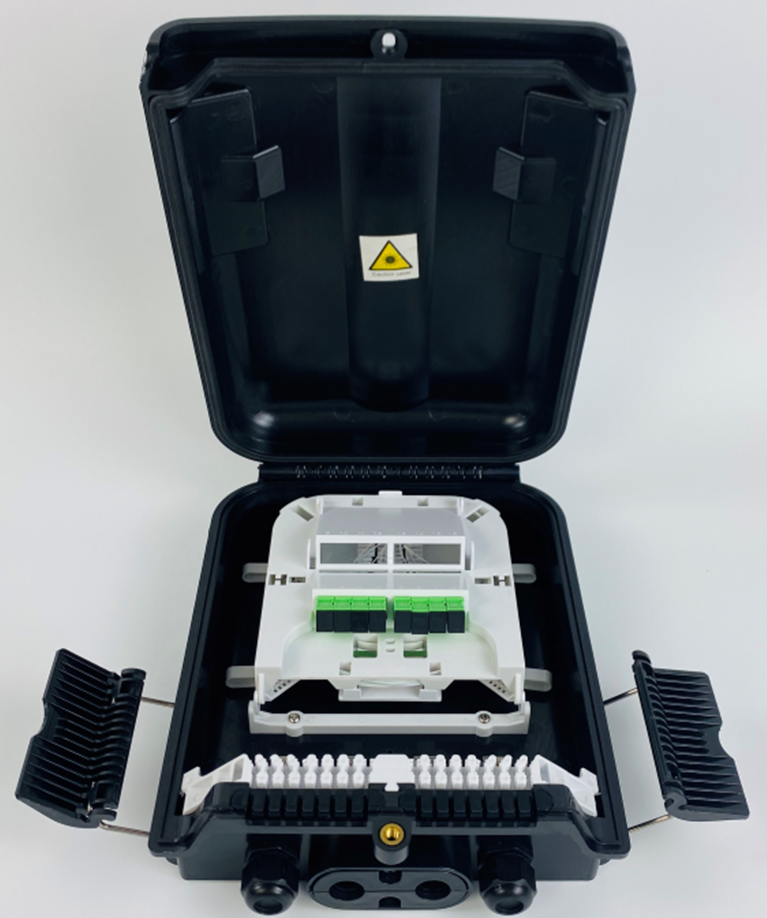

The FTTH Fiber Access Terminal box-IFATC-16G is used as a termination box for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building. It can offer 16 FTTH subscribers access points.

Features:

Total enclosed structure.
Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65/66。
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
Cable，pigtails，and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use

Share to:

Specification

Part No.: IFATC-16G-1

Configuration table	Wall mounting	Pole mounting installation
Size(mm)	29021082	29021082
Material	PC/ABS	PC/ABS
Color	black	black
Splice Capacity	12F	12F
out put ports	16: drop cable 23mm or 25mm cable
Into the largest cable diameter(mm)	1 mid span port(Φ8-16mm); 2 cable gland port (Φ7-12mm)
Suitable PLC Splitter	1×8 or 1×16 Blockless type
Inner box size(mm)	30022095	300220115
Individual weight(kg)	1.22	1.32
Outer box size(mm)	500310460	600310460
Gross weight(kg)	12.9	13.9
Outer box capacity(pcs)	10	10

Part No.: IFATC-16G-2

Configuration table	Wall mounting	Pole mounting installation
Size(mm)	29021082	29021082
Material	PC/ABS	PC/ABS
Color	black	black
Splice Capacity	12F	12F
out put ports	16: drop cable 23mm or 25mm cable
Into the largest cable diameter(mm)	1 mid span port(Φ8-16mm); 2 cable gland port (Φ7-12mm)
Suitable PLC Splitter	1×8 or 1×16 Mini Plug-in module Type
Inner box size(mm)	30022095	300220115
Individual weight(kg)	1.21	1.31
Outer box size(mm)	500310460	600310460
Gross weight(kg)	12.8	13.8
Outer box capacity(pcs)	10	10

Part No.: IFATC-16G-3

Configuration table	Wall mounting	Pole mounting installation
Size(mm)	29021082	29021082
Material	PC/ABS	PC/ABS
Color	black	black
Splice Capacity	48F	48F
out put ports	16: drop cable 23mm or 25mm cable
Into the largest cable diameter(mm)	1 mid span port(Φ8-16mm); 2 cable gland port (Φ7-12mm)
Suitable PLC Splitter	1×8 or 1×16 Blockless type
Inner box size(mm)	30022095	300220115
Individual weight(kg)	1.34	1.44
Outer box size(mm)	500310460	600310460
Gross weight(kg)	14.1	15.1
Outer box capacity(pcs)	10	10

Environmental requirement

Working temperature：-40℃～+85℃

Relative humidity：≤85%（+30℃）

Atmospheric pressure：70KPa～106Kpa

Main technical datasheet

Insertion loss：≤0.15dB

UPC return loss：≥50dB

APC return loss：≥60dB

Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of the box is no less than 2×10⁴MΩ/500V（DC）；IR≥2×10⁴MΩ/500V; The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V
