FTTH Fiber Access Terminal closure – IFATC-16D IP65 Indoor/Outdoor

Share to:


The FTTH Fiber Access Terminal box-IFATC-16D is used as a termination box for the feeder cable to connect  with drop cable in FTTx communication network system. The fiber splicing, splitting,  distribution can be done in this box, and meanwhile it provides solid protection  and management for the FTTx network building. It can offer 16 FTTH subscribers access points.



  •  Total enclosed structure.
  • Material: PC+ABS,wet-proof、water-proof、dust-proof、anti-aging, protection  level up to IP65/66。
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,  distribution…etc all in one.
  • Cable,pigtails,and patch cords are running through their own paths without  disturbing each other, micro type PLC splitter installation, easy  maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed by  expression port,easy for maintenance and installation.
  • Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

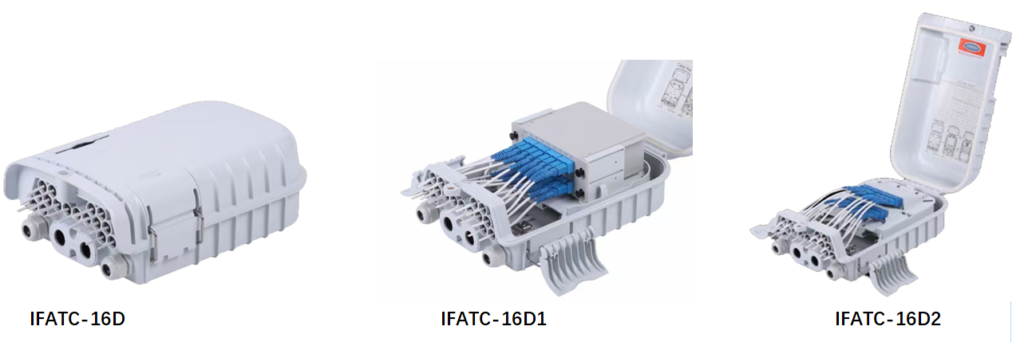

Model No. IFATC-16D Color Black, Grey White..
Capacity 16ports SC+24F Splice Protection Level IP65 Indoor/Outdoor
Material PC+ABS, ABS Flame retardant performance Non-flame retardant
Dimension(L*W*D,) 287x172x102mm Splitter Can be with 2×1:8 Plug in splitter or 1×1:16 plug-in Splitter
Input  Cable OD 1mid span(Φ14.5mm), 2cable gland(Φ7-12mm) Output cable OD 16: drop cable 2*3mm or <4.5mm round cable
Installation Method Wall&Pole mounted Insertion loss ≤0.2dB(1310nm & 1550nm)


Environmental requirement

Working temperature:-40℃~+85℃  Relative humidity:≤85%(+30℃)  Atmospheric pressure:70KPa~106Kpa


Main technical datasheet:

Insertion loss:≤0.2dB  UPC return loss:≥50dB  APC return loss:≥60dB


Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of  the box is no less than 2 ´104 MΩ/500V(DC);IR≥2´104 MΩ/500V, The voltage resistance between the grounding device,and the box and its metal

parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V



Optical Telecommunication System,

LAN,Optical fiber Communication System

Optical fiber broadband access network

FTTH access network

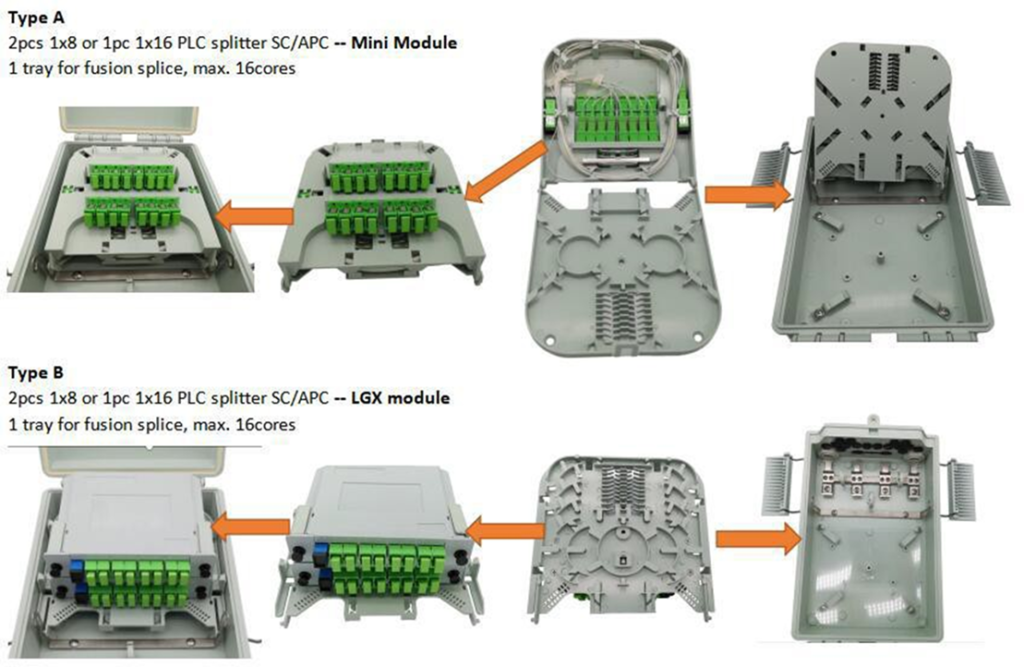

Internal Structure

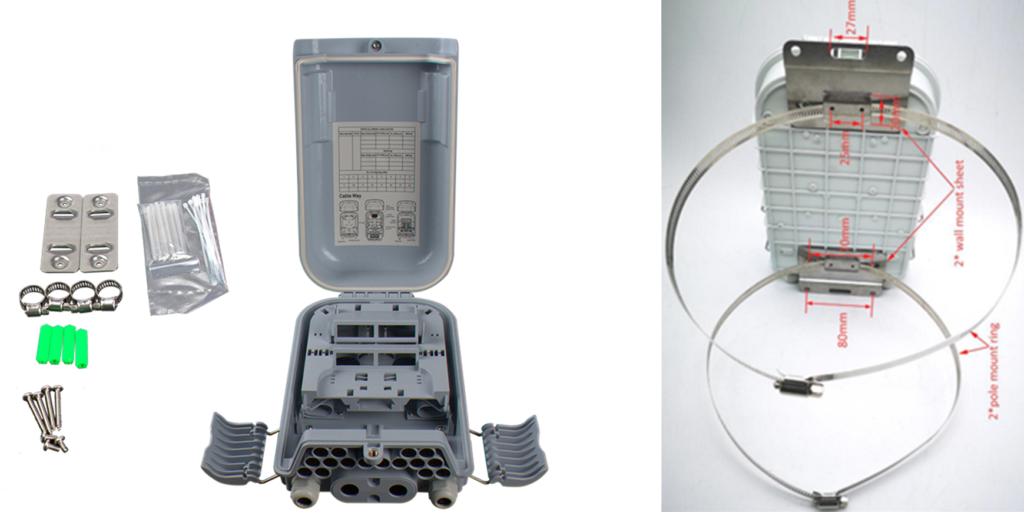

Standard Accessories:

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves,

hose clamp, cable tube, wreath, cover holder, rubber seal for cable entrance.


Optional Accessories: Pole ring



  1. Wall-mounted installation

Drill 4 holes over the wall based on the size,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.

  1. Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole
