Flex angle boot SC&LC patch cable

Share to:

Description

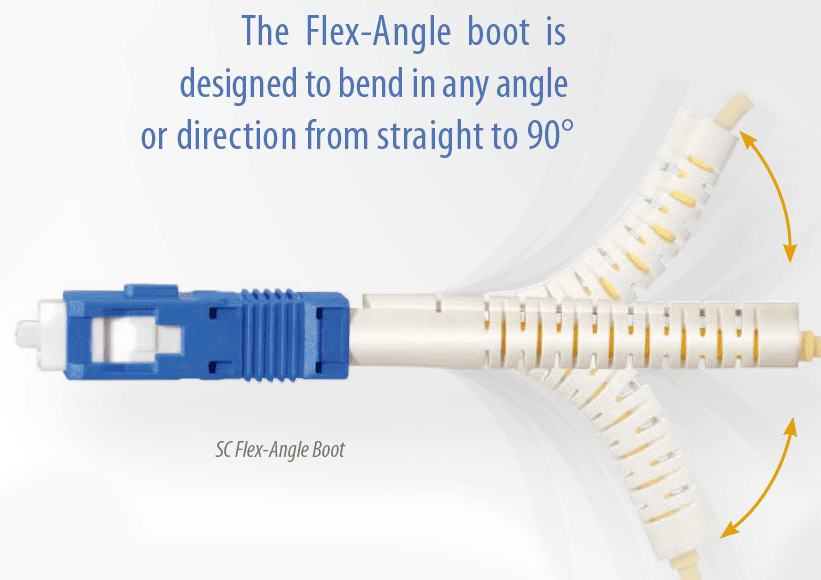

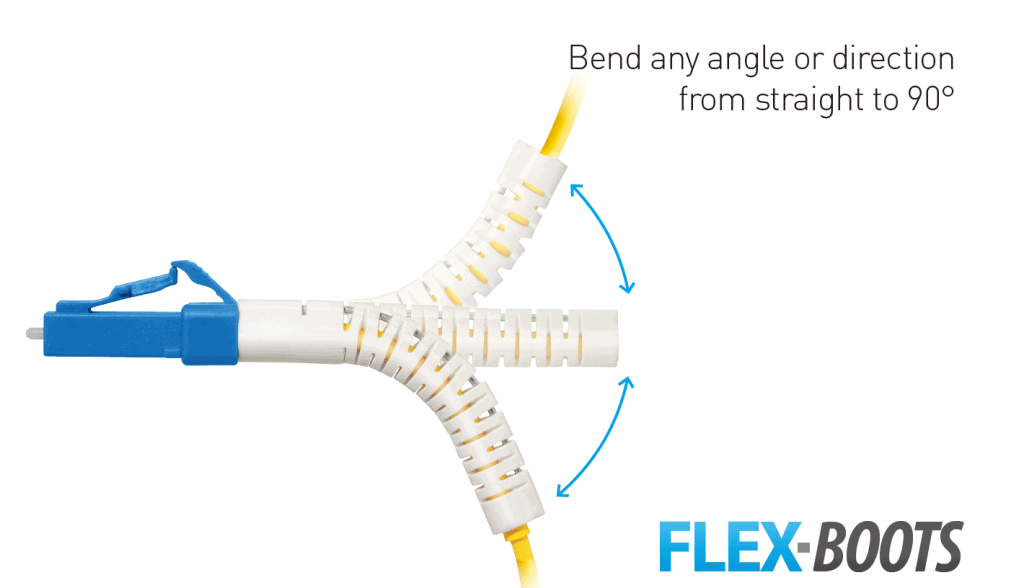

The Flex-Angle boot is designed to bend any angle or direction from straight to 90°. OMC flex angle boots for LC&SC fiber optic connectors are available on any single-mode or multimode patch cord. They are designed so the installer can pre-bend the boot into any direction or angle. This position is maintained for optimal network performance but, can be reshaped at any time or straightened for connector disconnect. This enables perfect installation of the connector in unique applications such as, tight constraint areas or high density environments. These fiber optic patch cords with LC&SC flex boots are ideal for cable management situations where additional fiber bend protection is desired.



Features

  • High quality zirconia ferrules.
  • Good repeatability and interchange.
  • Flame-retardant, rugged and durable jacket.
  • 100% optically tested for insertion loss to ensure high quality





Specification

Connector SC,LC Polish PC,UPC,APC
Fiber Mode 9/125μm, 50/125μm, 62.5/125μm, Jacket Color SM:Yellow/Blue/White;

OM1&OM2: Orange;

OM3:Aqua;

OM4:Aqua/Violet/ Magenta

 Available boot White 2.0mm/3.0mm Wavelength SM:1310/1550nm

MM:850nm

Cable Type Simplex& Duplex Jacket Material LSZH/PVC/OFNR/OFNP
Insertion loss 0.3dB(IEC Grade C) Insertion loss 0.12dB(IEC Grade B)
Return loss SM UPC ≥ 50dB(min)

SM APC ≥ 60dB(min)

MM PC≥ 35dB(min)

Interchangeability &Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C



Products Materials

G652D,G657A1,G657A2/B2,G657B3,OM1,OM2, OM3, OM4, OM5 Fibers

900um, 1.2mm,1.6mm,1.7mm,1.8mm,2.0mm,2.4mm,2.6mm,2.8mm OD cable

PVC (Riser/OFNR),LSZH,Plenum (OFNP)  Jacket materials

G652Dm G657A1,G657A2/B2,G657B3 Fibers

OD:1.2×2.5mm,1.6×3.3mm,1.7×3.5mm,1.8×3.7mm,2.0×4.1mm,2.4×4.9mm,2.6×5.3mm,2.8×5.7mm PVC (Riser/OFNR),LSZH,Plenum (OFNP)  Jacket materials

High quality SM Ceramic ferrule, Good concentricity<0.5um

High quality MM Ceramic ferrule, Good concentricity<4.0um

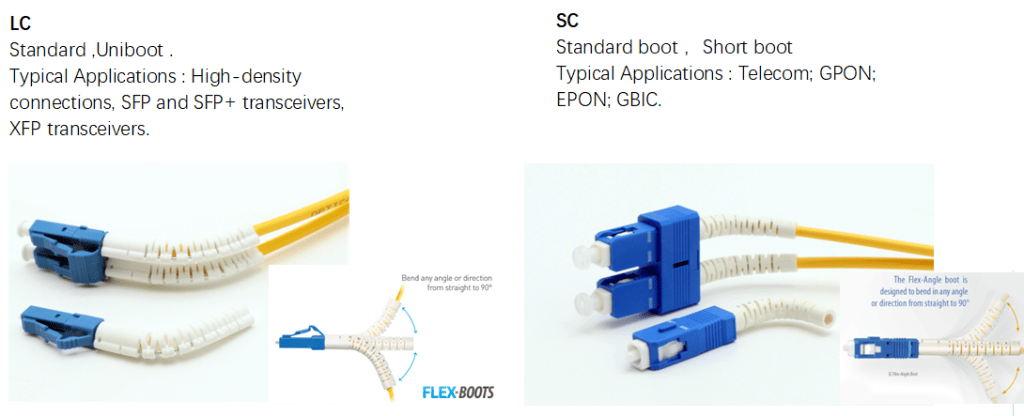

High quality Standard LC&SC connector with flexable Boot. Suitable for any Rack&ODF.

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.



Standard Compliance

  • TIA 604 (FOCIS)
  • TIA/EIA 492AAAE
  • IEC 61754
  • IEC 60793-2-10
  • IEC61300-3-35
  • YD/T1272.1-2003
  • RoHS, ISO9001 Compliant



Application

  • Data Center
  • Enterprise
  • Fiber to the X (FTTX)
  • LAN and WAN
  • CATV Network
  • Telecommunications Network



Geometric Specification (3D interferometer )

Items Parameter
Polishing PC APC
ROC SC 10 ~ 25 5 ~ 12
LC 7~ 25 5 ~ 12
Apex Offset ≤ 70
Fiber Spherical Height ±100
Angle ± 0.5 8 ± 0.5



End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0
