Fiber hot melt type Fast connector is a fusion splice on connector for 2mm and 3mm Round cable and 2.0*3.0 Bow type FTTH drop cable. Melting type fusion splice on connector uses mature melting technology, and transfers the traditional melting point from the Fiber Splice box or melting modular part to the inside of the connector.
Description
Specification
Optical Specifications：
| Item | Technical Parameters |
| Available connector type | SC UPC SM, SC APC SM |
| Cable Diameter | 2.0/3.0mm or 3.0×2 drop cable |
| Insertion loss | PC=0.3dB,UPC=0.2dB,APC=0.2dB |
| Return los | PC=40dB,UPC=50dB,APC=60dB |
| Repeatability | <0.1dB（1000times） |
| Interchangeability | <0.2dB |
| Tensile strength | 60N(6KGS) |
| Working temperature | -40℃-+80℃ |
Features:
Low insertion loss and back reflection loss
Ferrule end surface predoomed
Precision anti-rotation key and corrosion resistant body UL-rated plastic housing
Boots in a variety of colors
Telcordia style boots
Free-floating ceramic ferrule
Applications:
CATV
Active device termination Telecommunication networks Metro
Local Area Networks (LANs) Data processing networks Test equipment
Premise installation
Wide Area Networks (WANs)
Product Installation Tools：
Related Tools:
1, Fusion Fiber Splicer With SOC fixture for FUSION SPLICE-ON Connector splicing.
2, SOC Fixture to cable&Fiber Strip and Splice in splicer.
3, Fiber cleaver to cut the fiber of FUSION Splice-on Connector
4, FTTH Drop cable stripper, To strip the Bow type 2x3mm Drop cable
5, 0.9mm/2.0mm/3.0mm Fiber Cable Stripper. To Strip those round cable and bare fiber of 2x3mm Drop cable
6，Alcohol， For Fiber Clean after cut
7, Cleanroom Wipes, for Fiber Clean after Alcohol Cleaned

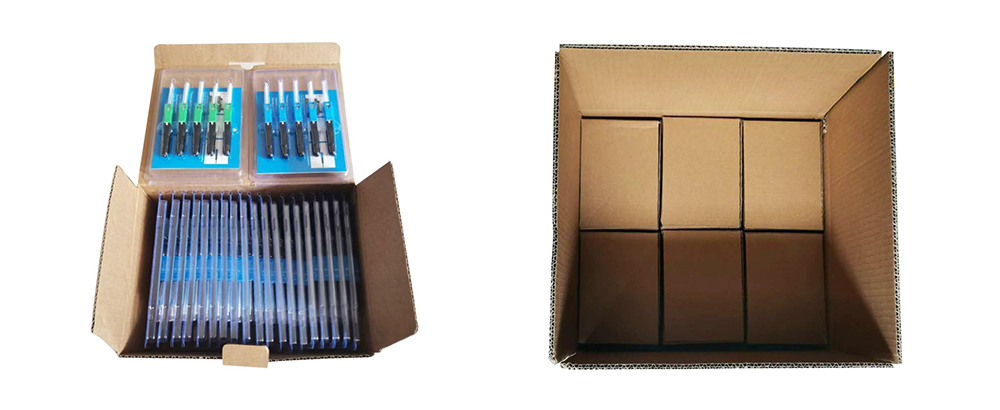

Package：
