FHD 1U 96F MPO&MTP-LC Patch panel

Share to:

Description

FHD 1U 96F MPO&MTP-LC Patch panel is made of CRS Cold rolled steel, Designed for 19″ rack-mount cabinet. Rack mounted. holds up to 4 pcs Fiber Adapter Panels or 4pcs of HD MTP/MPO-LC/SC Cassette. It provides 96F max high density flexible system for managing fiber terminations, connections, and patching in data center application to maximizing rack space utilization and minimizing floor space.

Specification

Product name FHD MPO&MTP-LC Rack mount patch panel Fiber Count Max.96 Fibers
Enclosure Type Rack Mountable Material CRS Cold rolled steel
Installation Standard EIA 19″ Rack Dimensions (HxWxD) 1U*483mm*250mm
Compliant TIA/EIA-568-C.3 Advantage High Density Patching System

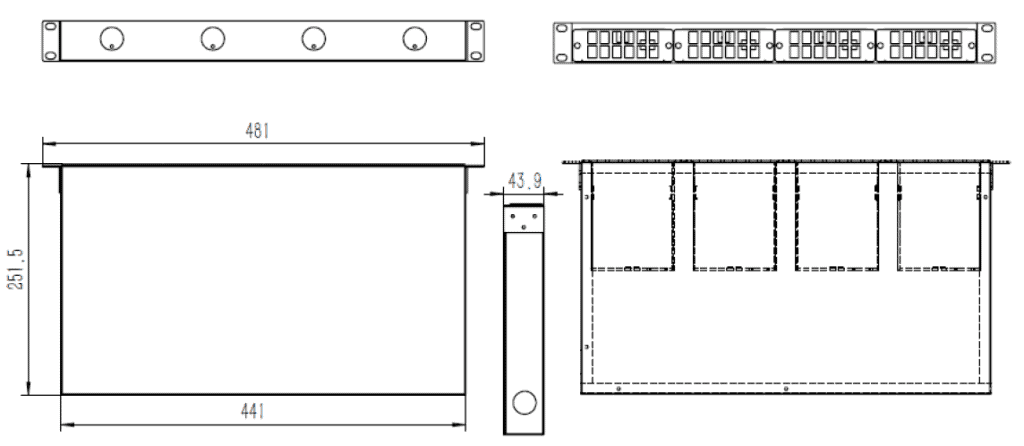

Panel Drawing

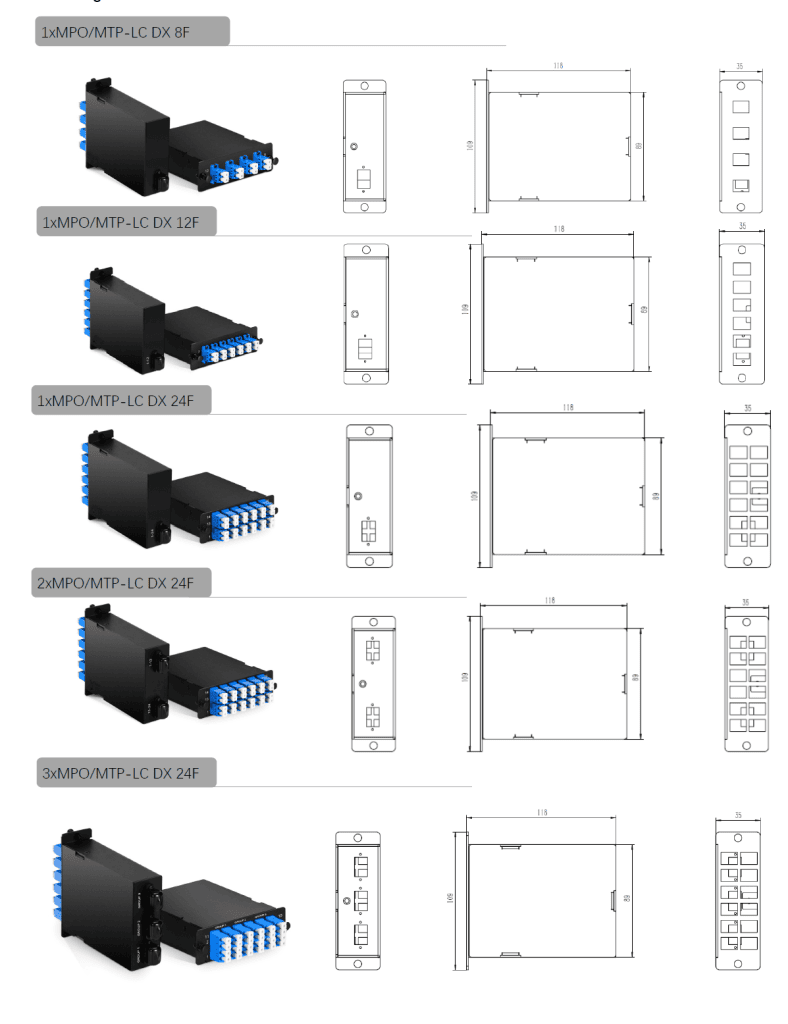

Matching Cassette
