E2000 APC Simplex adapter Full Flange Standard Type

Share to:

Description

E2000 Adapter are developed to couple and mate two E2000 connector plugs. The E2000 fiber optic adapter features injection-molded PBT housing, rated to the UL94V-01 Flammability Index. Spring-loaded shutters protect against dust and scratching. A high-quality split ceramic sleeve ensures high performance over 1000 mating cycles. The adapter may be ordered with color coded housing and frames.

OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Features:

  • Compliant with European (EN 186270) and International (IEC 61754-15) standards.
  • Push-pull locking mechanism for easy installation
  • Precision connection with sleeve
  • SM and MM connector can be used interchangeably
  • Low insertion loss, High Return loss
  • Good interchangeability and reliability
  • Meet IEC and ROHS standards

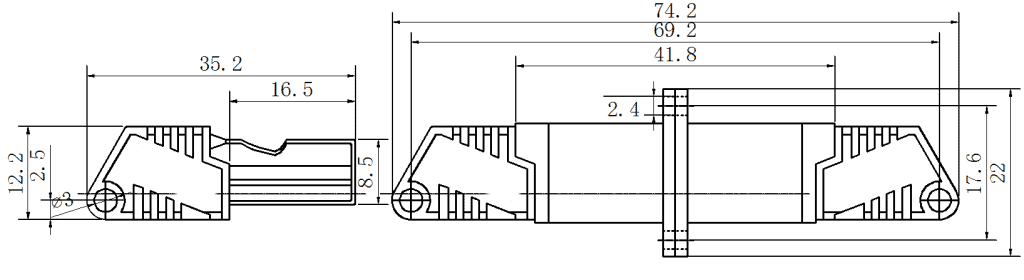

  • High precision of mechanical dimensions Accuracy

Specification

Test item (SM-9/125) UPC (SM-9/125) APC MM PC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.2dB
Return Loss ≥50 dB ≥60 dB ≥35 dB
Durability (500 Mating) 0.1dB Max.
Withdrawal force(g/f) 2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp(℃) -40~+85



Material

Parts name Material Color
Housing body PBT Green
Sleeve High precision Ceramic sleeve Sleeve
Inside hook PBT/PPS Green
Dust Cover PBT Green

Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125



Application:

  • Patch panels, ODF and other optical connections.
  • Optical networks demarcation and monitoring point
