4F-24F Armored patch cable

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

DIN: IEC61754-3

E2000: IEC61754-15



Share to:

Description

4-24F Armored Patch cable (Patch cord) is a patch cord which could be used as cooper patch cable. They adopted a cable with soft metal protection tube and standard connector. The apply place are in the floor corner. Those products could protect the fiber bite by mouse and ant. Although armored fiber optic cables are strong, they are actually as flexible as standard fiber optic patch cords; they can be bending randomly without being broken. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.



Our 4-24F Armored Patch cord included 4/6/8/12/24 cores different optional.

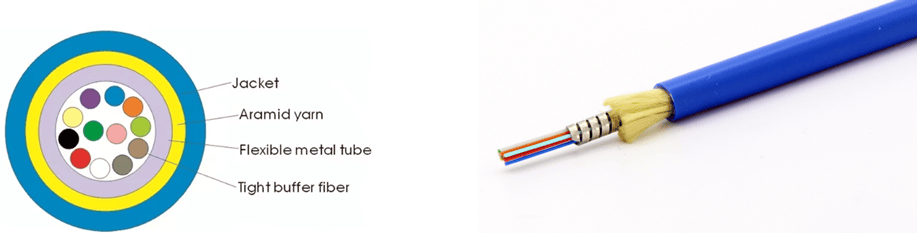

Products Materials-Armored Cable

Item Contents Unit Fiber Count
Fiber count Number / 4 6 8 12 24
Tight buffer material / PVC
diameter mm 0.6
Flexible metal tube material / SUS204
diameter mm 2.4 2.8 2.8 3.9 6
thickness / 0.35mm
Strength member Material / Aramid yarn
Outer sheath Color / Blue
Material / LSZH,PVC(OFNR,ONFP),TPU
Cable diameter ±0.1 mm 4.00 5.00 5.00 6.00 9.00
Cable weight ±10% kg/km 25 35 35 57 70
Max. tensile load Short term N 200 300 300 400 500
Max. crush resistance Short term N/100mm 2000 2000 2000 3000 4000
Min. bending radius Installation / 20D
Operation / 10D
Temperature range Operation PVC&LSZH :-20-+70,
TPU:-40-+80



Advantage of Armored cable

Specification

Connector SC,LC,ST,FC,MU,E2000,MTRJ… Polish PC,UPC,APC
Fiber Mode 9/125μm, 50/125μm, 62.5/125μm, Jacket Color SM:Yellow/Blue/White/Black

OM1&OM2: Grey/Orange;

OM3:Aqua;

OM4:Aqua/Violet/ Magenta

Insertion loss 0.3dB(IEC Grade C)

0.12dB(IEC Grade B)

Return loss SM UPC ≥ 50dB(min)

SM APC ≥ 60dB(min)

MM PC ≥ 35dB(min)

Interchangeability &Vibration ≤0.2dB Operation&Storage temperature -40~85°C



Geometric Specification( if Customer requested)

Items Parameter
Polishing PC APC
ROC SC 10 ~ 25mm 5 ~ 12mm
LC 7~ 25mm 5 ~ 12mm
Apex Offset ≤ 50um
Fiber Spherical Height ±100nm
Angle —— 8 ± 0.5



Connector Type



High quality SM Ceramic ferrule, Good concentricity<0.5um

High quality MM Ceramic ferrule, Good concentricity<4.0um

High strength  Breakout kits to protect cable

Very reliable



End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

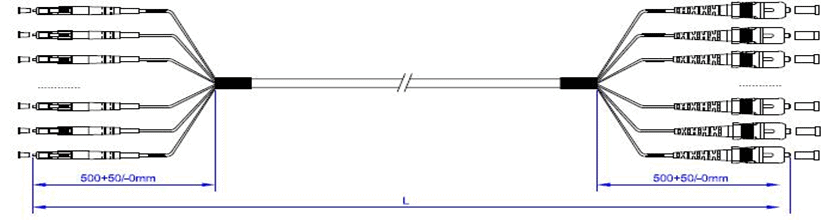

Length Tolerance

Overall Length(L) (m) length of tolerance (cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0
