| Connector |
SC,LC,FC,ST,E2000,MU,LX.5,DIN,D4 |
Jacket OD(mm) |
4cores:3.5×2.5mm
6cores: 3.8×2.5mm
8cores: 4.5×2.5mm
12cores: 5.0×2.5mm |
| Fiber Mode |
9/125μm, 50/125μm, 62.5/125μm, |
Jacket Color |
SM:Yellow/Blue/White;
OM1&OM2: Orange; OM3:Aqua;
OM4:Aqua/Violet/ Magenta |
| Polish |
PC,UPC,APC |
Wavelength |
SM:1310/1550nm
MM:850nm |
| Cable Type |
Multi-fibers Breakout 0.9mm unit cable |
Jacket Material |
LSZH/PVC/OFNR/OFNP |
| Insertion loss |
≤0.3dB(IEC Grade C) |
Insertion loss |
≤0.12dB(IEC Grade B) |
| Return loss |
SM UPC ≥ 50dB(min)
SM APC ≥ 60dB(min)
MM PC ≥ 35dB(min) |
Interchangeability &Vibration |
≤0.2dB |
| Operating temperature |
-40~75°C |
Storage temperature |
-45~85°C |
Products Materials
G652D,G657A1,G657A2/B2,G657B3,OM1,OM2, OM3, OM4, OM5 Fibers
4F OD:2.5×3.5mm ; 6F OD:2.5×3.8mm
8F OD:2.5×4.5mm ; 12F OD:2.5×5.0mm
PVC (Riser/OFNR)，LSZH，Plenum (OFNP) Jacket materials
High quality SM Ceramic ferrule, Good concentricity<0.5um
High quality MM Ceramic ferrule, Good concentricity<4.0um

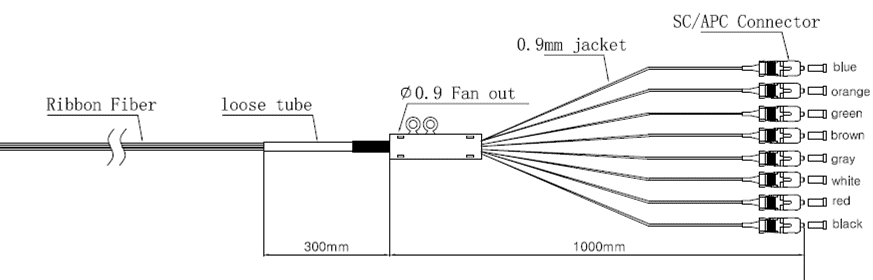

High Quality 1×12 fanout kits for 12F ribbon fiber and ribbon cable.

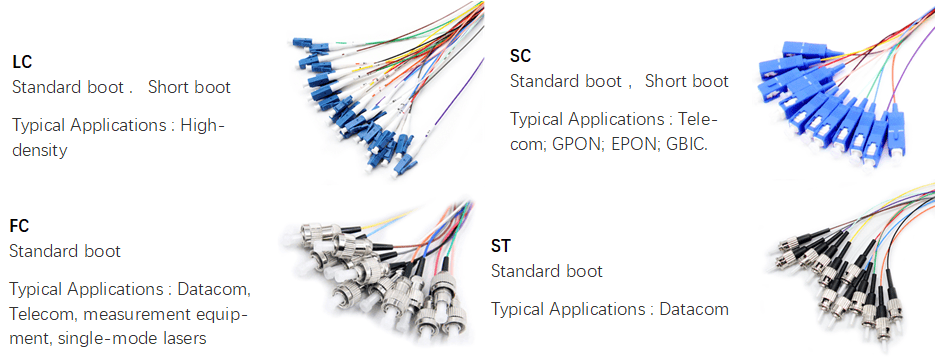

Connector Type
Geometric Specification( if Customer requested)
| Items |
Parameter |
| Polishing |
PC |
APC |
| ROC |
SC/FC/ST |
10 ~ 25 |
5 ~ 12 |
| LC/MU |
7~ 25 |
5 ~ 12 |
| Apex Offset |
≤ 50 |
| Fiber Spherical Height |
±100 |
| Angle |
± 0.5 |
8 ± 0.5 |
Polishing Method
End-face Quality (SM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
25 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
End-face Quality (MM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 65 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
65 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
Length Tolerance
| Overall Length(L)(m) |
length of tolerance(cm) |
| 0<L<1 |
+5/-0 |
| 1<L<10 |
+10/-0 |
| 10<L<40 |
+15/-0 |
| 40<L |
+0.5% x L/-0 |
Standard Compliance
- TIA 604 (FOCIS)
- TIA/EIA 492AAAE
- IEC 61754
- IEC 60793-2-10
- IEC61300-3-35
- YD/T1272.1-2003
- RoHS, ISO9001 Compliant
Application
- Data Center
- Enterprise
- Fiber to the X (FTTX)
- LAN and WAN
- CATV Network
- Telecommunications Network
