It’s a kind of patch cord/Pigtail which assembly with 3.0mm Round high tensile FTTH Drop Cable with LSZH Jacket.

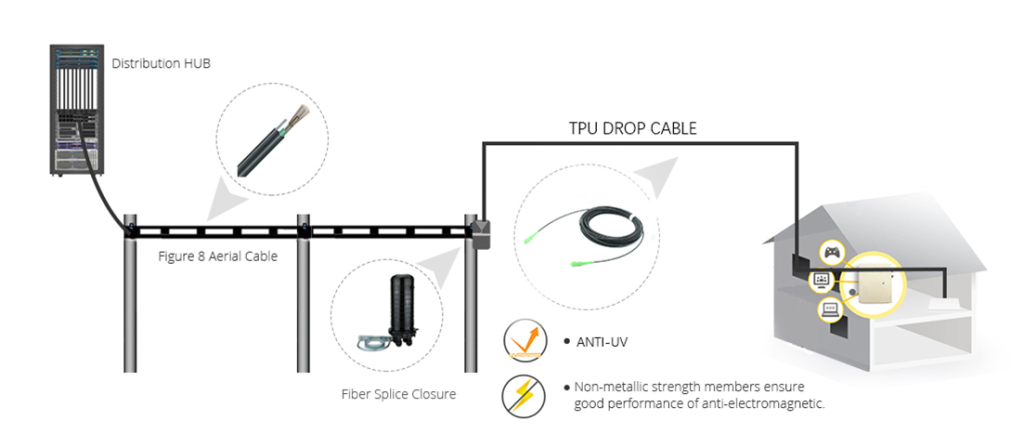

With easy accessibility to the fiber and simple installation, The LSZH FTTH Drop cable can be used indoor and outdoor directly connected to the homes&Rooms. This is a last cable in FTTH project. Used widely between Fact plate, terminal box between ONU/ONT.
| Connector | SC | Polish | APC |
| Fiber Mode | 9/125μm G657A2/G657B3 | Jacket Color | Black/White/Grey/Ivory |
| Cable OD | 3.0mm | Wavelength | SM:1310/1550nm |
| Cable Structure | Simplex | Jacket Material | LSZH |
| Insertion loss | ≤0.3dB(IEC Grade C)
≤0.1dB(IEC Grade B) |
Crush Resistance(N/100mm) | Long term 100;
short term:500 |
| Return loss | SM APC ≥ 60dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Cable Tensile Strength（N） | Long term 40;
short term:80 |
Operation&Storage temperature | -40~85°C |
End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Polishing Method
Length Tolerance
| Overall Length(L) (m) | length of tolerance (cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Cable structure

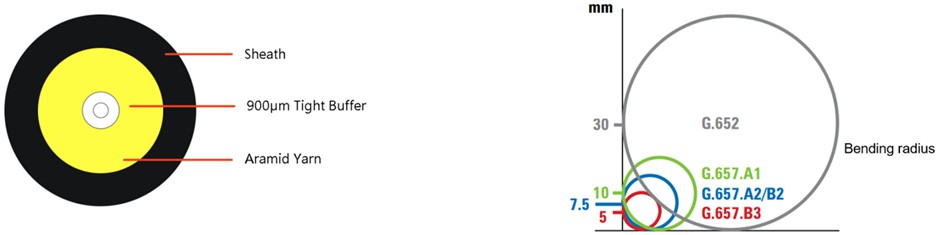

3.0mm Round FTTH Drop Cable with LSZH Jacket use Simplex round structure, A 900um tight buffer placed inside the cable. Then the cable is completed with Aramid yarn and TPU sheath. The LSZH cable jacket has excellent physical and mechanical properties, high strength, high elasticity, high wear resistance, Excellent chemical resistance, resistant to erosion by acids, alkalis, and other chemicals. With small diameter, soft and bendable characteristics, it’s easy to deploy and maintenance. It’s the best choice for FTTX project.
| Number of fiber | 1F | |
| Fiber | Type | G657A2、G657B3 |
| color | White | |
| Tight buffer or Semi-tight buffer | material | PVC/LSZH |
| diameter | 0.9±0.05mm | |
| strength member | material | Aramid yarn |
| Outer sheath | material | LSZH |
| color | Black | |
| OD | 2.9±0.1mm | |
| CPR Level | Available for Dca,Eca | |
| Cable weight(kg/km) | 7-8 kg/km | |
| Tensile load（N) | Long term: 40N & Short term:80N | |
| Crush resistance (N/10 cm) | Long term: 100N & Short term:500N | |
| Operation temperature range | -45 ~ +85°C | |
| Installation temperature range | -10 ~ +60°C | |
| Storage temperature range | -45 ~ +85°C | |
OEM Service
1.Cable color, printing word, material of cable jacket, connector’s color
2.OEM Label, Identify ring, cable’s label，box, shipping marks
3.Different quality Level.
Application
FTTX Access Networks
Fiber Optic Communication System
FTTH (Fiber to The Home) Indoor Cabling project
Optical fiber connected and transmitted equipment
Ideal Solution Drop cable Solution for Indoor&outdoor FTTH Project
3.0mm Round FTTH Drop Cable with LSZH Jacket has excellent physical and mechanical properties, high strength, high elasticity, high wear resistance, Excellent chemical resistance, resistant to erosion by acids, alkalis, and other chemicals. With small diameter, soft and bendable characteristics, it’s easy to deploy and maintenance. It’s the best choice for Indoor and outdoor FTTX project.
