24F MTP(male)-LC fanout 0.9 0.30m cable

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

E2000: IEC61754-15

Share to:

Description

24cores MTP Male – LC Fan-out 0.9mm 30cm patch cable are designed for MTP-LC LGX module cassettes are terminated with MTP and LC connector on each end.

24F MTP- LC/SC/FC/ST Standard harness Cables designed for 100GBASE-SR10 CXP/CFP Interconnect Solution,100GBASE-LR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications.  This 24 Fiber harness cable is used for connecting (12) SFP+ into a MTP adapter panel and MTP trunk.



Features:

  • 100% pre-terminated and tested in factory to ensure transfer performance.
  • Low insertion loss, high return loss
  • MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
  • Economical solution for mass-termination of fiber
  • Designed for low loss and standard loss SM and MM applications
  • Ruggedized round cable, oval cable and bare ribbon options available
  • Color coded housings available to differentiate fiber type, polish type and/or connector grade
  • Good in repeatability and exchangeability

Specification

MTP-LC/SC/FC/ST Fan-out 0.9mm 30cm patch cable’s Specification:

Spec items. Single mode (APC 8-degree polished) Multimode (PC Flat polish)
Insertion loss (MTP)

(IEC 61300-3-34)

Standard MTP:≤0.75dB(max), ≤0.35dB(Typical)

Elite MTP:≤0.35dB(max), ≤0.20dB(Typical)

Standard MTP:≤0.6dB(max), ≤0.35(Typical)

Elite MTP:≤0.35dB(max) , ≤0.20dB(Typical)

Insertion loss (LC/SC/FC/ST)

(IEC 61300-3-6)

≤0.3dB ≤0.3dB
Return loss(MTP) ≥60dB(8degree polishing) ≥25dB
Return loss(LC/SC/FC/ST) APC≥60dB; UPC≥50dB ≥35dB
Durability <0.3dBtypical change, 200 matings
Interchangeability ≤0.2dB
Tensile strength >70N
Operating Temperature -40 to + 85°C



MTP products’ Connector’s Details:

Connector Reference Housing Details
MTP Singlemode IEC 61754-7 SM APC: Green connectors+black boot (Standard Loss MTP)

SM APC: Yellow connectors+black boot (Elite MTP)

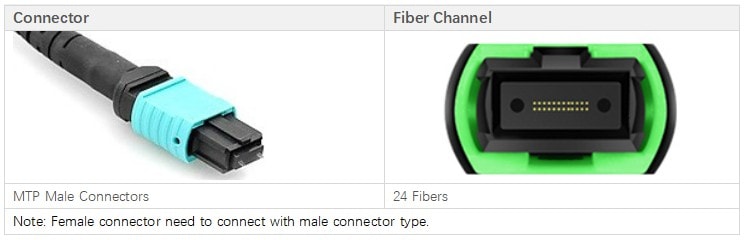

MTP Multimode IEC 61754-7 OM3&OM4 PC: Aqua connectors+black boot (Standard Loss&Elite MTP)
  • Meets IEC Standard IEC-61754-7;IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
  • Structured cabling per TIA-568-C
  • 10G Fiber Channel Compliant

40G and 100G IEEE 802.3



MTP End-Face 3D Interference Index

Item (IEC-61300-3-30) Minimum Maximum
Radius of curvature (mm) ROC-X(ABS) 2000 \
ROC-Y(ABS) 50mm \
Angle Angle-X -0.2° -0.2°
Angle-Y APC 7.85° 8.15°
PC -0.2° -0.2°
Fiber height (nm) 1000nm 3500nm
Max.DH.All Fiber: -300nm 300nm
DH.Adj: -300nm 300nm
DH.Ave Fiber: -300nm 300nm
Core Dip: SM N/A N/A
MM -200nm 300nm



LC/SC/FC/ST End-Face Geometry 3D Interference Index

 Items  Connector PC End-face APC End-face
Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm
LC/MU 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 100 nm
Angular Offset        —— 8°± 0.5°



LC/SC/FC/ST End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



LC/SC/FC/ST End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



Application:

  • Data communication network.
  • Optical System Access network.
  • Storage area networking fiber channel.
  • High density architectures.

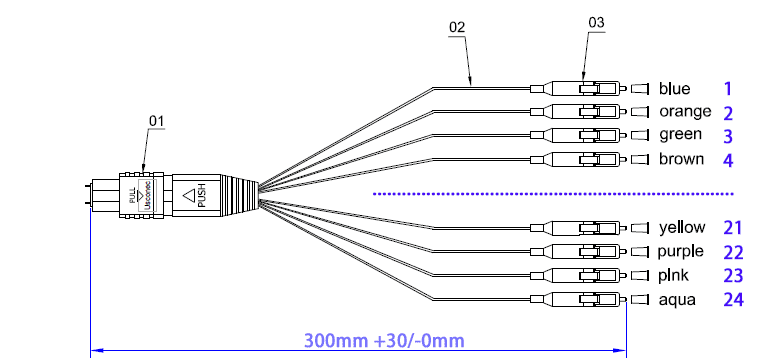

Cable Drawing
