1U UHD 19‘ 144F MPO-LC Patch Panel -12x12F cassettes

Share to:

Description

UHD 1U 19‘ 144F MPO-LC Patch Panel is made of aluminum alloy, Designed for 19″ rack-mount cabinet. The 1U enclosure houses 3 independently sliding drawers, Each drawer is able to hold 4pcs of 12-port MPO-LC cassettes by default. It provide a system for managing fiber terminations, connections, and patching in all types of applications. They are ideal for fast, flexible and reliable patch field solutions within main, horizontal and equipment distribution areas (MDA, HDA and EDA).

Specification

Products Details

Product name 1U UHD MPO&MTP-LC Slide Drawer Rack mount patch panel Part No  UHD1S1
Enclosure Type Rack Mountable Fiber Count Max.144 Fibers
Installation Standard EIA 19″ Rack Material CRS Cold rolled steel
Compliant TIA/EIA-568-C.3 Dimensions (HxWxD) 482.6mmx455mmx44mm



Matching Cassettes Module and accessories

BLACK Color

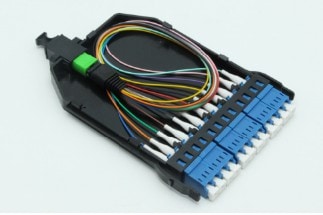

MPO/MTP-LC Cassette

Black Plastic cassette

Spec: 1xMPO-LC DX 12F

95mmx124.5mmx12mm

TRANSPARENT

MPO/MTP-LC Cassette

Transparent Plastic cassette

Spec: 1xMPO-LC DX 12F

95mmx124.5mmx12mm
