1U 144F MPO&MTP®-LC Patch panel

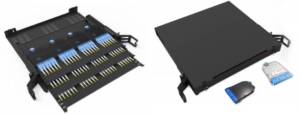

Products Details-1U

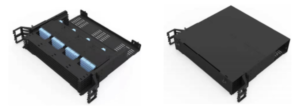

Products Details-2U

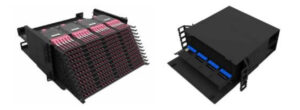

Products Details-4U

MPO-LC Modular Cassette

1 x 12F MPO to 6x LC duplex	Front ports	Rear port	Material	Dimension(mm)
	6x LC duplex adapters  HD Type	1 x MPO- 12	ABS	95×124.5×12

1 x 12F MPO to 6x LC duplex	Front ports	Rear port	Material	Dimension(mm)
	6x HDLC duplex adapters with Inner dust-proof auto shutter HD Type	1 x MPO- 12	ABS	95×124.5×12

BLACK Color MPO/MTP-LC Cassette

TRANSPARENT MPO/MTP-LC Cassette

Other Accessories

MPO Adapter	Keyway	Footprint	Insertion Loss	Color
	Opposed (Up-Down) Aligned (Up-Up)	MPO/MTP standard	≤0.2dB	Black

Other Accessories

LC DX Reduced flange Adapter	Keyway	Footprint	Insertion Loss	Color
	Aligned (Up-Up)	SC Footprint	≤0.2dB	SM:BLUE OM3:AQUA OM4:MAGENTA OM5:LIME GREEN

8F MPO-LC 0.9mm fanout 30cm	End A	End B	Optical Performance
	1x8F MPO&MTP (Male) with Pin	8x LC simplex 0.9 connectors	Standard MPO IL<0.5dB Super low loss MPO IL<0.35dB LC ‘s IL<0.3dB

12F MPO-LC 0.9mm fanout 30cm	End A                        End B           Optical Performance
	1x12F or 16F MPO&MTP(Male) with Pin	12x LC sim- plex 0.9 con- nectors	Standard MPO IL<0.5dB Super low loss MPO IL<0.35dB LC ‘s IL<0.3dB

24F MPO-LC 0.9mm fanout 30cm	End A	End B	Optical Performance
	1x24F MPO&MTP (Male) with Pin	24x LC sim- plex 0.9 con- nectors	Standard MPO IL<0.5dB Super low loss MPO IL<0.35dB LC ‘s IL<0.3dB

Design Principles

High-Density MPO-to-LC Transition

The panel converts dense MPO trunk cabling (12 or 24 fibers per connector) into individual duplex LC con – nections. Up to 144 fibers can be terminated in a single 1U of rack space, reducing rack footprint and ca – bling volume compared with conventional LC patch panels.

Modular and Scalable Architecture

Modules are installed into the panel only as required and can be added, replaced or reconfigured without disturbing adjacent circuits. This front-accessible, tool-less design shortens deployment time and simplifies future upgrades.

Design Principles

Polarity Management

MPO-based links follow the polarity methods (Type A, Type B and Type C) defined in ANSI/TIA-568.3-D. Modules, trunk cables and patch cords are selected together to maintain end-to-end polarity consistency.

Fiber Protection and Cable Management

The internal fan-out fiber is factory terminated and protected within the module. Front and rear cable –

management features enforce the minimum bend radius and provide strain relief, protecting fibers against micro-bending loss and accidental damage.

Material and Thermal Design

The aluminum alloy chassis combines low weight with high rigidity and provides an effective grounding path. Ventilated front/rear openings allow natural airflow through the panel, helping to keep modules within their operating temperature range in dense racks.

Standards-Based Mechanical Design

All panels follow the 19-inch equipment practice (482.6 mm mounting width, 44.45 mm per rack unit) in ac – cordance with EIA-310-E / IEC 60297-3-100, ensuring drop-in compatibility with standard data-center and telecom racks.

Order Index

Unloaded patch panel

Full loaded MPO/MTP-LC Cassette

For Example:UHD1S-1-1-1-1
