19′ Rack Mount PLC Splitter-integrated design

Share to:

Description

Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

OMC ‘s 19′ Rack Mount PLC Splitter family has 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 2×2, 2×4, 2×8, 2×16, 2×32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.

Specification

Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.4 7.9 11.0 14.1 17.4 21.0
Insertion Loss without Connector (Max) dB 4.1 7.6 10.7 13.8 17.1 20.7
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB ≥55



Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss with Connector (Max) dB 4.6 78.1 11.3 14.4 17.7 21.3
Insertion Loss without Connector (Max) dB 4.1/4.3 7.4/7.8 10.5/11 13.8/14.1 17.1/17.4 20.3/21.0
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.5
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB ≥55



Environmental Conditions:

Operating Temperature -40~+85
Storage Temperature -40~+85
Operating Humidity %RH ≤93
Storage Humidity %RH ≤93

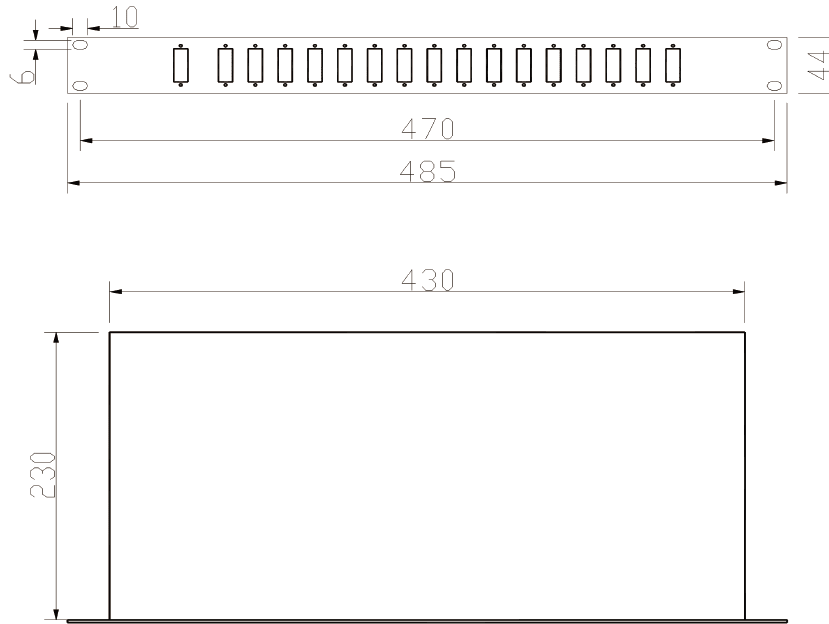

Dimension (mm)
