16 ports FTTX Pre-connectorized Terminal Box PTB-16C

Share to:

Description

The FTTX Pre-connectorized Terminal Box PTB-16C is used as a termination box for the feeder cable to connect  with drop cable in FTTx communication network system. The fiber splicing, splitting,  distribution can be done in this box, and meanwhile it provides solid protection  and management for the FTTx network building. It can offer 16 FTTH subscribers access points.



Features

  • Total enclosed structure.
  • Material:PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
  • Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
  • Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Specification

Input  Cable OD 1 mid span port( Φ16.5mm Max) for Uncut cable Dimension(L*W*D,) 345x220x95mm
Capacity 8ports Waterproof Mini SC APC adapters<0.2dB+5x24F Splice trays Protection Level IP65 Indoor/Outdoor
Material PC+ABS, ABS Suitable Splitter 1:8 or 2:8 or 1:16 Blockless PLC Splitter
Color Grey,Black,White. Installation Method Wall&Pole mounted



Environmental requirement

Working temperature:-40℃~+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa~106Kpa



Main technical datasheet:

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB



Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of  the box is no less than 2 x 104 MΩ/500V(DC);IR≥2×104 MΩ/500V, The voltage resistance between the grounding device, and the box and its metal

parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V



Installation

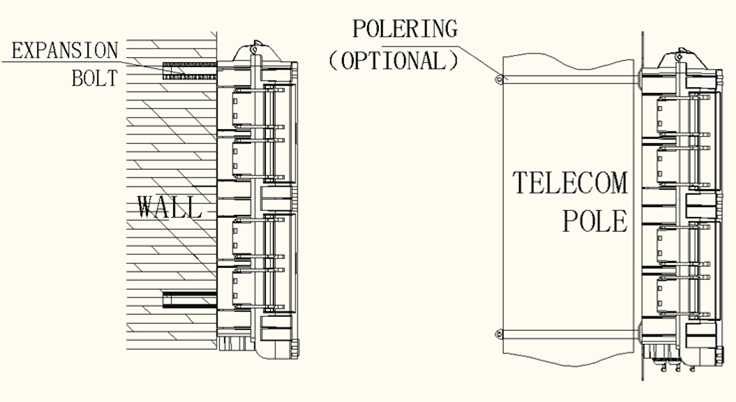

  1. Wall-mounted

installation

Drill 4 holes over the wall based on the size,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.

  1. Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole
