16 ports FTTX Pre-connectorized Terminal Box PTB-16B weatherproof

Share to:


It consists of  2/4x optical cable inlet and 16x outlet PORTS,  some Splice trays, a tissue system with optical fiber splicing tray and 8pcs bayonet type enhanced pre-connectorized waterproof Mini SC adapters, which can be accessed and connected from the outside of the box.


The box is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. The fiber splicing, splitting, and distribution can be done in this box, and to form the optical interconnection point between these networks and the distributed network. It allow the connection to a single optical plug in the customer’s home on demand. and meanwhile it provides solid protection and management for the FTTx network building.


The closed box is completely sealed and weatherproof, so it can be installed outside and inside the exterior wall, wall, roof, basement, garage, yard, wardrobe, column or building installed on the messenger.



  • Plug and play, pre-connected household cable instead of fusion, no need to open the box.

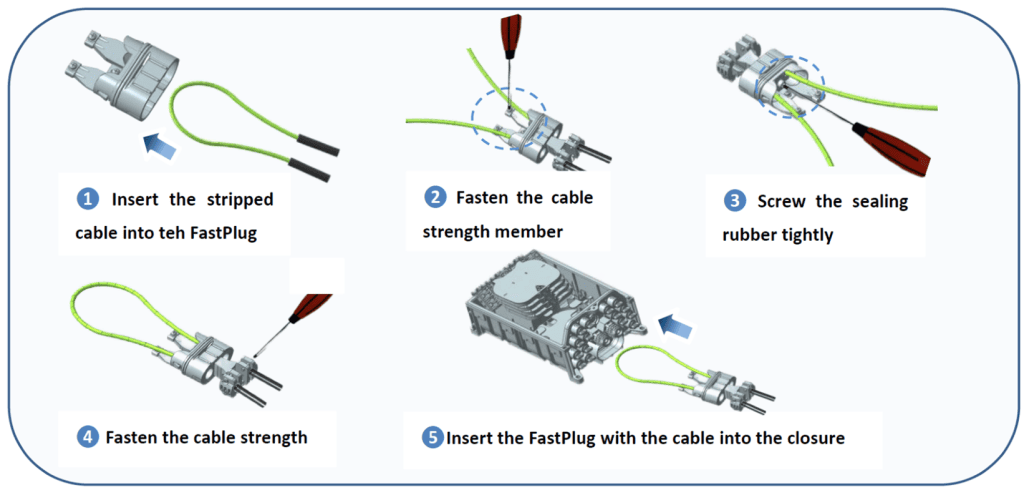

  • Fast insertion can fix and seal the optical cable outside the connector box for quick installation.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
  • Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
  • Support a variety of installation methods, holding pole, hanging wall, hanging cable.
  • Suitable for a variety of installation scenarios, support above-ground, underground, Manhole. well, hand well。
  • Box can be installed by the way of wall-mounted or poled-mounted, suitable for both
  • indoor and outdoor use.


Model No. PTB-16B Color Black
Input  Cable PORTS 4x Blank Sealing   plug                     or                                             1xOMC-K01 suitable for Φ 6-18 mm straight-through cable      or                                            2xOMC-R01  suitable for Φ 5-12mm branching cable Output Adapters 16x Mini SC waterproof adapters<0.2dB
Splice 192F fusion splice max Suitable Splitter 1:8 or 2:8 or 1:16
Material Plastic :PP+GF;Metal: SUS304 Dimension(L*W*D,) 355*215*145mm
Adapter insertion loss Mini SCAPC<0.2dB                   Mini MPO<0.35dB Suitable cables MPO-LC 12F fanout 0.9mm
Flame retardant performance Non-flame retardant Protection Level IP68 Indoor/Outdoor
Installation Method Pole/wall-mounting, aerial cable-mounting Impact resistance rating IK10
Application scenario Overground, underground, manhole/hand hole Sealing mode Mechanical

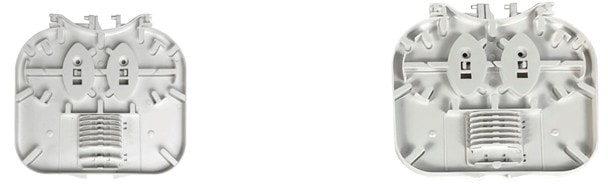

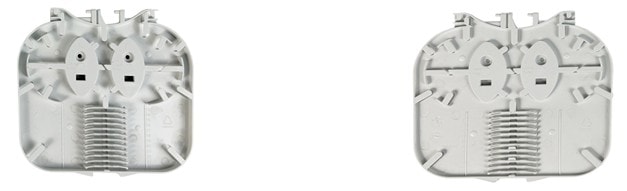

Splice tray details

Mold OMC-R021
Dimension(mm) 134*125*8
Material PC+ABS, ABS
Splice Capacity 12F, 1 slot for 1*8 or 1×4 PLC splitter
Mold OMC-R022
Dimension(mm) 134*125*8
Material PC+ABS, ABS
Splice Capacity 12F, 1 slot for 1*16 PLC splitter


Mold OMC-R023
Dimension(mm) 134*125*8
Material PC+ABS, ABS
Splice Capacity 24F
Mold OMC-R024
Dimension(mm) 134*125*4
Material PC+ABS, ABS
Splice Capacity 12F

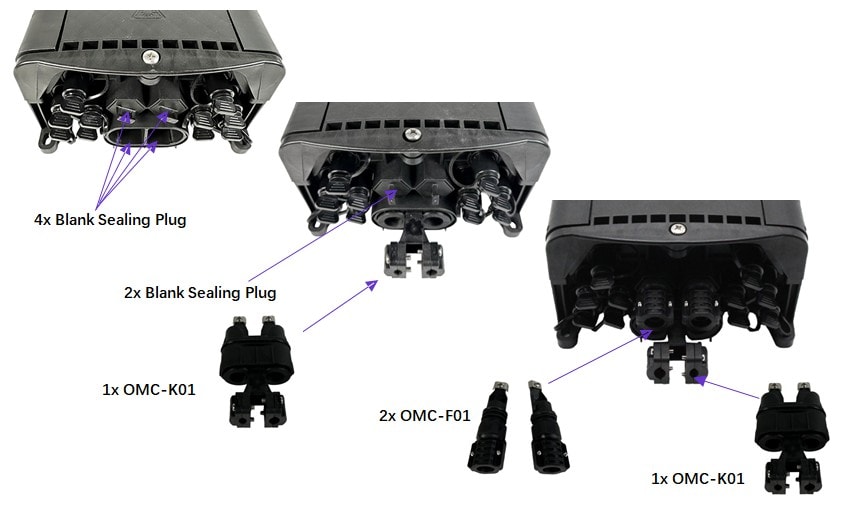

Input ports details

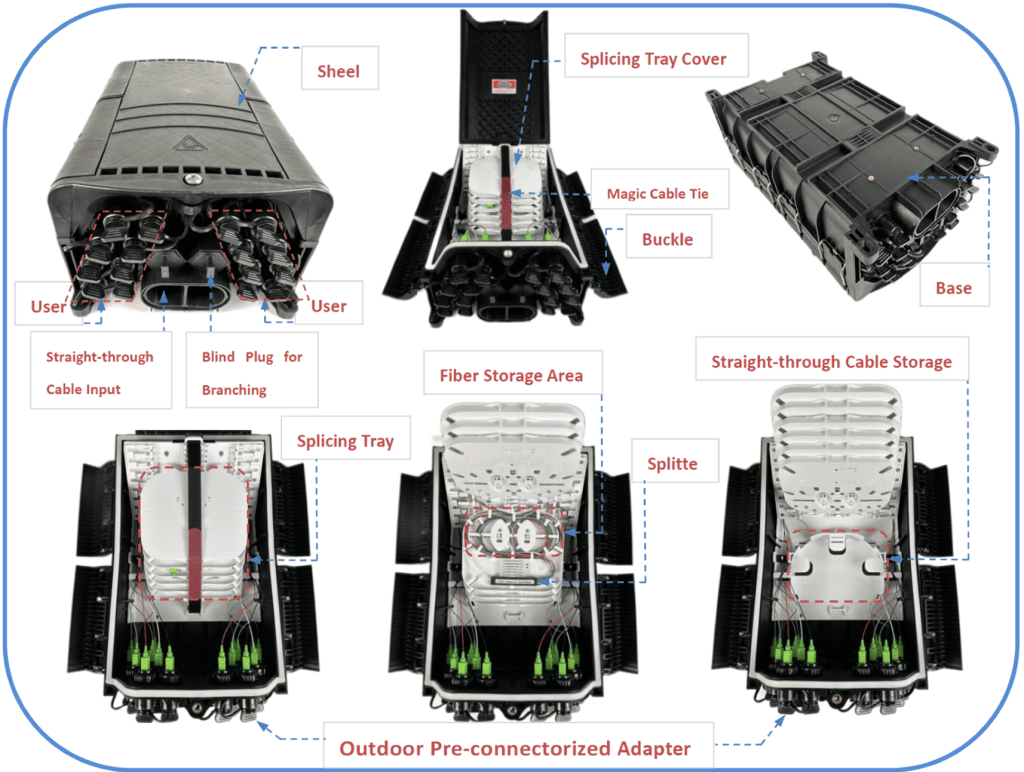

Product Functional Zoning


Products Cabling route


Environmental requirement

Working temperature:-40℃~+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa~106Kpa


Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of  the box is no less than 2 x 104 MΩ/500V(DC);IR≥2×104 MΩ/500V, The voltage resistance between the grounding device, and the box and its metal

parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
