MTP Fiber Patch cable/trunk cable is terminated with MTP connector on both ends. MTP Patch cable/trunk cables connect MTP modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.
Features:
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
| Spec items. |
Single mode (APC 8-degree polished) |
Multimode (PC Flat polish) |
| Insertion loss (MTP
(IEC 61300-3-34) |
Standard loss：≤0.75dB(max), ≤0.50dB(Typical)
Elite loss：≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss：≤0.6dB(max), ≤0.50(Typical)
Elite Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Return loss(MTP) |
≥60dB（8degree polishing） |
≥25dB |
| Durability |
<0.3dBtypical change, 200 matings |
| Interchangeability |
≤0.2dB |
| Tensile strength |
>70N |
| Operating Temperature |
-40 to + 85°C |

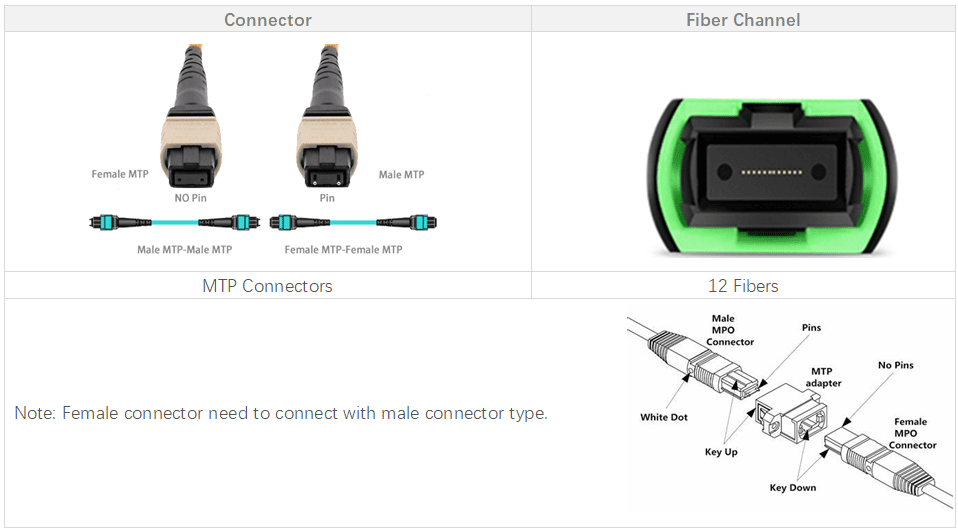

Products Materials
| Connector |
Reference |
Housing Details |
| MTP Single mode |
IEC 61754-7 |
SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Elite MTP) |
| MTP Multimode |
IEC 61754-7 |
OM3&OM4 PC: Aqua connectors+black boot (Standard Loss&Elite MTP) |
IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3

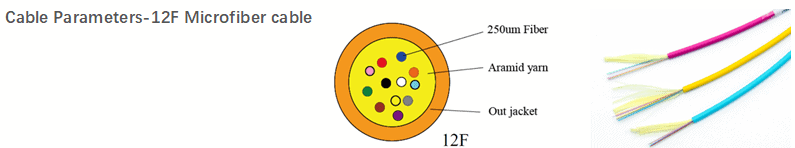

| Fiber Count |
OD(mm) |
Minimum allowable
Tensile Strength (N) |
minimum allowable
Crush Load(N/100mm) |
Minimum Bending
Radius(MM) |
| 12 |
3.0±0.15 |
Short-term: 180；
Long-term: 90 |
Short-term: 500；
Long-term: 150 |
Static：10D
Dynamic：20D |
MTP End-Face 3D Interference Index
| Item (IEC-61300-3-30) |
Minimum |
Maximum |
| Radius of curvature (mm) |
ROC-X(ABS) |
2000 |
\ |
| ROC-Y(ABS) |
50mm |
\ |
| Angle |
Angle-X |
-0.2° |
-0.2° |
| Angle-Y |
APC |
7.85° |
8.15° |
| PC |
-0.2° |
-0.2° |
| Fiber height (nm) |
1000nm |
3500nm |
| Max.DH.All Fiber: |
-300nm |
300nm |
| DH.Adj: |
-300nm |
300nm |
| DH.Ave Fiber: |
-300nm |
300nm |
| Core Dip: |
SM |
N/A |
N/A |
| MM |
-200nm |
300nm |

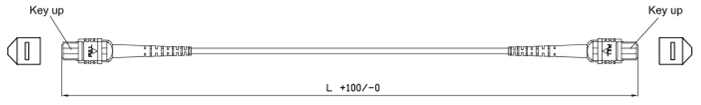

MTP-MTP 12F Trunk cable drawing.
| Overall Length(L)(m) |
length of tolerance(cm) |
| 0<L<1 |
+5/-0 |
| 1<L<10 |
+10/-0 |
| 10<L<40 |
+15/-0 |
| 40<L |
+0.5% x L/-0 |
Application
All of OMC’s MTP Connectors are from USCONEC. MTP Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
