12F & 24F MPO Adapter-Full flange

Share to:

Description

MPO MTP Standard footprint Adapter-Full flange

MPO/MTP adapter provides alignment for a male and female MPO/MTP connector. The housing is available with MPO/MTP or SC footprint, aligned or opposed alignment keys, different colors and with options for flange or flangeless body.

MTP/MPO adapter has two types as key-up to key-down and key-up to key-up. It provides the connection between cable to cable or cable to equipment in the MTP/MPO style. It works for any MTP Connector from 4 fibers to 72 fiber, widely used in trunk cabling and cassettes. This adapter meets appropriate standards and is perfect for your parallel optics and MTP adapter needs.



MPO/MTP fiber optical adapter comply with industry standard TIA – 568C. 3-2008 (standard of fiber optical system) and YD/T1272.5-2009 (fiber optical connector part v: MPO style).



OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Features:

  • One-piece design
  • Anti-Fungus Plastic
  • Internal Shutter Capable
  • Stainless Steel Clip
  • Full flange type

Specification

Product Details

Connector Type MTP/MPO Foot print Keyway Opposed (Up-Down)

Aligned (Up-Up)

Adapter Port Single Footprint SC
Insertion Loss ≤0.2dB Durability ≤0.1dB
Flammability Rate UL94-V0 Working Temperature -25~70°C



Material

Parts name Material Color
Housing body Polyetherimide Black, Green, Yellow, Beige, Aqua, Magenta or Customized
Metal Plate Stainless steel
Dust Cover PC/Rubber Black



Application:

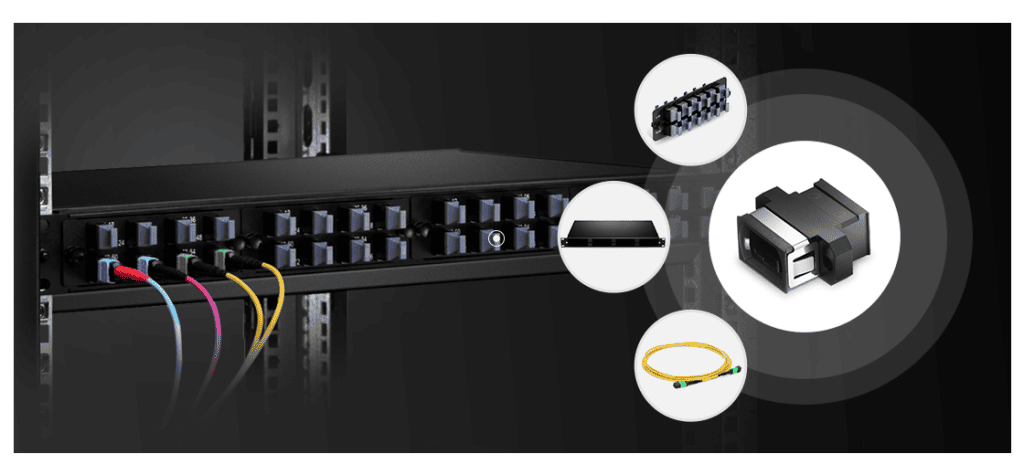

Adapters Bridge the Gap Between Fiber Optic Connectors, Our MTP/MPO fiber optic adapters are widely applied in 10G/40G/100G networks, data center, optical fiber communication system, cable television network, fiber optic access network and video transmission.
