12 ports FTTX Pre-connectorized Terminal Box PTB-12C

Share to:

Description

It consists of  12x outlet PORTS,  some Splice trays, a tissue system with optical fiber splicing tray and 12pcs bayonet type enhanced pre-connectorized waterproof  Mini SCAPC adapters, which can be accessed and connected from the outside of the box.



The box is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. The fiber splicing, splitting, and distribution can be done in this box, and to form the optical interconnection point between these networks and the distributed network. It allow the connection to a single optical plug in the customer’s home on demand. and meanwhile it provides solid protection and management for the FTTx network building.



The closed box is completely sealed and weatherproof, so it can be installed outside and inside the exterior wall, wall, roof, basement, garage, yard, wardrobe, column or building installed on the messenger.



Features

  • Plug and play, pre-connected household cable instead of fusion, no need to open the box.
  • Fast insertion can fix and seal the optical cable outside the connector box for quick installation.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
  • Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
  • Support a variety of installation methods, holding pole, hanging wall, hanging cable.
  • Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Specification

Model No. PTB-12C Color Black
Splice Capacity 4F Splice Input  Cable PORTS 1/2
Material ABS+PC Output Adapters 12x Mini SCAPC waterproof adapters<0.2dB

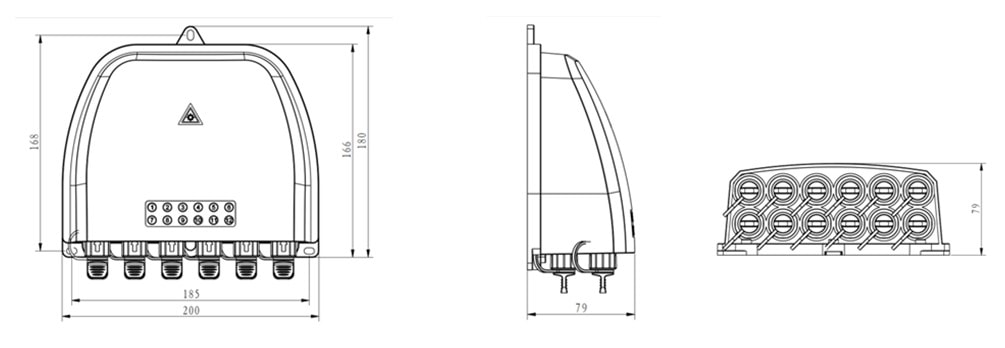

Dimension 200*180*79 mm Suitable Splitter 2 pcs of 1*4 & 1 pcs of 1*8 & 1 pcs of 1*9 blockless PLC Splitter
Flame retardant performance Non-flame retardant Protection Level IP65 Indoor/Outdoor
Installation Method wall mount, pole mount Insertion loss ≤0.2dB(1310nm & 1550nm)



Environmental requirement

Working temperature:-40℃~+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa~106Kpa



Main technical datasheet:

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB



Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of  the box is no less than 2 x 104 MΩ/500V(DC);IR≥2×104 MΩ/500V, The voltage resistance between the grounding device, and the box and its metal

parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
