Armored Patch cable (Patch cord) is a patch cord which could be used as cooper patch cable. They adopted a cable with soft metal protection tube and standard connector. The apply place are in the floor corner. Those products could protect the fiber bite by mouse and ant. Although armored fiber optic cables are strong, they are actually as flexible as standard fiber optic patch cords; they can be bending randomly without being broken. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.

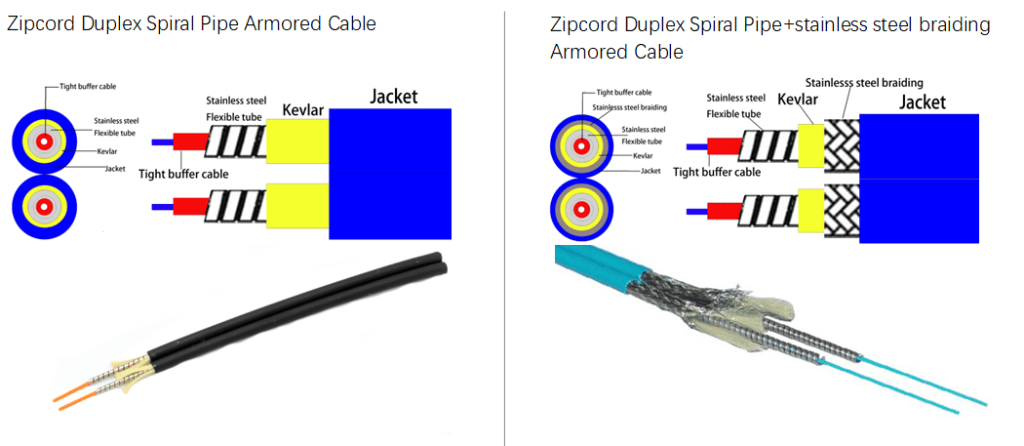

Products Materials
Fiber ：G652D,G657A1,G657A2/B2,G657B3,OM1,OM2, OM3, OM4, OM5 Fibers
Cable OD：2.0mm,2.4mm,2.6mm,3.0mm
Cable Jacket: PVC (Riser/OFNR)，LSZH，Plenum (OFNP) Jacket materials
Minimum allowable Tensile Strength
(N) |
minimum allowable Crush Load
(N/100mm) |
Minimum Bending Radius
(MM) |
| short term |
long term |
short term |
long term |
short term |
long term |
| 1000 |
300 |
1000 |
500 |
20D |
10D |
| 1000 |
300 |
1000 |
500 |
20D |
10D |
| 1000 |
300 |
1000 |
500 |
20D |
10D |
Advantage of Armored cable

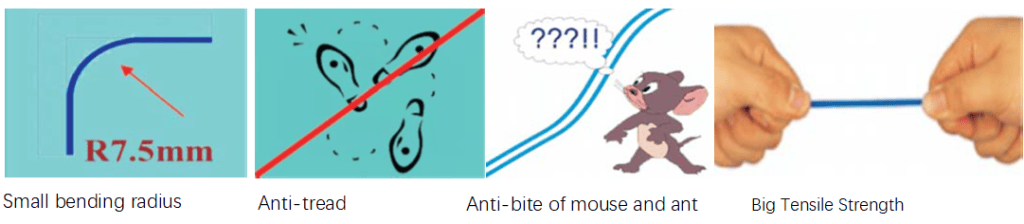

| Connector |
SC,LC,ST,FC,MU,E2000,MTRJ… |
Polish |

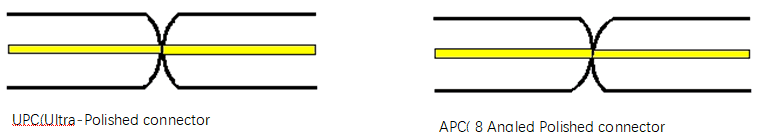

PC,UPC,APC |
| Fiber Mode |
9/125μm, 50/125μm, 62.5/125μm, |
Jacket Color |
SM:Yellow/Blue/White;
OM1&OM2: Grey/Orange;
OM3:Aqua;
OM4:Aqua/Violet/ Magenta |
| Cable OD |
2.0×4.1mm,2.4×4.9mm,
2.6×5.3mm,3.0×6.1mm |
Wavelength |
SM:1310/1550nm
MM:850nm |
| Cable Structure |
Zipcord Duplex |
Jacket Material |
LSZH/PVC/OFNR/OFNP |
| Insertion loss |
≤0.3dB(IEC Grade C)
≤0.12dB(IEC Grade B) |
Crush Resistance(N/100mm) |
Long term 3000;
short term:5000 |
| Return loss |
SM UPC ≥ 50dB(min)
SM APC ≥ 60dB(min)
MM PC≥ 35dB(min) |
Interchangeability &Vibration |
≤0.2dB |
| Tensile Strength（N） |
Long term 100;
short term:200 |
Operation&Storage temperature |
-45~85°C |
| Items |
Parameter |
| Polishing |
PC |
APC |
| ROC |
SC/FC/ST |
10 ~ 25mm |
5 ~ 12mm |
| LC/MU |
7~ 25mm |
5 ~ 12mm |
| Apex Offset |
≤ 50um |
| Fiber Spherical Height |
±100nm |
| Angle |
—— |
8 ± 0.5 |
Connector Type

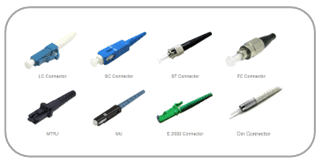

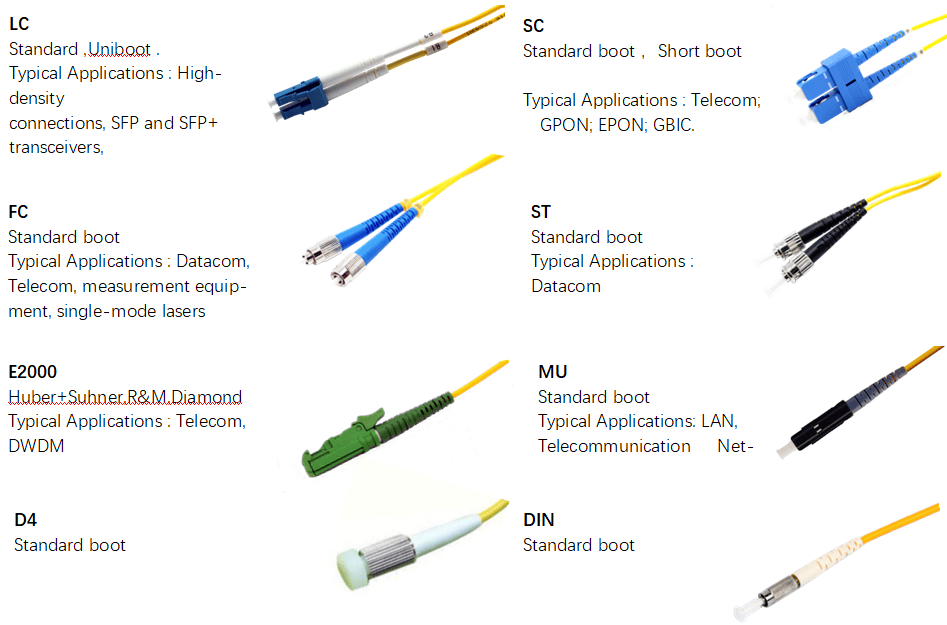

Standard connectors LC, SC, ST, FC, E2000, MU, D4, Din, LX.5, SMA are available
High precious connector guarantee Good Repeatability and Interchangeability
OEM Housing kits Color, OEM boot Colors
Customized Design for special demand
High quality SM Ceramic ferrule, Good concentricity<0.5um
High quality MM Ceramic ferrule, Good concentricity<4.0um
Polishing Method
End-face Quality (SM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
25 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
End-face Quality (MM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 65 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
65 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
Length Tolerance
| Overall Length(L) (m) |
length of tolerance (cm) |
| 0<L<1 |
+5/-0 |
| 1<L<10 |
+10/-0 |
| 10<L<40 |
+15/-0 |
| 40<L |
+0.5% x L/-0 |
