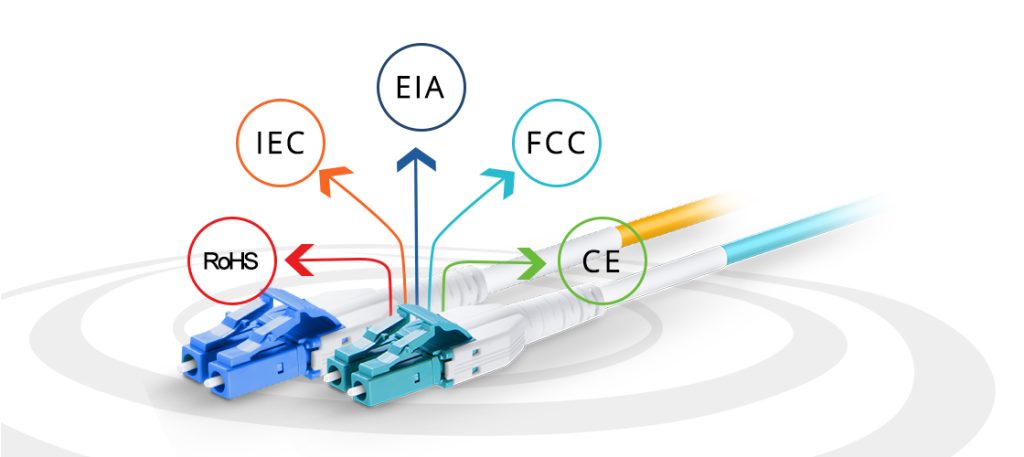

Uniboot LC-LC Duplex 3.0mm Fiber patch cable
The Uniboot patch cord utilizes a special “round duplex” cable that allows duplex transmission within a single cable, and it reduces cable management space comparing to standard patch cords.
As the networking environment of today becomes increasingly dependent on high speed and high density solutions, effective cable management is a real issue. The key concern is how to manage more cable in a smaller amount of space.
Our uniboot fiber patch cord reduces cable management space by up to 68% compared to standard patch cords. The patch cord utilizes a special “round duplex” cable that allows duplex transmission within a single 3mm cable. As a result of these features our uniboot patch cord offers improved airflow and visibility of equipment within a high density network environment. Our uniboot patch cord is available in a wide variety of cable materials including LSZH, Plenum and
Riser.
OMC’s LC Uniboot cable assemblies offer the best solution for high-density applications, data centers, interconnect and cross connector, private networks and premise installations.
| Fiber Connector |
Uniboot LC to Uniboot LC |
Fiber Type |
9/125μm,
50/125μm,
62.5/125μm, |
| Cable Jacket |
2.0mm/3.0mm, PVC/LSZH |
Fiber Counts |
2 Fibers |
| Insertion Loss |
≤0.3dB(IEC Grade C)
≤0.12dB(IEC Grade B) |
Return Loss |
SM UPC ≥ 50dB(min)
SM APC ≥ 60dB(min)
MM PC ≥ 35dB(min) |
| Pull-out Force |
100N |
Durability |
500 Cycles |
| AB Polarity Switchable |
Not available |
Operating Temperature |
-40 to + /2.0mm85°C |
Geometric Specification (only for 3D interferometer tested)
| Items |
Connector |
PC End-face |
APC End-face |
| Radius of Curvature |
SC/FC/ST |
10~25 mm |
5~12 mm |
| LC/MU |
7~25 mm |
5~15 mm |
| Apex Offset |
≤50 um |
| Fiber Spherical Height |
+/- 100 nm |
| Angular Offset |
—— |
8°± 0.5° |

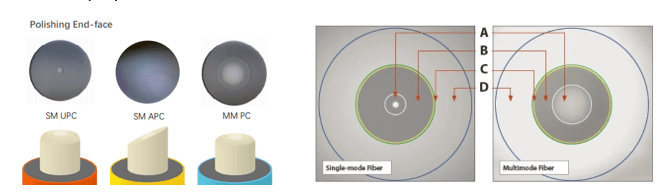

End-face Quality (SM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
25 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
End-face Quality (MM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 65 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
65 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |

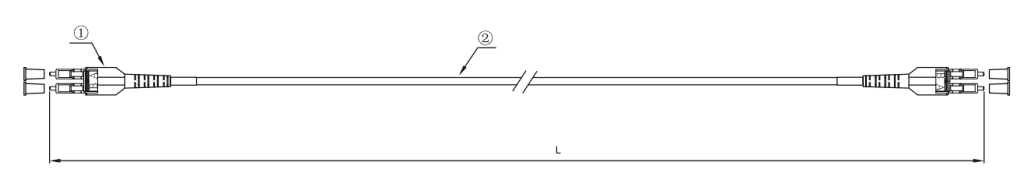

Length Tolerance
| Overall Length(L)(m) |
length of tolerance(cm) |
| 0<L<1 |
+5/-0 |
| 1<L<10 |
+10/-0 |
| 10<L<40 |
+15/-0 |
| 40<L |
+0.5% x L/-0 |
High-Quality & More Compact- 60% Increase in Density

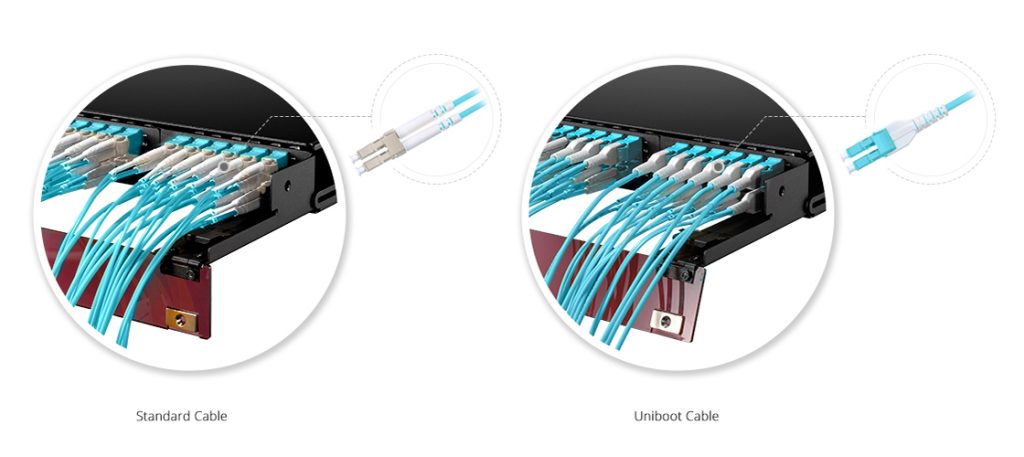

Uniboot Cable VS. Standard Cable
Uniboot cable has thinner body and can reduce more surface area than standard cable.
