Single Fiber Heatshrink Splice sleeve——transparent

Share to:

Description

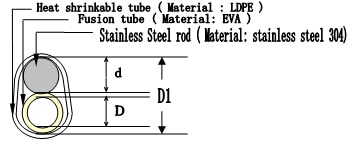

Special designed cross-linked Clear Heat Shrinkable tubing, with Clear fusion tubing liner, providing strength member and protection to fiber optical splices. Consist of a rod of stainless steel, hot fusion tubing and cross-linked polyolefin. To rebuild the coating of fiber, providing mechanical strength at the fusion joint area and keeping optical transmission properties.



 Features

  • Single holed (preshrunk) ends eliminates improper fiber threading
  • Smooth stainless steel reinforcing member ends decrease the risk of fiber damage during installation
  • Extended liner length prevents contact between the fiber and the backbone
  • Clear sleeve design persign permits easy centering of splice before heating
  • Sealing structure makes the splice free from effect of temperature and humidity from environment
  • RoHS & REACH Compliant.
  • Outer tube meets SAE AMS-DTL-23053/5 Class

Specification

Operating temperature range
Operating temperature:-45℃~100℃/-45℃~135℃
Minimum shrink temperature: 80℃
Minimum fully recovery temperature:120℃

Part Number   O.D. after Recovery (mm) Length

 (mm)

Fusion tube(D) Steel rod(D) Package (pcs/bag)
      I.D.

(mm)

Length (mm)  O.D.

(mm)

Length (mm)
Larger Sleeves
FOSP-61 3.0±0.1 60 1.5 61 1.5 56 100
FOSP-60 3.0±0.1 60 1.5 60 1.5 55 100
FOSP-60B 2.8±0.1 60 1.3 60 1.5 56 100
FOSP -45 3.0±0.1 45 1.5 45 1.5 41 100
FOSP -40 3.0±0.1 40 1.5 40 1.5 36 100
FOSP -23 3.0±0.1 23 1.5 23 1.5 18 100
Standard Sleeves
FOSP -61M 2.6±0.1 60 1.3 60 1.2 56 100
FOSP -45M 2.6±0.1 45 1.3 45 1.2 41 100
FOSP -40M 2.6±0.1 40 1.3 40 1.2 36 100
FOSP -30M 2.6±0.1 30 1.3 30 1.2 26 100
FOSP -25M 2.6±0.1 25 1.3 23 1.2 21 100
Mini Sleeves
FOSP-40T-S 1.5±0.1 40 0.5 40 0.7 39.5 100
FOSP -40TS 1.9±0.1 40 1.2 40 0.7 39.5 100
FOSP -60T 2.0±0.1 60 0.5 60 1.0 56 100
FOSP -40T 2.0±0.1 40 0.5 40 1.0 36 100
FOSP -60A 2.4±0.1 60 1.4 60 1.0 56 100
FOSP -40A 2.4±0.1 40 1.4 40 1.0 36 100
FOSP -45A 2.4±0.1 45 1.4 45 1.0 41 100
Micro Sleeve
FOSP -40S 1.4±0.1 40 0.5 40 0.5 39.5 100
FOSP -25S 1.4±0.1 25 0.5 25 0.5 24.5 100
FOSP -25SS 1.4±0.1 25 0.4 25 0.5 24.5 100
FOSP -18S 1.4±0.1 18 0.5 18 0.5 17 100
FOSP -15S 1.4±0.1 15 0.5 15 0.5 15 100
FOSP -10S 1.4±0.1 10 0.5 10 0.5 10 100
