Single Fiber Heatshrink Splice sleeve——Colorful

Share to:

Description

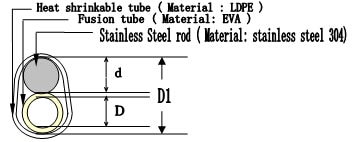

Special designed cross-linked Clear Heat Shrinkable tubing, with Clear fusion tubing liner, providing strength member and protection to fiber optical splices. Consist of a rod of stainless steel, hot fusion tubing and cross-linked polyolefin. To rebuild the coating of fiber, providing mechanical strength at the fusion joint area and keeping optical transmission properties.



 Features

  • Single holed (preshrunk) ends eliminates improper fiber threading
  • Smooth stainless steel reinforcing member ends decrease the risk of fiber damage during installation
  • Extended liner length prevents contact between the fiber and the backbone
  • Clear sleeve design persign permits easy centering of splice before heating
  • Sealing structure makes the splice free from effect of temperature and humidity from environment
  • RoHS & REACH Compliant.
  • Outer tube meets SAE AMS-DTL-23053/5 Class

Specification

Operating temperature range
Operating temperature:-45℃~100℃/-45℃~135℃
Minimum shrink temperature: 80℃
Minimum fully recovery temperature:120℃

Part Number   O.D. after Recovery (mm) Length

 (mm)

Fusion tube(D) Steel rod(D) Package (pcs/bag)
      I.D.

(mm)

Length (mm)  O.D.

(mm)

Length (mm)
Colorful Sleeve
FOSP-60AM (red) 2.5±0.1 60 1.3 60 1.1 56 100
FOSP-60AM (purple) 2.5±0.1 60 1.3 60 1.1 55 100
FOSP-60AM(orange) 2.5±0.1 60 1.3 60 1.1 56 100
FOSP-60AM(green) 2.5±0.1 60 1.3 60 1.1 56 100
FOSP-60AM(yellow) 2.5±0.1 60 1.3 60 1.1 56 100
FOSP-60AM(blue) 2.5±0.1 60 1.3 60 1.1 56 100
