Simplex armored patch cord

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

MTRJ: TIA/EIA, FOCIS12, GR-326. IEC and JIS C5973.

DIN: IEC61754-3

E2000: IEC61754-15



Share to:

Description

Armored Patch cable (Patch cord) is a patch cord which could be used as cooper patch cable. They adopted a cable with soft metal protection tube and standard connector. The apply place are in the floor corner. Those products could protect the fiber bite by mouse and ant. Although armored fiber optic cables are strong, they are actually as flexible as standard fiber optic patch cords; they can be bending randomly without being broken. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.



Products Materials

Fiber :G652D,G657A1,G657A2/B2,G657B3,OM1,OM2, OM3, OM4, OM5 Fibers

Cable OD:2.0mm,2.4mm,2.6mm,3.0mm

Cable Jacket: PVC (Riser/OFNR),LSZH,Plenum (OFNP)  Jacket materials

Minimum allowable Tensile Strength
(N)
minimum allowable Crush Load
(N/100mm)
Minimum Bending Radius
(MM)
short term long term short term long term short term long term
1000 300 1000 500 20D 10D
1000 300 1000 500 20D 10D
1000 300 1000 500 20D 10D

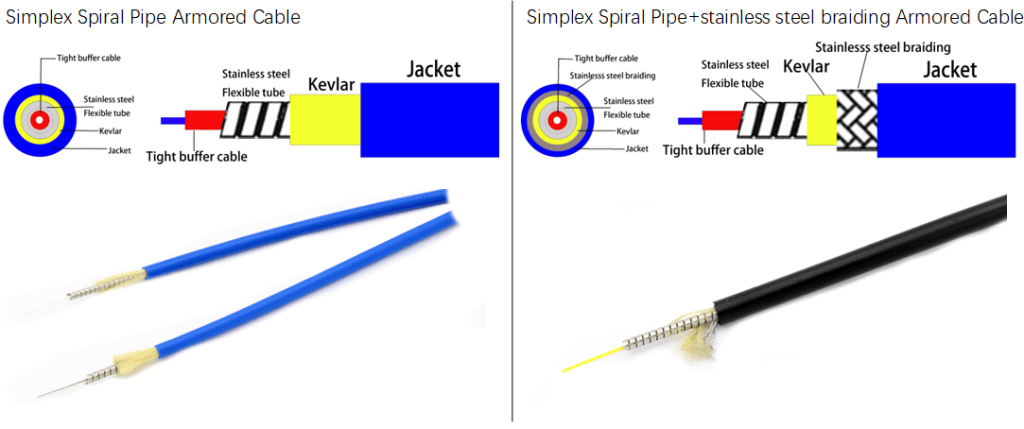

Advantage of Armored cable

Specification

Connector SC,LC,ST,FC,MU,E2000,MTRJ… Polish PC,UPC,APC
Fiber Mode 9/125μm, 50/125μm, 62.5/125μm, Jacket Color SM:Yellow/Blue/White;

OM1&OM2: Grey/Orange;

OM3:Aqua;

OM4:Aqua/Violet/ Magenta

Cable OD 2.0mm,2.4mm,2.6mm,3.0mm Wavelength SM:1310/1550nm

MM:850nm

Cable Structure Simplex Jacket Material LSZH/PVC/OFNR/OFNP
Insertion loss 0.3dB(IEC Grade C)

0.12dB(IEC Grade B)

Crush Resistance(N/100mm) Long term 3000;

short term:5000

Return loss SM UPC ≥ 50dB(min)

SM APC ≥ 60dB(min)

MM PC ≥ 35dB(min)

Interchangeability &Vibration ≤0.2dB
Tensile Strength(N) Long term 100;

short term:200

Operation&Storage temperature -45~85°C
Items Parameter
Polishing PC APC
ROC SC/FC/ST 10 ~ 25mm 5 ~ 12mm
LC/MU 7~ 25mm 5 ~ 12mm
Apex Offset ≤ 50um
Fiber Spherical Height ±100nm
Angle —— 8 ± 0.5

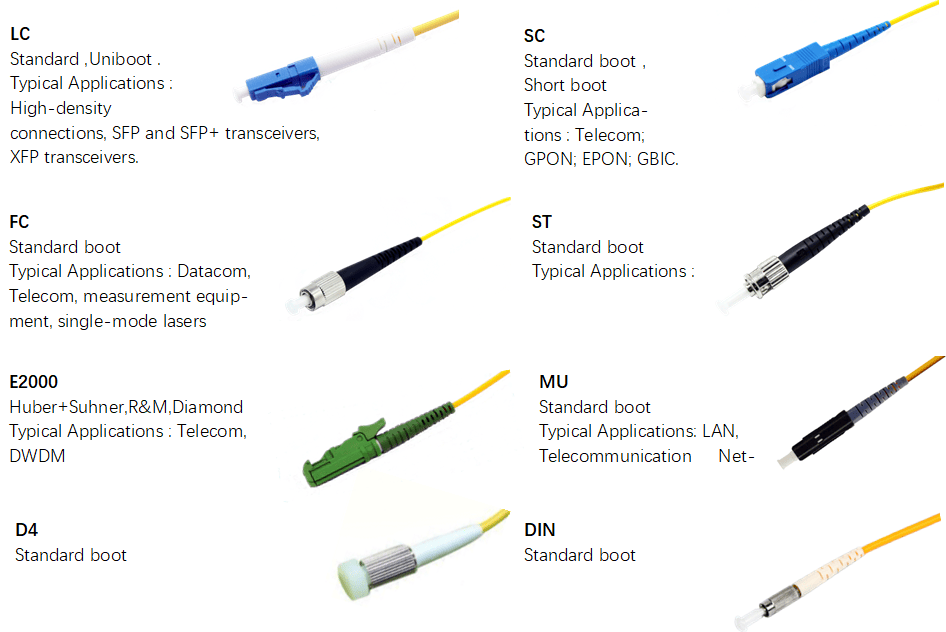

Connector Type



Standard connectors LC, SC, ST, FC, E2000, MU, D4, Din, LX.5, SMA are available

High precious connector guarantee Good Repeatability and Interchangeability

OEM Housing kits Color, OEM boot Colors

Customized Design for special demand

High quality SM Ceramic ferrule, Good concentricity<0.5um

High quality MM Ceramic ferrule, Good concentricity<4.0um



Polishing Method



End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



Length Tolerance

Overall Length(L) (m) length of tolerance (cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0
