Simplex 900um Pigtail

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

E2000: IEC61754-15



Share to:

Description

The fiber optic pigtail is normally a tight/Tight buffered fiber cable with a connector pre terminated on one end and exposed fiber on the other. The end is stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return loss and low attenuation. Make sure your network is reinforced with OMC’s fiber pigtails, as ours are manufactured of superior quality materials.

The Pigtail are available in both single and multimode versions with either APC or UPC polish types. Our fiber pigtails come with a partial outer jacket protecting the Tight/Loose buffers from damage. If installed in a high density application, the outer jacket can be easily removed to accommodate a tighter bend radius for the pigtails.

We offer Individual single pigtails, Discounted 6 packs, or 12 Packs.  Also 12 fiber or 6 fiber jacketed pigtails .



Features

  • High quality zirconia ferrules.
  • Good repeatability and interchange.
  • Flame-retardant, rugged and durable jacket.
  • 100% optically tested for insertion loss to ensure high quality

Specification

Insertion loss ≤0.12dB mean, ≤0.25dB max.

for >97% of sample

Interchangeability ≤0.2dB
Return loss SM UPC≥50dB

SM APC≥60dB

MM PC≥35dB

Vibration ≤0.2dB
Operating temperature -40~75°C Maximum pulling force 6N(900um cable)

70N(2.0mm cable)

100N(3.0mm cable)



Products Materials

G652D,G657A1,G657A2/B2,G657B3,OM1,OM2, OM3, OM4, OM5 Fibers

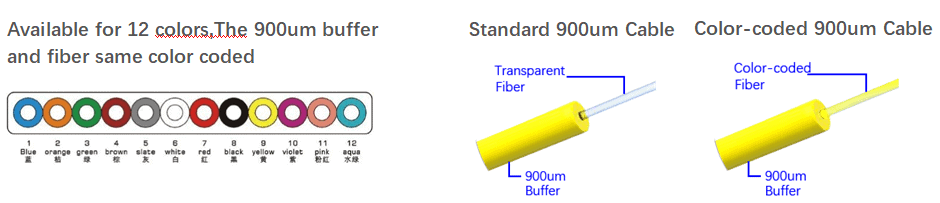

900um, 1.2mm,1.6mm,1.7mm,1.8mm,2.0mm,2.4mm,2.6mm,2.8mm OD cable

PVC (Riser/OFNR),LSZH,Plenum (OFNP)  Jacket materials

High quality SM Ceramic ferrule, Good concentricity<0.5um

High quality MM Ceramic ferrule, Good concentricity<4.0um

Standard connectors LC, SC, ST, FC, E2000, MU, D4, Din, LX.5, SMA are available

High precious connector guarantee Good Repeatability and Interchangeability

OEM Housing kits Color, OEM boot Colors

Customized Design for special demand



Standard Compliance

  • TIA 604 (FOCIS)
  • TIA/EIA 492AAAE
  • IEC 61754
  • IEC 60793-2-10
  • IEC61300-3-35
  • YD/T1272.1-2003
  • RoHS, ISO9001 Compliant



Application

  • Data Center
  • Enterprise
  • Fiber to the X (FTTX)
  • LAN and WAN
  • CATV Network
  • Telecommunications Network

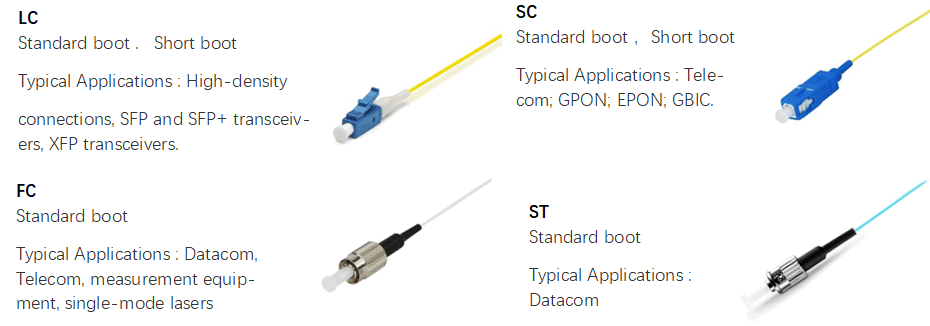

Connector Type



Random Mating IL Performance Grades

Connector Grade Master Cord 1 Random Mating Average Random Mating for 97%




Grade According to IEC 61753-1

Grade A Not Defined Yet Not Defined Yet Not Defined Yet
Grade B ≤0.2dB ≤0.12dB ≤0.25dB
Grade C ≤0.3dB ≤0.25dB ≤0.5dB
Grade D ≤0.3dB ≤0.5dB ≤1.0dB

Notes:

1 A master cord is  a perfect cord that has absolute low loss and is used as a base to measure and define the insertion loss of the tested cord.

2 For Maximum IL, 97% to meet the specification.

3 For Random mating Grade A, specification is not determined yet.



Geometric Specification( if Customer requested)

Items Parameter

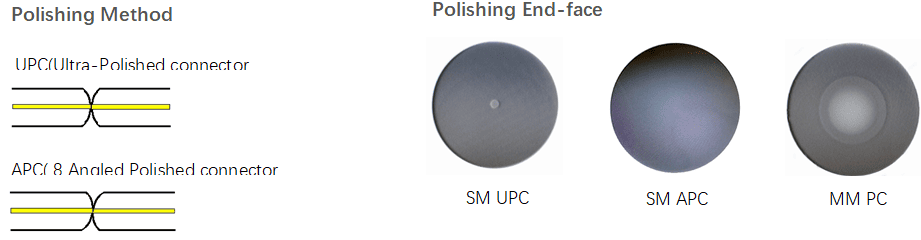

Polishing PC APC
ROC SC/FC/ST 10 ~ 25 5 ~ 12
LC/MU 7~ 25 5 ~ 12
Apex Offset ≤ 50
Fiber Spherical Height ±100
Angle ± 0.5 8 ± 0.5





End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

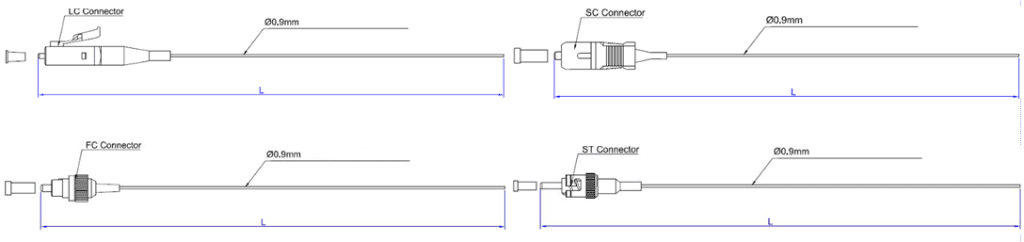

Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0
