SC Simplex adapter With inner Shutter are developed to couple and mate two SC connector plugs. With increasingly high-powered active devices being used in today’s networking and telecommunication platforms, eye safety and connector cleanliness are an absolute necessity. OMC’s SC adapter with Internal shutter has been designed to meet this growing need.
You can actuate this integrated, retractable shutter inside the adapter body by inserting the SC connector into the adapter. The shutter automatically opens as you insert the SC connector, and closes as you extract it. Due to the special design of the shutter, it will not touch the ferrule end face when you insert a connector, thus preventing end-face damage. The internal shutter prevents eye exposure to lasers and provides protection from dust and other contaminants.
OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
- Provides eye safety by attenuating laser light when the mated connector is removed
- 100% automatic shutter mechanism requiring no operator handling of the shutter chip
- Complies with IEC 61754-4 standard

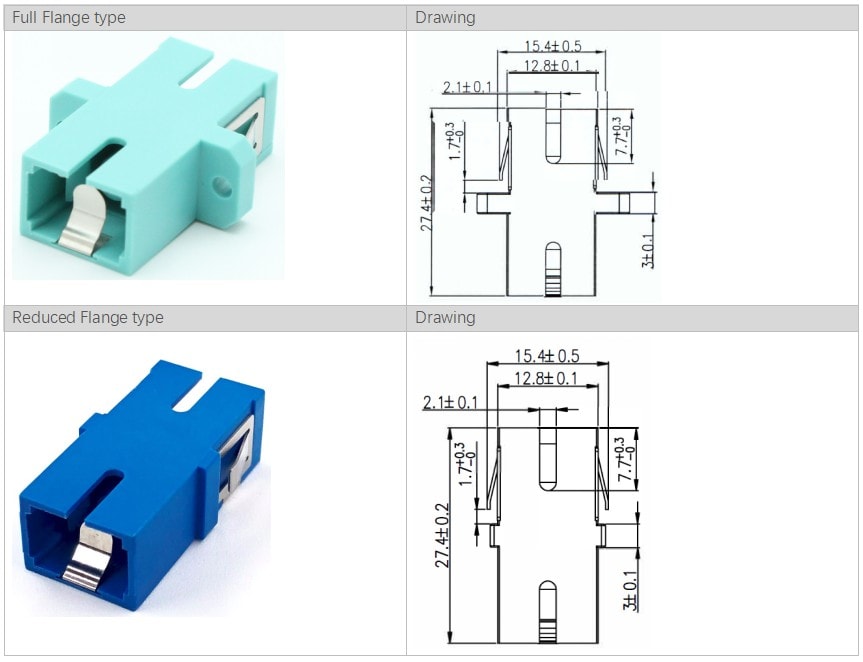

- Available in Flanged and Flangeless options
- Push-pull locking mechanism for easy installation
- Precision connection with sleeve
- Low insertion loss, High Return loss
- Good interchangeability and reliability
- Meet IEC and ROHS standards
- High precision of mechanical dimensions Accuracy
