It’s a kind of Pro-connectorized FTTH patch cord assembly with OMC’s Own Patent Bullet SC APC connecter and G657A1&A2 Armored Simplex LSZH high tensile strength cable.
This Bullet SCAPC connector can be threaded though a Pipe with Inner Diameter>6mm. This is a last cable in FTTH project. It will be used between FAP box，FTB，FDB， Fact plate and ONU/ONT tec.
With easy accessibility to the fiber and simple installation, This kind of FTTH drop patch cable can be directly connected to the housing rooms.
Specification
Optical Specifications
Connector
Standard SC-Bullet SC
Polish
APC-APC
Fiber Mode
9/125μm, G657A1&A2
Jacket Color
White
Cable OD
3.0mm
Wavelength
SM:1310/1550nm
Cable Structure
Simplex
Jacket Material
LSZH
Insertion loss
≤0.3dB(IEC Grade C1)
Crush Resistance(N/100mm)
Long term 100;
short term:500
Return loss
SM APC ≥ 60dB(min)
Interchangeability &Vibration
≤0.2dB
Tensile Strength（N）
100-150N
Operation&Storage temperature
-20 ~ +70°C
End-face Quality (SM)
Zone
Range (μm)
Scratches
Defects
Reference
A: Core
0 to 25
None
None
IEC 61300-3-35:2015
B: Cladding
25 to 115
None
None
C: Adhesive
115 to 135
None
None
D: Contact
135 to 250
None
None
E: Rest of ferrule
None
None
Optical and Mechanical Performance of the drop cable
IEC 60794-1-2 Method F1
-Temperature cycling schedule :25°C →-20°C→60°C→-20°C→60°C→25°C-Soak time at each temperature: 12h
Attenuation increment:
≤ 0.10 dB/km@1550nm
Optical characteristics
Insertion Loss (IL)
As per 4.2.1 in Telcordia GR-326- CORE.
Type of light source: Laser
(λ= 1310 nm & 1550 nm)
New product
IL-max: ≤0.3 dB.
Result at the end of the test
IL-max: ≤0.3 dB.
Return Loss (RL)
As per 4.2.1 in Telcordia GR-326- CORE.
Type of light source: Laser (λ= 1310 nm & 1550 nm)
New product RL: ≥55 dB.
Result at the end of the test RL: ≥55 dB.
Mechanical characteristics
Straight Pull Test
As per 4.4.3.4 in Telcordia GR-326- CORE.
Apply 4,5 kgf (10 lbf) (0 °) 5 sec and
then 6,8 kgf (15 lbf) (0 °) 5 sec.
During the test (no load)
ΔIL-max : ≤ 0.5 dB.
ΔIL: ≤ 0.3 dB. RL: ≥ 60 dB
90° Side Pull Test
As per 4.4.3.4 in Telcordia GR-326- CORE.
Apply 1,5 kgf (3,3 lbf) (90 °) 5 sec
and then 2,3 kgf (5 lbf) (90 °) 5 seg.
End of Test Criteria
As per 4.4.3.9 in Telcordia GR-326- CORE.
IL-max : ≤ 0.5 dB.
ΔIL: ≤ 0.3 dB. RL: ≥ 60 dB

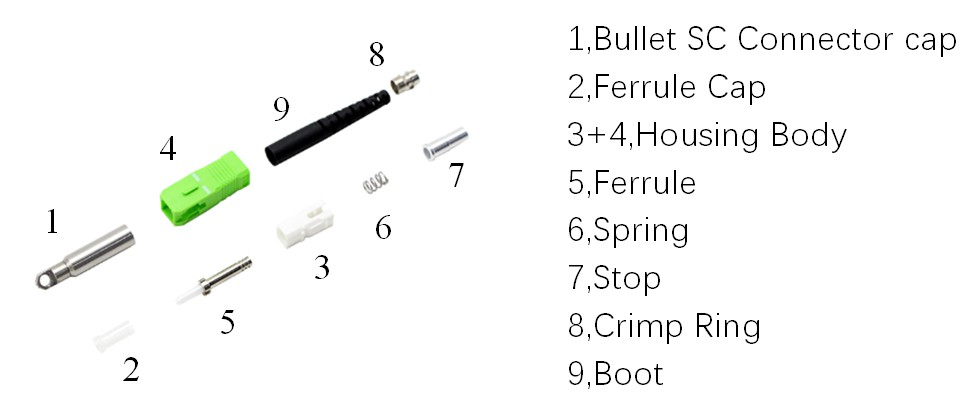

OMC’s Own Patent Bullet SCAPC connector
Pulling Eye Force
150N-200N
Material
SUS304
Boot
3.0mm
Drop cable
Found cable:3.0mm
Flat cable:2x3mm;2x.5.0mm
LSZH 3.0mm Simplex Armored Cable
The armored cable is a special cable with a stainless-steel tube inside the cable which could protect the fiber bite by ant, mouse related rodent animals.

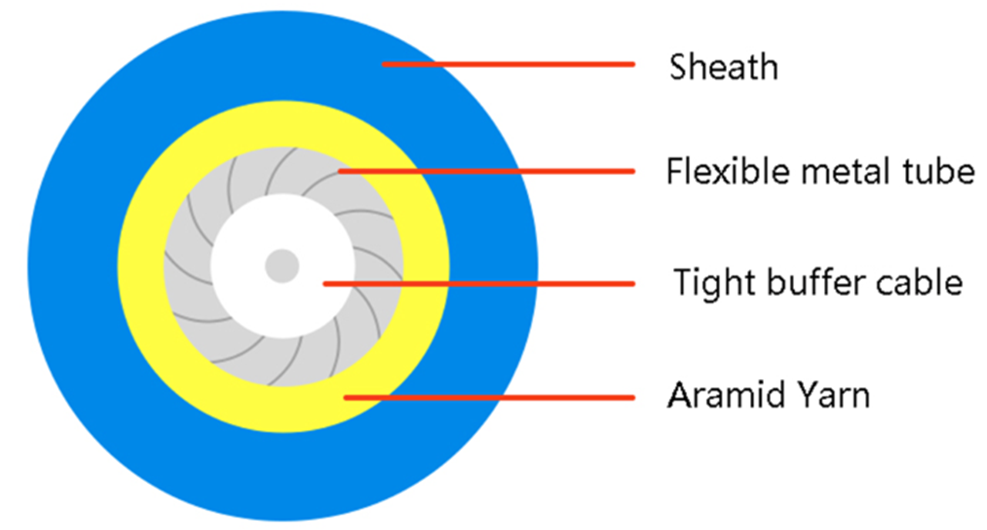

The Simplex Armored cable consists of a 0.6mm or 0.9mm tight buffer fibers, An armored flexible metal tube, a layer of Aramid yarn, and an outer jacket. It is an ideal choice for direct connection. It’s the easiest fiber cable to install where direct termination of connectors to sub-units and direct run to panels and equipment is desired.
This cable could be used as normal electric wire.
Item
Contents
Unit
Value
Fiber type
/
/
G652D,G657A1,G657A2,G657B3,OM2,OM3,OM4
Cable diameter
±0.3
mm
3.0
Tight buffer
Material
/
PVC,LSZH
Diameter
mm
0.6
Armored unit
Material
/
SUS204 Stainless-steel Spiral Tube
Diameter
mm
1.4-1.5
Strength member
Material
/
Aramid Yarn
Outer sheath
material
/
LSZH
Color
/
Blue,Yellow,Black, Orange,Grey,Aqua
Cable weight
±5%
kg/km
18
Item
Contents
Value
Max. tensile load
Short term
400N fiber strain≤0.6%
Long term
200N
Max. crush resistance
Short term
1000N/100mm
Long term
500N/100mm
Torsion
Load:100N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.
Impact
Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5; No obvious addition attenuation, no fiber break and no cable damage.
Min. bending radius
Installation
20 x cable diameter
Operation
10 x cable diameter
Application-Bullet SC APC connector

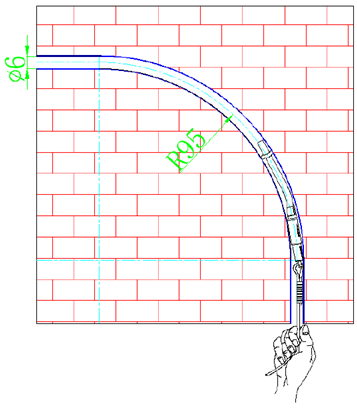

1, Suit for
Pipe with Inner Diameter>6.5mm
R>95mm

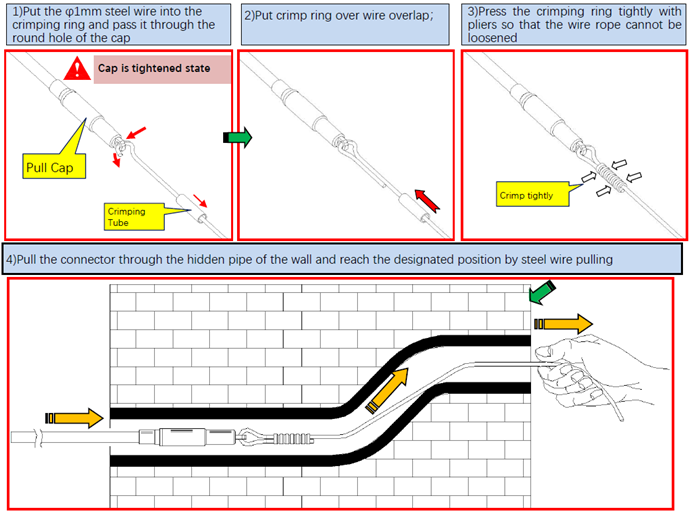

2, How to thread though Pipe in wall?

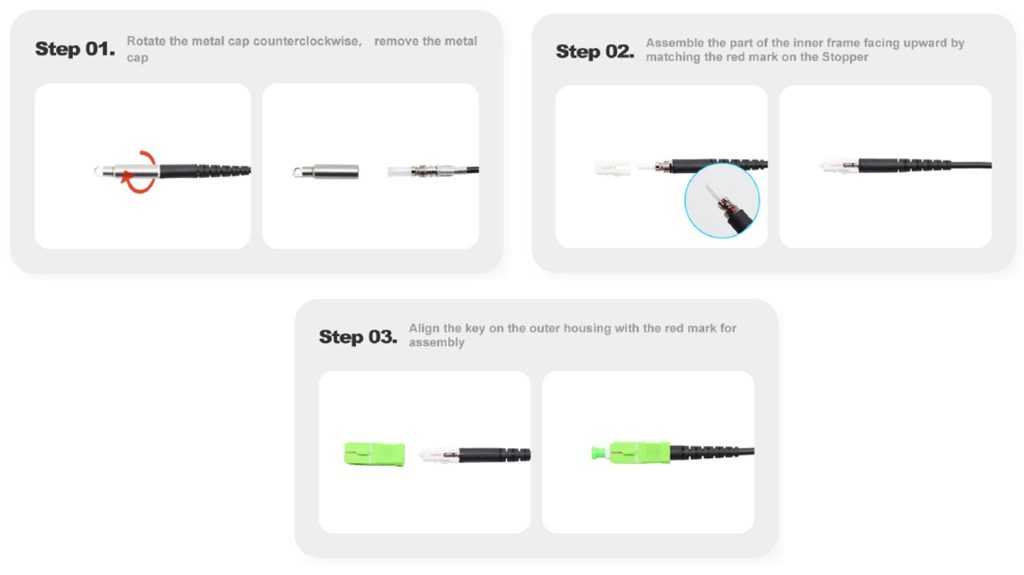

3, How to Assembly it in FTTH construction site?
Length Tolerance
Overall Length(L) (m)
length of tolerance (cm)
0<L<1
+5/-0
1<L<10
+10/-0
10<L<40
+15/-0
40<L
+0.5% x L/-0
OEM Services
1.Cable color, printing word, material of cable jacket, connector’s color
2.OEM Label, Identify ring, cable’s label，box, shipping marks
