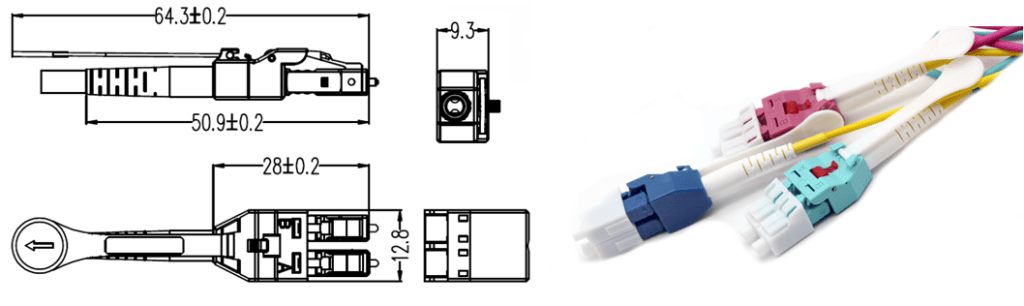

The Polarity Switchable uniboot LC connector With Pull Tap is a Chinese independent intellectual property rights connector. It has a unique design that allows to switch polarity without using any tooling. The Pull Tap is very easy to grab to pull out from LC adapter. Makes the installation Job become easy and high efficient.
The Uni-boot LC patch cable utilizes a special “round duplex” cable that allows duplex transmission within a single 2mm cable ,cable materials including LSZH, Plenum and Riser.
Our Polarity Switchable uniboot LC fiber patch cable reduces cable management space by up to 68% compared to standard patch cables. It reduces cable management space comparing to standard patch cables. As a result of these features our uniboot patch cable offers improved airflow and visibility of equipment within a high density network environment.
OMC’s LC Uniboot cable assemblies offer the best solution for high-density applications, data centers, interconnect and cross connector, private networks and premise installations.
Features
- High quality zirconia ferrules.
- Good repeatability and interchange.
- Flame-retardant, rugged and durable jacket.
- 100% optically tested for insertion loss to ensure high quality
| Fiber Connector |
Pull Tab Uniboot LC to
Pull Tab Uniboot LC |
Fiber Type |
SM:Yellow/Blue/White;
OM1&OM2: Orange;
OM3:Aqua;
OM4:Aqua/Violet/ Magenta |
| Cable OD&Jacket |
1.6mm/1.7mm,/1.8mm/2.0mm PVC/LSZH |
Fiber Counts |
2 Fibers |
| Insertion Loss |
≤0.3dB(IEC Grade C)
≤0.12dB(IEC Grade B) |
Return Loss |
SM UPC ≥ 50dB(min)
SM APC ≥ 60dB(min)
MM PC ≥ 35dB(min) |
| Pull-out Force |
100N |
Durability |
500 Cycles |
| AB Polarity Switchable |
Available |
Operating Temperature |
-40 to + 85°C |
Products Materials
Polarity Switchable uniboot LC connector with Chinese independent intellectual property rights. Meet and Compatible with many International Standard
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
Perfect match with Standard LC ferrule, No need to develop special LC ferrule flange, Save cost
High quality SM Ceramic ferrule, Good concentricity<0.5um
High quality MM Ceramic ferrule, Good concentricity<4.0um
G652D,G657A1,G657A2/B2,G657B3,OM1,OM2, OM3, OM4, OM5 Fibers
1.6-2.0mm OD Uni-tube cable;
PVC (Riser/OFNR)，LSZH，Plenum (OFNP) Jacket materials
Standard Compliance
- TIA 604 (FOCIS)
- TIA/EIA 492AAAE
- IEC 61754
- IEC 60793-2-10
- IEC61300-3-35
- YD/T1272.1-2003
- RoHS, ISO9001 Compliant
Application
- Data Center
- Enterprise
- Fiber to the X (FTTX)
- LAN and WAN
- CATV Network
- Telecommunications Network
Geometric Specification( if Customer requested)
| Items |
Parameter |
| Polishing |
PC |
APC |
| ROC |
LC |
7~ 25 |
5 ~ 12 |
| Apex Offset |
≤ 50 |
| Fiber Spherical Height |
±100 |
| Angle |
± 0.5 |
8 ± 0.5 |
Polishing Method
End-face Quality (SM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
25 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
End-face Quality (MM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 65 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
65 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
Length Tolerance
| Overall Length(L)(m) |
length of tolerance(cm) |
| 0<L<1 |
+5/-0 |
| 1<L<10 |
+10/-0 |
| 10<L<40 |
+15/-0 |
| 40<L |
+0.5% x L/-0 |
