OP(SCAPC)-SCAPC G657A2 SX 4.5×8.0mm FTTH Flat Drop cable Patch cord

Share to:

Description

It’s a kind of FTTH patch cord assembly with 4.5*8.0mm Flat FTTH Drop Cable.It adopts lower insertion loss SC technologies, and compact cable structure, achieving fast deployment, high reliability, and durability.

This is a last cable in FTTH project. Used widely between MST,FAT, FTTX Pro-connectorized terminal box tec. With easy accessibility to the fiber and simple installation.



Features

  • Fast deployment, plug and play.
  • Double locked anti-vibration design.
  • Easy to install and uninstall.

Specification

Patch cord’s Optical Specifications

Connector OP (SC) –Standard SC Polish APC-APC
Fiber Mode 9/125μm, G657A2 Jacket Color Black/Grey
Cable OD 4.5±0.3mm x 8.1±0.3mm Wavelength SM:1310/1550nm
Cable Structure Simplex Jacket Material LSZH
Insertion loss ≤0.3dB Return loss SM APC ≥ 60dB(min)
Operation Temperature -20  ~ +70°C Install&Storage temperature -40  ~ +70°C

Remark:The IL in the table is only refer to the IL (connector). The product IL must contain the connector IL and fiber cable IL, IL all =2 x IL (connector) + IL (1km cable IL)/1000 x L (cable length).



Mechanical and Environmental Characteristics

Items Unite Specifications Reference
Span Length M 50
Tension(Long Term) N 300 IEC 61300-2-4
Tension (Short Term) N 600 IEC 61300-2-4
Crush(Long Term) N/10cm 500 IEC 61300-2-5
Crush(Short Term) N/10cm 1000 IEC 61300-2-5
Min. Bend Radius(Dynamic) mm 20D
Min. Bend Radius(Static) mm 10D
Operating Temperature -20~+60 IEC 61300-2-22
Storage Temperature -20~+60 IEC 61300-2-22



End-Face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None  IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

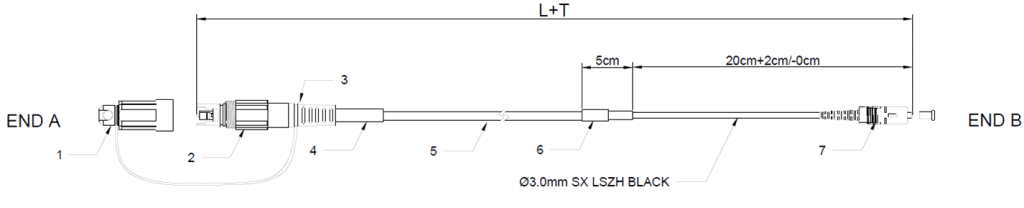

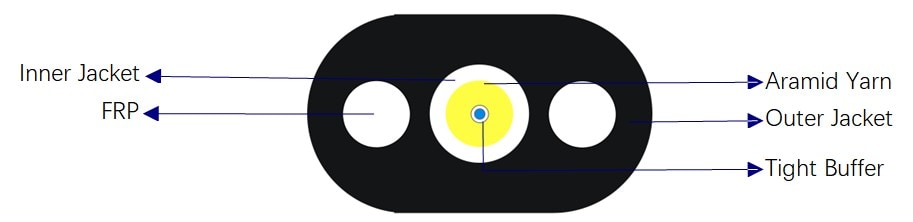

Cable Technical Data

Item Contents Unit Value
Optical Fiber model number / G657A1/G657A2
number / 1
Color / blue
Strength member Material / FRP
Diameter mm 1.6
Tight buffer color / White
material / LSZH
diameter mm 0.9
Inner jacket Diameter mm 3.0±0.1
Material / LSZH
Color / White&Black or Others
Outer jacket Diameter mm 4.5±0.3×8.1±0.3
Material / HDPE
Color / Black
Tensile performance Short term N 1350N (fiber strain≤0.8%)
Long term N 600
Crush Short term N/100mm 1000
Long term N/100mm 300



Connector Optical Specifications

Type OP SC/APC ,Compatible with OptiTap SC APC
Insertion loss Max. ≤ 0.3 dB
Return loss ≥ 60 dB
Tensile strength between optical cable and connector Load: 300N   Duration: 5s
Water proof IP67
Fall Drop height: 1.5 m

Number of drops: 5 for each plug

Test temperature: -15℃ and 45℃

Bending Load: 45 N;Duration: 8 cycles, 10s/cycle
Torsion Load: 15 N;Duration: 10 cycles ± 180°
Static side load Load: 50 N for 1h
Water proof Depth: under 3m of water. Duration: 7 days
Change of temperature Temperature: -25ºC to 70 ºC

Duration at extreme temps: 1h

Temperature change speed: 1ºC/min

Cycles: 12



Length Tolerance

Overall Length(L) (m) length of tolerance (cm)
10<L<40 +15/-0
40<L +0.5% x L/-0



Application

  • Multi-purpose Outdoor&Indoor.
  • For connection between distribution box and RRH.
  • Deployment in Remote Radio Head cell tower applications.
  • Fiber optic communications in harsh outdoor environments
  • Outdoor communication equipment connection
  • Waterproof fiber equipment SC port Remote wireless base station
  • FTTH wiring projec
