OP(SCAPC)-SCAPC G657A2 SX 3.0mm Pro-connectorized Patch cord

OMC’s Mini IP SC APC-SCAPC SM 3.0mm Waterproof patch cord is assembled with a 3.0mm OD Round Drop cable. If offers good tensile strength in installation. The Huawei connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptacle.

This cable is easily pluggable into the optical termination boxes, in a way that there is no need to open the closure to activate new subscribers. Mini SC patch cord provide a robust and sealed connection. So it have a very good waterproof characteristics. All of those features make it a best solution for fiber to the home (FTTH) connectivity.

Share to:

Specification

Patch cord’s Optical Specifications

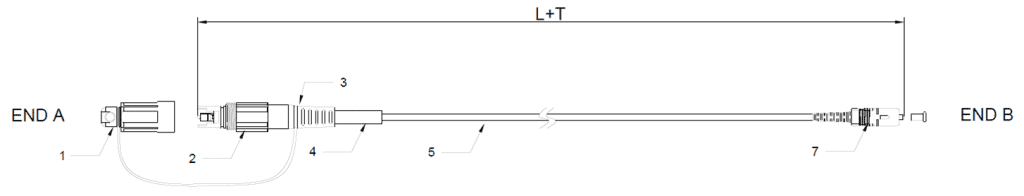

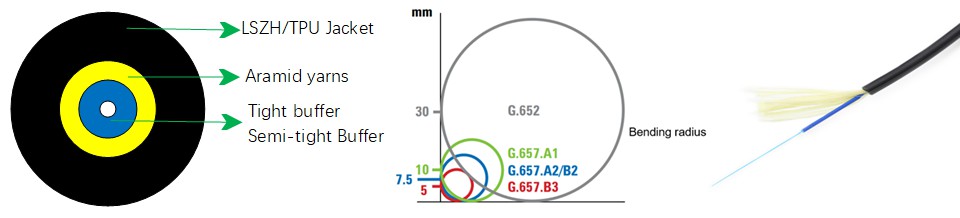

Connector	Mini IP SC –Standard SC	Polish	APC-APC
Fiber Mode	9/125μm, G657A2	Jacket Color	Black
Cable OD	3.0±0.2mm	Wavelength	SM:1310/1550nm
Cable Structure	Simplex	Jacket Material	LSZH/TPU
Insertion loss	≤0.3dB(Super low loss)	Return loss	SM APC ≥ 60dB(min)
Operation Temperature	-10 ~ +70°C	Install&Storage temperature	-40 ~ +70°C

Remark:The IL in the table is only refer to the IL (connector). The product IL must contain the connector IL and fiber cable IL, IL all =2 x IL (connector) + IL (1km cable IL)/1000 x L (cable length).

Mechanical and Environmental Characteristics

Items	Unite	Specifications	Reference
Span Length	M	50M(LSZH)/80m(TPU)
Tension(Long Term)	N	150(LSZH)/200(TPU)	IEC 61300-2-4
Tension (Short Term)	N	300(LSZH)/800(TPU)	IEC 61300-2-4
Crush（Long Term）	N/10cm	100	IEC 61300-2-5
Crush（Short Term）	N/10cm	300	IEC 61300-2-5
Min. Bend Radius（Dynamic）	mm	20D
Min. Bend Radius（Static）	mm	10D
Operating Temperature	℃	-20～+60	IEC 61300-2-22
Storage Temperature	℃	-20～+60	IEC 61300-2-22

End-Face Quality (SM)

Zone	Range (μm)	Scratches	Defects	Reference
A: Core	0 to 25	None	None	IEC 61300-3-35:2015
B: Cladding	25 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None

Cable Technical Data

Fiber Cable Parameters

Items		Description
Number of fiber		1F
Fiber type		G657A2 natural/Blue
Diameter of mode Field		1310nm: 8.8+/-0.4um, 1550:9.8+/-0.5um
Cladding diameter		125+/- 0.7um
Buffer	Material	LSZH Blue
Buffer	Diameter	0.9±0.05mm
Strength member	Material	Aramid yarn
Outer sheath	Material	TPU/LSZH With UV protection
	CPR LEVEL	CCA,DCA,ECA
	Color	Black
	Diameter	3.0+/-0.2mm

Connector Optical Specifications

Type	Mini IP SC/APC
Insertion loss	Max. ≤ 0.3 dB
Return loss	≥ 60 dB
Tensile strength between optical cable and connector	Load: 300N Duration: 5s
Water proof	IP67
Fall	Drop height: 1.5 m Number of drops: 5 for each plug Test temperature: -15℃ and 45℃
Bending	Load: 45 N Duration: 8 cycles, 10s/cycle
Torsion	Load: 15 N Duration: 10 cycles ± 180°
Static side load	Load: 50 N for 1h
Water proof	Depth: under 3m of water. Duration: 7 days
Change of temperature	Temperature: -25ºC to 70 ºC Duration at extreme temps: 1h Temperature change speed: 1ºC/min Cycles: 12
