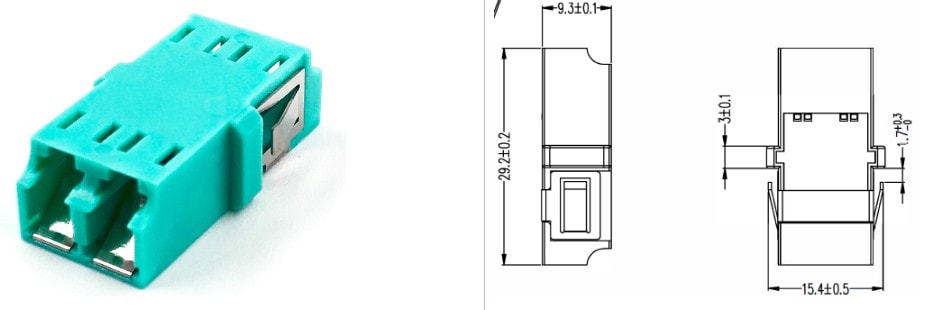

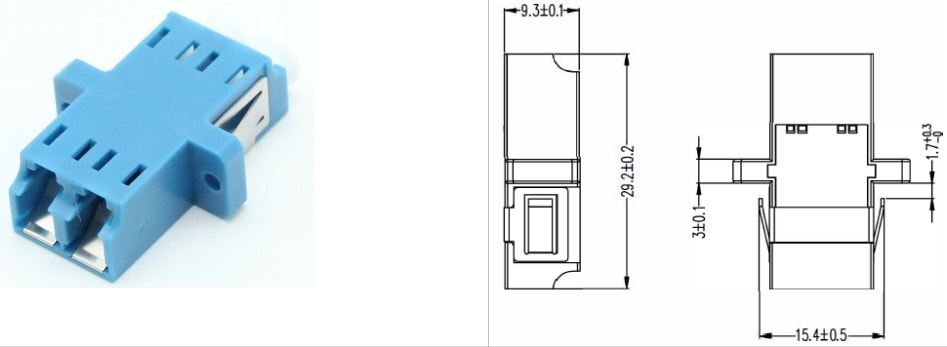

LC Duplex Adapter with internal shutter is a one-piece design adapter. The shutter is 100% automatic and requires no physical handling of the shutter door. You can actuate this integrated, retractable shutter inside the adapter body by inserting the LC connector into the adapter. The shutter automatically opens as you insert the LC connector, and closes as you extract it. Due to the special design of the shutter, it will not touch the ferrule end face when you insert a connector, thus preventing end face damage. The internal shutter prevents eye exposure to lasers and provides protection from dust and other contaminants.
With increasingly high-powered active devices being used in today’s networking and telecommunication platforms, Eye safety and connector cleanliness are an absolute necessity. OMC’s LC adapter with Internal shutter has been designed to meet this growing need.
- TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
- Complies with IEC 61754-4, Flammability UL94 V-0 standard
- Available in Flanged and Flangeless options
- Precision connection with sleeve
- Low insertion loss, High Return loss
- Good interchangeability and reliability
- Meet IEC and ROHS standards
- High precision of mechanical dimensions Accuracy
