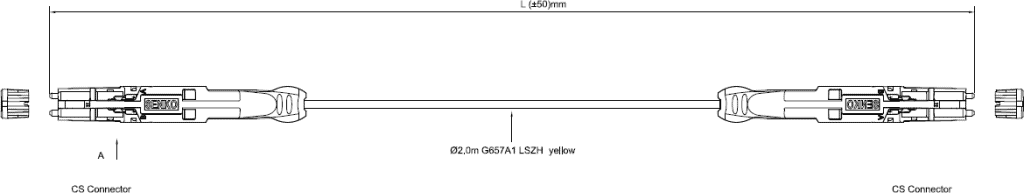

High Quality and Cost-effective SM, 2F CS-CS Fiber Patch Cord
Senko’s new CS connector is specifically designed for Data Centre 400G optimization. To accommodate the “lightspeed” upgrades currently taking place in hyperscale DCs, the reduced size CS Connector is not only capable of delivering low insertion and high return loss comparable to existing LC connectors, but with significantly reduced footprint.

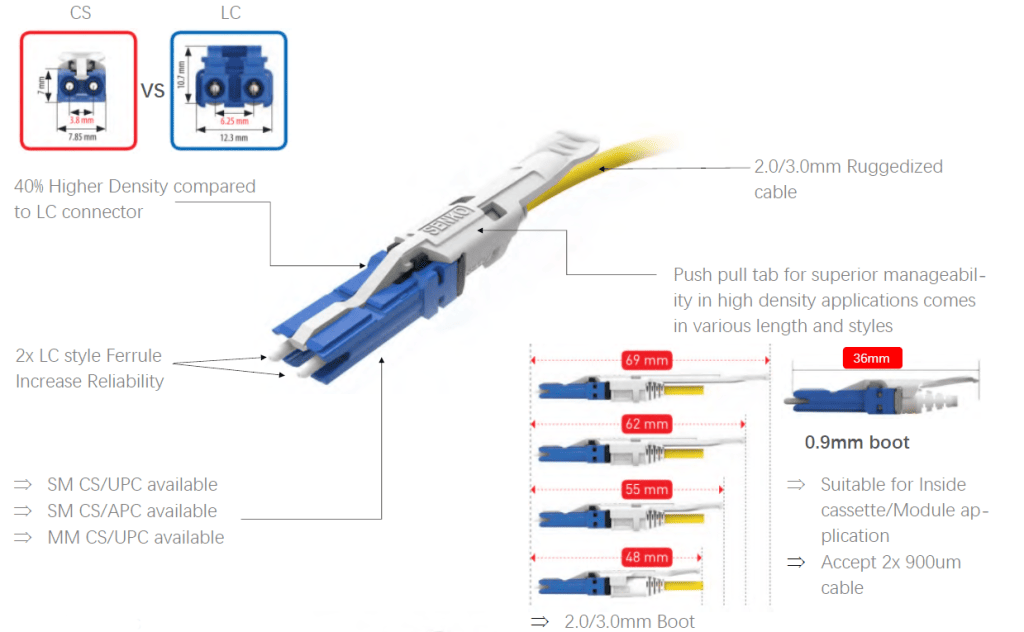

The CS connector is a miniature single-position plug which is characterized by duo cylindrical, spring-loaded butting
ferrule(s) of a 1.25 mm typical diameter, and a push-pull coupling mechanism. The optical alignment mechanism of the connectors is a rigid bore sleeve or a resilient sleeve.

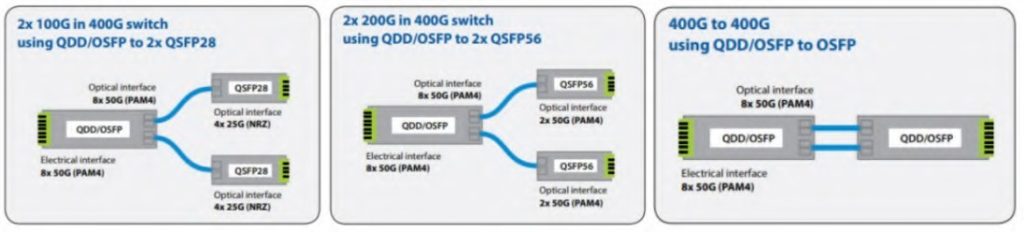

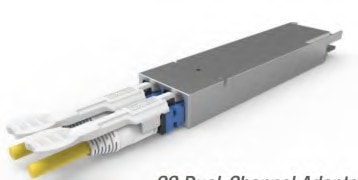

The CS connector meets the requirement for 2x100G/200G CWDM4 transceivers requiring two pairs of TX/RX. Our CS Cable Assembly support next-generation 200/400 Gbps QSFP-DD and OSFP transceivers with optimized performance.
OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit
Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.
