FTTH fiber faceplate 4 cores FS-4D

Share to:

Description

4 ports Fiber socket/Fiber Face Plate

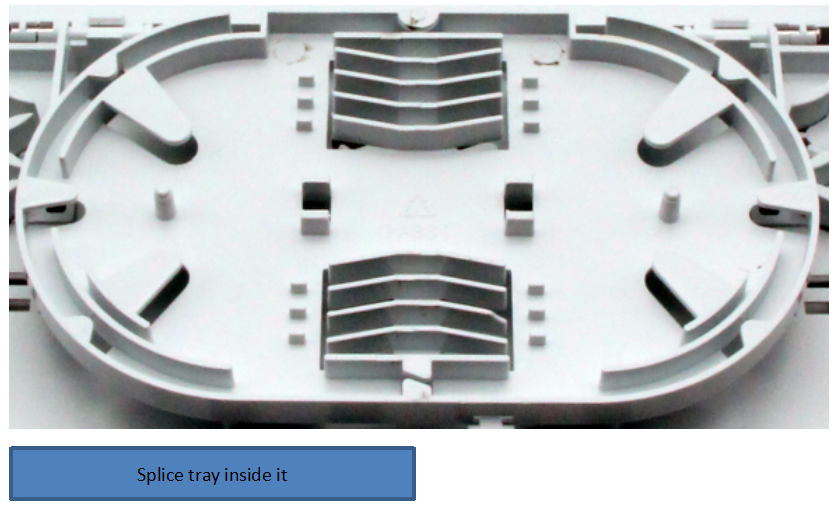

Fiber socket is an outlet that could be offer four,Eight fiber channel signals. It is used as a termination point for the drop cable to connect with patch cord in FTTH indoor application. It integrates fiber splice, termination storage and cable connection in one solid protection box.



 Features:

  • Water-proof design with IP-45 Protection level.
  • Integrated with cable termination and management rods
  • Manage fibers in a reasonable fiber radius(30mm) condition. High quality industrial anti-aging ABS plastic material.
  • Suitable for the wall mounted installation. Suitable for FTTH indoor application.
  • 4/8 port cable entrance for drop cable or patch cable.
  • Fiber adapter can be installed in the rosette for patching.



Suitable for three splice way:

  • pigtail + Mechanical Splicer+ Adapter
  • pigtail + fused splicedSleeve + Adapter
  • fast installation connector + Adapter

Specification

Part NO Material Size Max Capacity Mounting Way Package Color
FS-4D Industrial ABS L*W*H(mm) 152*110*30 SC Simplex 4 Cores LC Duplex       8 Cores Wall Mounting or inside FTTH media box application PE bag+Kraft box or OEM White

Standard accessories: labeling paper, heat-shrink splice sleeves; Screw

Optional Accessories: SC Simplex adapter, FC Simplex adapter, LC DX adapter; fast connector; fiber pigtail; mechanical splicer



Application in FTTX.

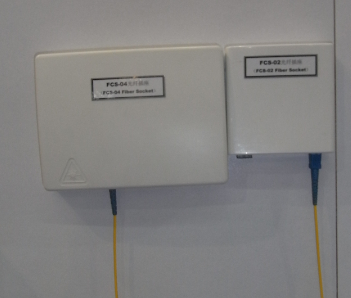

1, In FTTO, fiber socket can installed in wall, on desk.

2, In FTTH, Fiber Socket can install in Family multimedia box.
