FTTH Fiber Access Terminal closure – OFATC-16A

Share to:


OFATC-16A, which made of Modified polymer plastic, It is able to hold up to 16 subscribers and 96 splicing points as closure. Itis used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features with ruggedness, which is tested under harsh conditions and stand up to even the most severe condition of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment



  • Water-proof design with IP-68 Protection level.

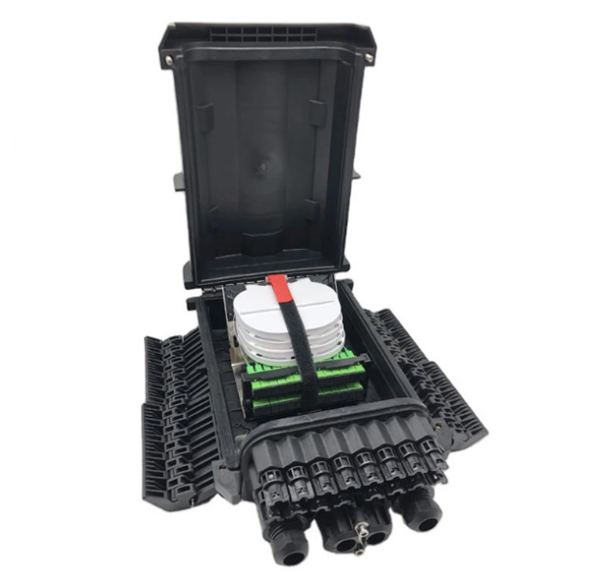

  • Integrated with flap-up splice trays

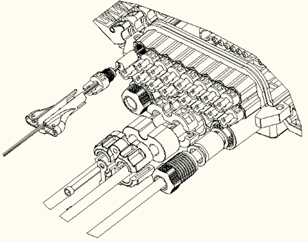

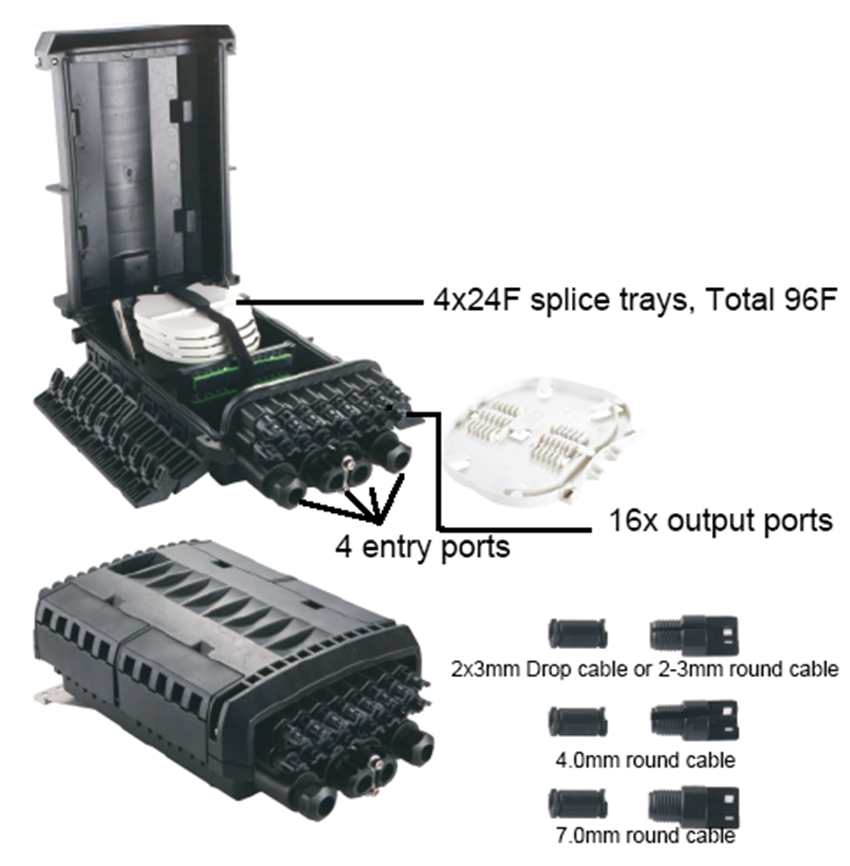

  • 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm) ; 16 x Drop Cable output port
  • Impact test: IK10, Pull Force: 100N, Full rugged design
  • Maximum 96F splice capacity, stainless anti-rust bolts and nuts.
  • Plug-and-play installation, easy for maintenance and expansion Fiber bend radius control more than 40mm
  • 180 degree access with buckled lock structure.
  • 1*8 or 1*16 PLC Splitter can be installed in each splice tray as option.
  • Mechanical sealing structure and mid-span cable entry.
  • Rotatable and dis-mountable spice tray for easy splicing

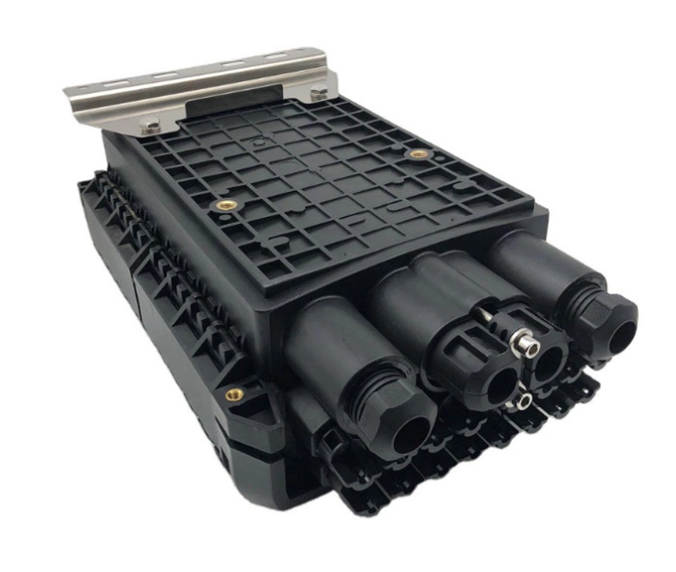

  • Wall mount and pole mount installation




Model OFATC-16A
Adapter 16pcs of SC
Cable Ports 1 uncut port 2 round ports
Applicable cable OD 10-16.5mm 8-13.5mm
Drop cable ports 16 ports
Applicable cable OD 2x3mm, 2x5mm,4-7mm FTTH drop cable
Dimension 385*245*130mm
Material Modified polymer plastic
Color Black
Max Splicing Capacity 96Fibers(4Trays, 24Fibers/Tray)
Applicable Splitter 1pcs of 1×16 PLC splitter or 2pcs of 1×8 PLC splitter
IP Grade  IP 68
Impact test  K10
Pull Force  100N
Midspan Entry  YES
Storage(Tube/Micro cable)  YES
Net weigth (Kg)  4kg
Gross weigth (Kg)  5kg

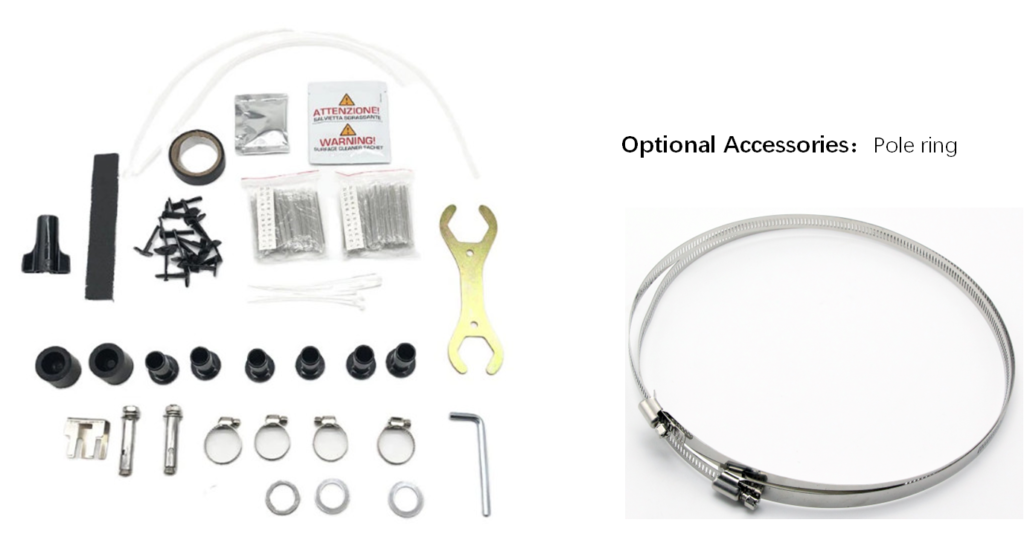

Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves,

hose clamp, cable tube, wreath, cover holder, rubber seal for cable entrance.

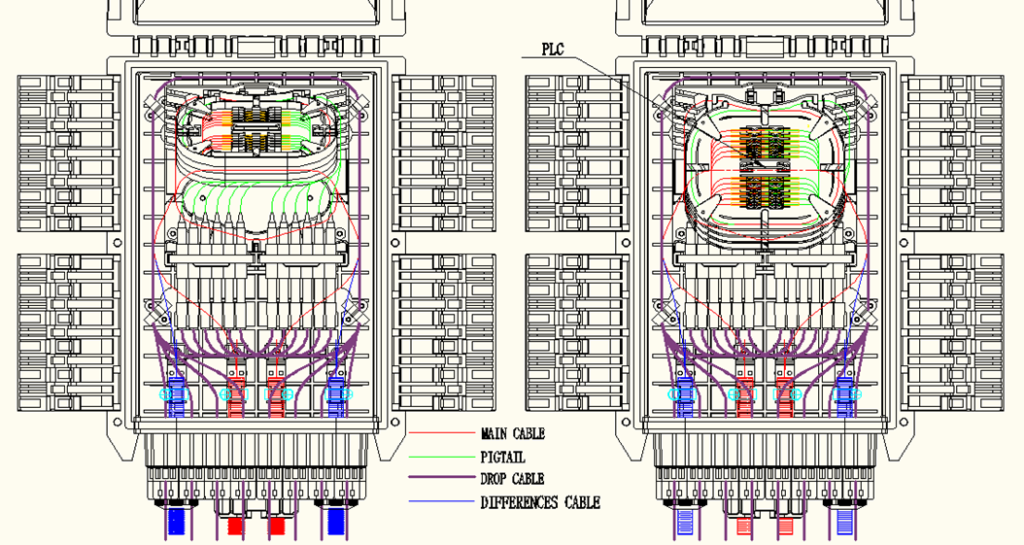

Product cable ways



1.Wall-mounted installation

According to the size of table 1 of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw

2.Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .



Fiber Optical Network.

FTTX project.

Optical Fiber distribution Network.
