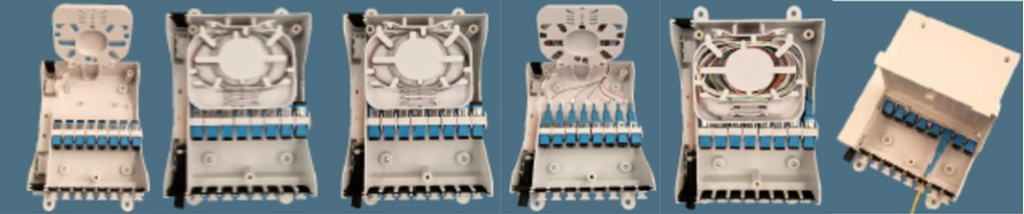

FTTH Fiber Access Terminal closure – IFATC-8B

Share to:

Description

This product integrates the function of splicing with splitting, suitable for  the straight through or branch connection, and terminal connection in  optical system, as well as protection connection for cables and distribution  pigtails. The cables can be spliced with indoor cables by splitting, to meet  the requirement of traditional network.



Features

IP-55 Protection level.

Integrated with splice cassette and cable management rods.  Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity.  Industry Standard User Interface,

Be made of high impact plastic. Anti-UV, Ultra violet resistant and rainfall resistant.

Can accommodate 1×8 or 1×4 PLC splitter Up to 8 FTTH drops.

Unique middle panel≥180°,clear area for splicing and distribution, less cross-connection for cables



Specification

Model IFATC-8B
Adapter 8pcs of SC Simplex/LC Duplex
Splice capacity 48F
Cable Ports 1 in/8 out Drop cable ports
Applicable cable OD 5-10mm
Box Dimensions (mm) 192*133*47
Material ABS/PC
Installation method Wall mount



Technical data

Fiber bend radius:≥40mm

Splice tray excess loss:≤0.01dB

Temperature Range : – 40℃+ 60℃

Anti lateral pressure : ≥2000N / 10 cm

Shock resistance:≥20N.m



Standard Accessories

Installation nuts, Splice sleeves,3×100 cable tie,

M4×25 expansion screws………..



Application

Widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks
