The FTTH Fiber Access Terminal box-IFATC-32B is used as a termination box for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building. It can offer 32 FTTH subscribers access points.
Features
- Total enclosed structure.
- Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65/66。
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.

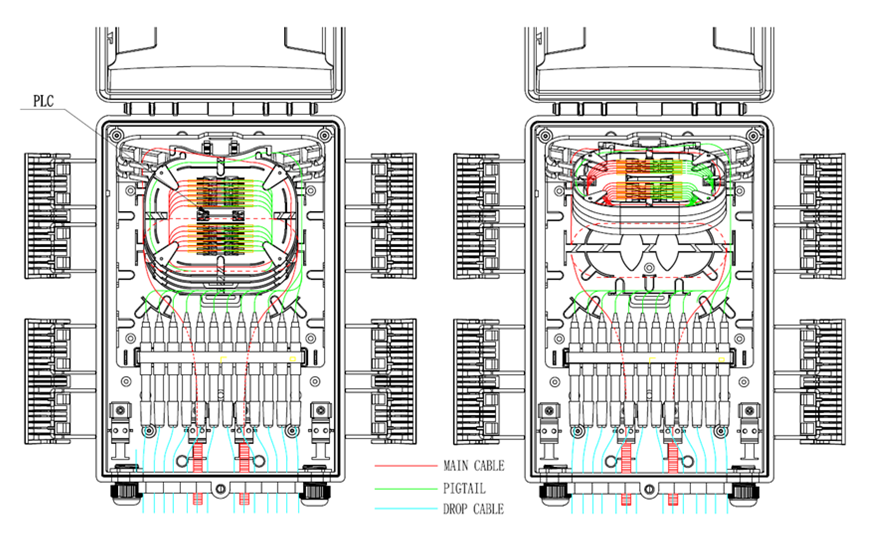

- Cable，pigtails，and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.
- Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
| Model No. |
IFATC-32B |
Color |
Black, Grey, White.. |
| Capacity |
32ports SC+96F Splice |
Protection Level |
IP65 Indoor/Outdoor |
| Material |
PC+ABS, ABS |
Flame retardant performance |
Non-flame retardant |

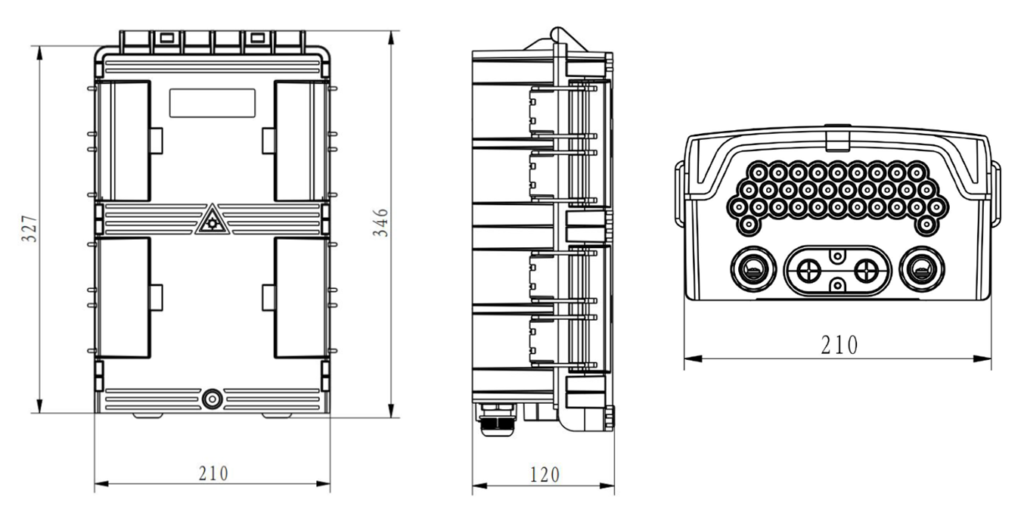

| Dimension(L*W*D,MM) |
346*210*120 |
Splitter |
Can be with 4×1:8 PLC splitter |
| Input Cable OD |
8-15mm |
Output cable OD |
2.0-5.0mm FTTH Cable x32 |
| Installation Method |
Wall mounted |
Insertion loss |
≤0.2dB（1310nm & 1550nm) |
Environmental requirement
Working temperature：-40℃～+85℃ Relative humidity：≤85%（+30℃） Atmospheric pressure：70KPa～106Kpa
Main technical datasheet:
Insertion loss：≤0.15dB UPC return loss：≥50dB APC return loss：≥60dB
Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2 ´104 MΩ/500V（DC）；IR≥2´104 MΩ/500V, The voltage resistance between the grounding device,and the box and its metal
parts is no less than 3000V（DC）/min, no puncture, no flashover；U≥3000V
Application
Optical Telecommunication System,
LAN,Optical fiber Communication System
Optical fiber broadband access network
FTTH access network
Product cable ways

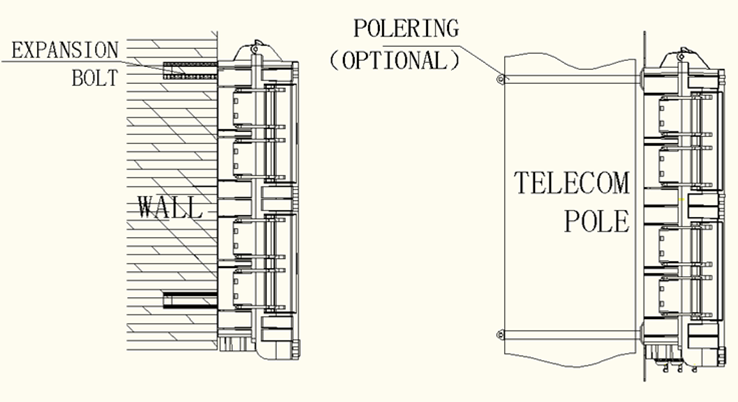

Installation
- Wall-mounted installation
Drill 4 holes over the wall based on the size，place the expansion bolt Φ7.5*40，place the box to match up the holes and use bolt to fasten。
- Pole-mounted installation
Fix 1 set of the easy pole ring to the telecom pole
