FTTH Fiber Access Terminal closure -IFATC-32A

Share to:

Description

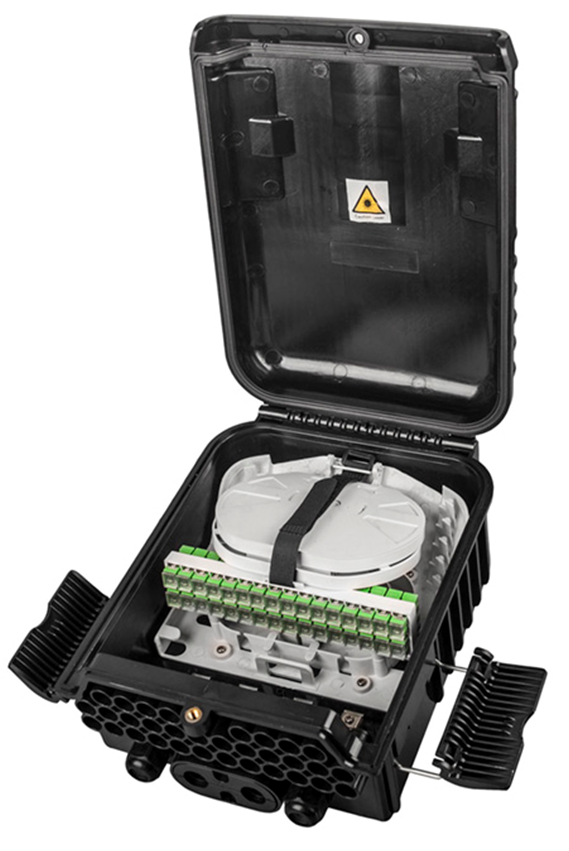

The FTTH Fiber Access Terminal box-IFATC-32A is used as a termination box for the feeder cable to connect  with drop cable in FTTx communication network system. The fiber splicing, splitting,  distribution can be done in this box, and meanwhile it provides solid protection  and management for the FTTx network building. It can offer 32 FTTH subscribers access points.



Features:

  • Total enclosed structure.
  • Material: PC+ABS,wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65/66。
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
  • Cable,pigtails,and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
  • Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use



Specification

Part No.: IFATC-32A-1

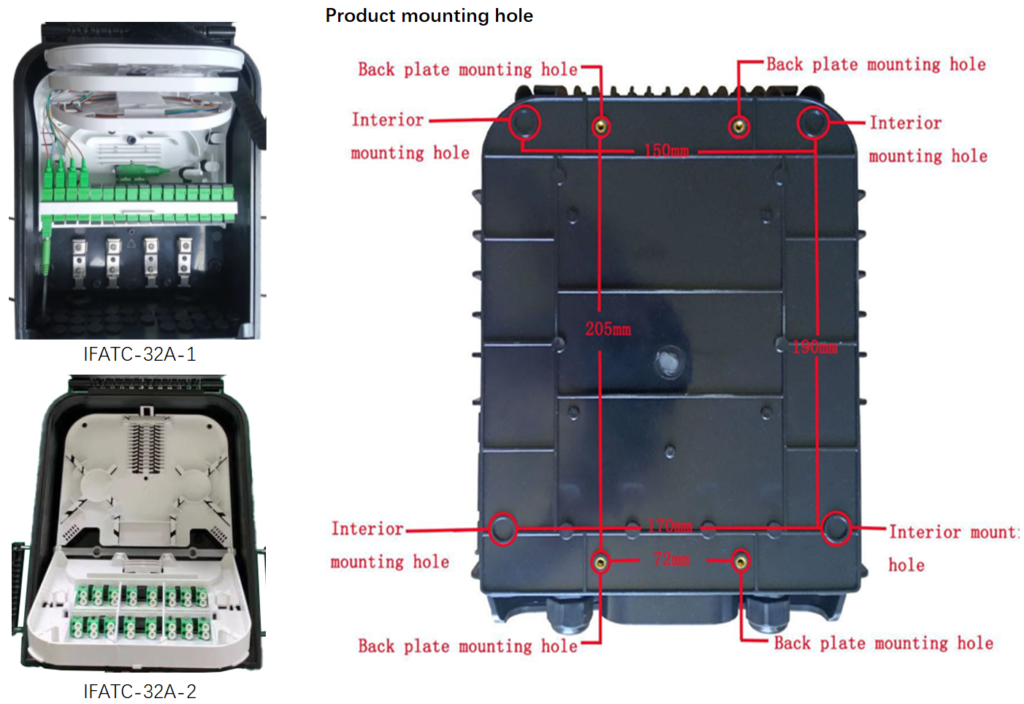

Configuration table Wall mounting Pole mounting installation
Size(mm) 290*210*111 290*210*111
Material PC/ABS PC/ABS
Color black black
Splice Capacity 48F 48F
out put ports 32: drop cable 2*3mm or <4.5mm round cable
Into the largest cable diameter(mm) 1 mid span port(Φ8-16mm);
2 cable gland port (Φ7-12mm)
Suitable PLC Splitter 1×8 or 1×16 or 1×32 Blockless type
Inner box size(mm) 300*220*115 300*220*125
Individual weight(kg) 1.5 1.6
Outer box size(mm) 600*310*460 650*310*460
Gross weight(kg) 15.9 16.9
Outer box capacity(pcs) 10 10



Part No.: IFATC-32A-2

Configuration table Wall mounting Pole mounting installation
Size(mm) 290*210*111 290*210*111
Material PC/ABS PC/ABS
Color black black
Splice Capacity 24F 24F
out put ports 32: drop cable 2*3mm or <4.5mm round cable
Into the largest cable diameter(mm) 1 mid span port(Φ8-16mm);
2 cable gland port (Φ7-12mm)
Suitable PLC Splitter 1×8 or 1×16 or 1×32 Blockless type
Inner box size(mm) 300*220*115 300*220*125
Individual weight(kg) 1.5 1.6
Outer box size(mm) 600*310*460 650*310*460
Gross weight(kg) 15.9 16.9
Outer box capacity(pcs) 10 10



Environmental requirement

Working temperature:-40℃~+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa~106Kpa



Main technical datasheet

Insertion loss:≤0.15dB

UPC return loss:≥50dB

APC return loss:≥60dB



Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of the box is no less than 2×104MΩ/500V(DC);IR≥2×104MΩ/500V; The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V



Cable&Splitter Deployment



1, Wall mounting Installation

2,Pole mounting installation

3, Aerial Installation
