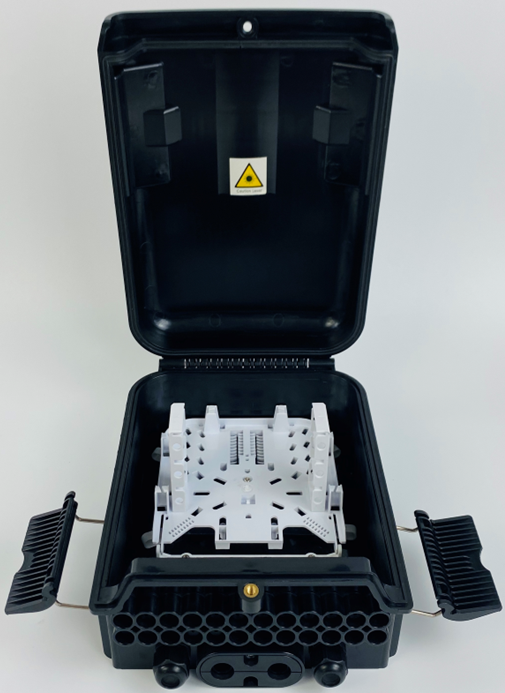

The FTTH Fiber Access Terminal box-IFATC-24D is used as a termination box for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building. It can offer 24 FTTH subscribers access points.
Features:
- Total enclosed structure.
- Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65/66。
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
- Cable，pigtails，and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use
Part No.: IFATC-24D-1
| Configuration table |
Wall mounting |
Pole mounting installation |
| Size(mm) |
290*210*111 |
290*210*111 |
| Material |
PC/ABS |
PC/ABS |
| Color |
black |
black |
| Splice Capacity |
48F |
48F |
| out put ports |
16: drop cable 2*3mm or <4.5mm round cable |
| Into the largest cable diameter(mm) |
1 mid span port(Φ8-16mm);
2 cable gland port (Φ7-12mm) |
| Suitable PLC Splitter |
1×8 or 1×16 Blockless type |
| Inner box size(mm) |
300*220*115 |
300*220*125 |
| Individual weight(kg) |
1.22 |
1.32 |
| Outer box size(mm) |
600*310*460 |
650*310*460 |
| Gross weight(kg) |
12.9 |
13.9 |
| Outer box capacity(pcs) |
10 |
10 |
Part No.: IFATC-24D-2
| Configuration table |
Wall mounting |
Pole mounting installation |
| Size(mm) |
290*210*111 |
290*210*111 |
| Material |
PC/ABS |
PC/ABS |
| Color |
black |
black |
| Splice Capacity |
12F |
12F |
| out put ports |
16: drop cable 2*3mm or <4.5mm round cable |
| Into the largest cable diameter(mm) |
1 mid span port(Φ8-16mm);
2 cable gland port (Φ7-12mm) |
| Suitable PLC Splitter |
1×8 or 1×16 Mini Plug-in module Type |
| Inner box size(mm) |
300*220*115 |
300*220*125 |
| Individual weight(kg) |
1.21 |
1.31 |
| Outer box size(mm) |
600*310*460 |
650*310*460 |
| Gross weight(kg) |
12.8 |
13.8 |
| Outer box capacity(pcs) |
10 |
10 |
Part No.: IFATC-24D-3
| Configuration table |
Wall mounting |
Pole mounting installation |
| Size(mm) |
290*210*111 |
290*210*111 |
| Material |
PC/ABS |
PC/ABS |
| Color |
black |
black |
| Splice Capacity |
12F |
12F |
| out put ports |
16: drop cable 2*3mm or <4.5mm round cable |
| Into the largest cable diameter(mm) |
1 mid span port(Φ8-16mm);
2 cable gland port (Φ7-12mm) |
| Suitable PLC Splitter |
1×8 or 1×16 Blockless type |
| Inner box size(mm) |
300*220*115 |
300*220*125 |
| Individual weight(kg) |
1.34 |
1.44 |
| Outer box size(mm) |
600*310*460 |
650*310*460 |
| Gross weight(kg) |
14.1 |
15.1 |
| Outer box capacity(pcs) |
10 |
10 |
Environmental requirement
Working temperature：-40℃～+85℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
Main technical datasheet
Insertion loss：≤0.15dB
UPC return loss：≥50dB
APC return loss：≥60dB
Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2×104MΩ/500V（DC）；IR≥2×104MΩ/500V; The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V
Installation Introduce
1, Wall mounting Installation
2,Pole mounting installation
3, Aerial Installation
