FTTH Fiber Access Terminal closure – IFATC-16E

Share to:

Description

The FTTH Fiber Access Terminal box-IFATC-16E is used as a termination box for the feeder cable to connect  with drop cable in FTTx communication network system. The fiber splicing, splitting,  distribution can be done in this box, and meanwhile it provides solid protection  and management for the FTTx network building. It can offer 16 FTTH subscribers access points.



Features

  • Total enclosed with key and 2*buckles, square shape, light weight, compact size;
  • High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and UV attack;
  • Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
  • Cable, pigtails are running through own path without disturbing each other;
  • Distribution panel can be flipped up, 1X16 LGX splitter or micro splitter with 16SC adapter is optional;
  • Fusion plate can be maximum 16cores splicing, large area for routing and storage;
  • Feeder cable can be placed by expression port, easy for maintenance and installation;
  • Outdoor Wall mount or pole mount, IP65 protection class







Specification

Model No. IFATC-16E Color Black, Grey White..
Capacity 16ports SC+24F Splice Protection Level IP65 Indoor/Outdoor
Material PC+ABS, ABS Flame retardant performance Non-flame retardant

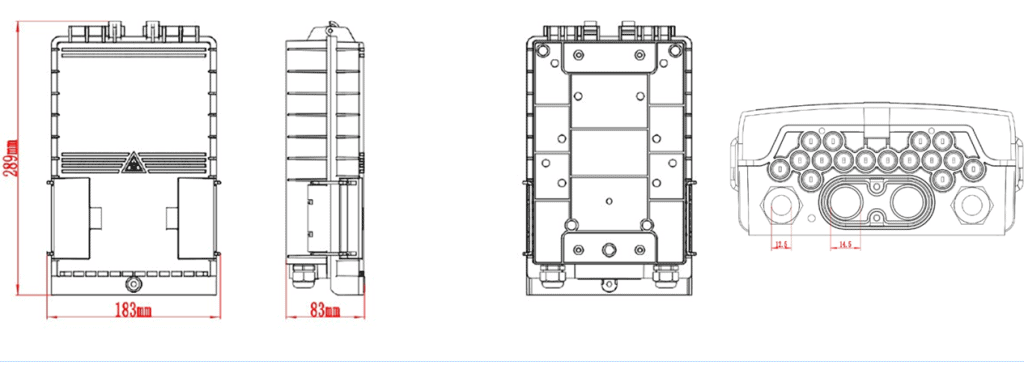

Dimension(L*W*D,) 289x183x83mm Splitter Can be with 2×1:8 Plug in splitter or 1×1:16 plug-in Splitter
Input  Cable OD 1 mid span port( Φ16mm Max),

2x PG 13.5-PG16 Gland

Output cable OD 16: drop cable 2*3mm or <4.5mm round cable
Installation Method Wall&Pole mounted Insertion loss ≤0.2dB(1310nm & 1550nm)



Environmental requirement

Working temperature:-40℃~+85℃  Relative humidity:≤85%(+30℃)  Atmospheric pressure:70KPa~106Kpa



Main technical datasheet:

Insertion loss:≤0.2dB  UPC return loss:≥50dB  APC return loss:≥60dB



Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of  the box is no less than 2 ´104 MΩ/500V(DC);IR≥2´104 MΩ/500V, The voltage resistance between the grounding device,and the box and its metal

parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V



Application

Wall mounting and pole mounting installation

FTTH pre-installation and filed installation

Suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable

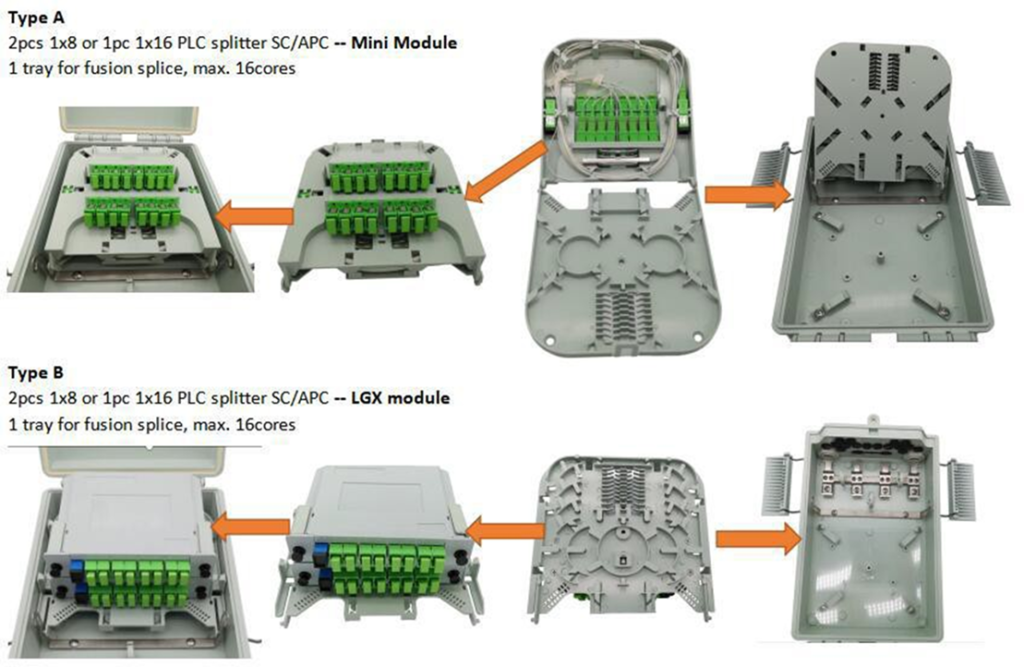

Internal Structure



Standard Accessories:

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves,

hose clamp, cable tube, wreath, cover holder, rubber seal for cable entrance.



Optional Accessories: Pole ring

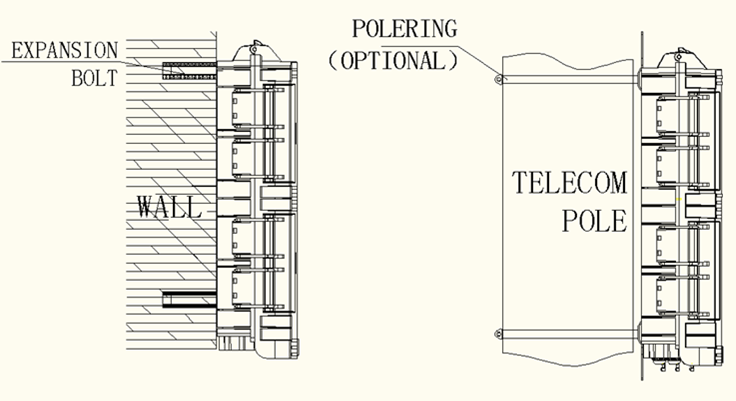

Installation

  1. Wall-mounted installation

Drill 4 holes over the wall based on the size,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.

  1. Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole
