FTTH cable connect protection box-outdoor

Share to:

Description

Fiber connection protection box is kind of ABS box which used for FTTH project. It offer a fast and easy connection method for obsolete community and Remote countryside. The connection method is a flexible connection method.

Specification

Part No. Dimension

(L×W×H mm)

Materials In/out port Max. port size(mm) Max.

capacity

Remark
FP-2A1 160*46.5*16.57 Industrial ABS

(UV Resistence)

1 in 2 out 3.0MM 1F OUTDOOR USAGE

IP65 White/Light grey

FP-2A2 160*46.5*16.57 Industrial ABS

(UV Resistence)

3.0MM 1F OUTDOOR USAGE

IP65 Black

  Optional Accessories: SC Simplex adapter, FC Simplex rectangle adapter, LC DX adapter

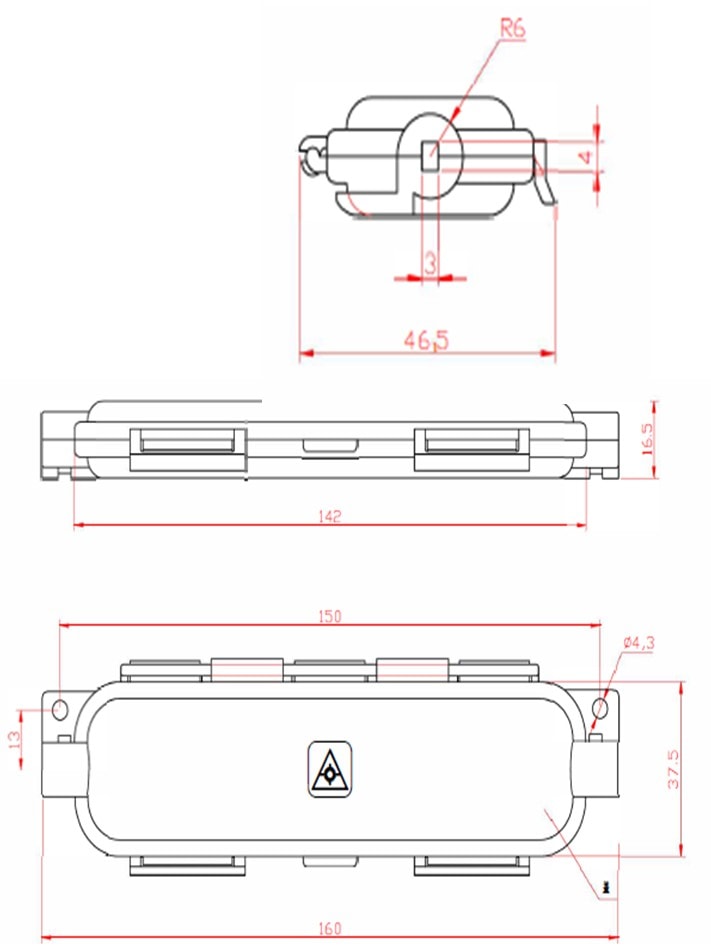

Drawing



Technical Parameters:

Material: Acrylonitrile Butadiene Styrene (ABS)

Sealing performance: IP65(outdoor)

Structure: up-and-down flip-type

Usage: suitable for adapter and splice protection sleeve
