The closure adopts heat shrinkable sealing structure.
There is one big oval shaped inlet/outlet port in base.
The big oval shaped port is used for the sealing of uncut straight-through fiber cable, the small ports are used for branch fiber cable and drop cable.
It adopts engineering PC plastic with high-strength to make the closure has longer life time and excellent sealing performance.
The patented sealing structure keep good sealing performance after re-entry and re-using.
It is without cable fixing device.
The bending radius of FOSTs meet the international standard. It could save the installation time and improve work efficiently.
Description
Specification
| Material |
Size |
Max Capacity |
Cable Entrance |
Sealing Mechanism |
Weight |
Color |
|
| Strengthen Polymer Plastic | H*D (mm) 450*221x*210 | Splice Cores 288 Cores | Trays 24F/48F | 1 x oval port 6 x round port |
Heat–Shrinkable Seal |
2.4kg |
Black |

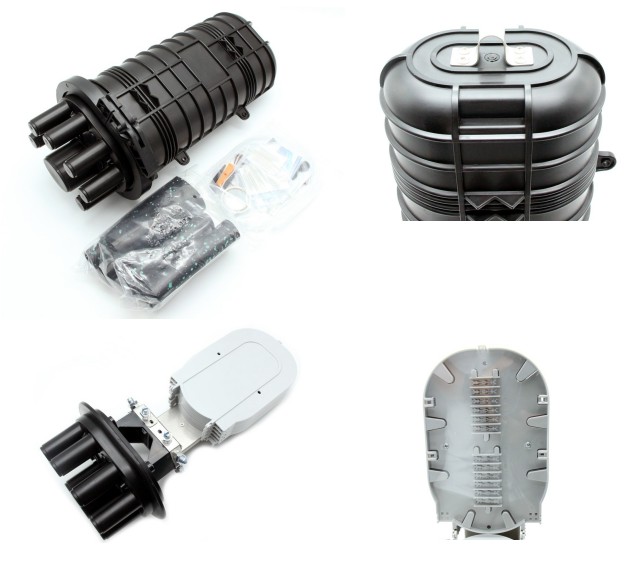

Products details

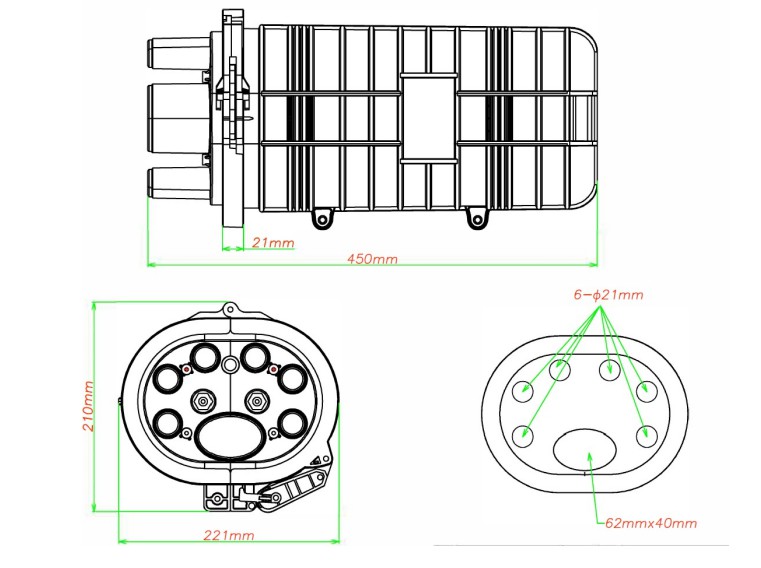

Structural Drawing
Accessories
1: Splice sleeve: 8xbags or 12 bags, 12pcs per bag 2, PE tube: ∅ 4.6×2.5mm 1m x 4pcs
3, White Insulation tape: 2.5mm width x 1piece
4, Sander paper: 270x30mm x 2pcs
5, Nylon tie 2.5x120mm x 16pcs
6, Foil tape : 100x250mm x 2pcs
7, Small Heat shrink tube: ∅ 35x150mm , Thickness:0.9mm x 6pcs
8, Big Heat shrink tube: ∅ 70x150mm, Thickness:1.1mm x 6pcs
9, Digital label: 1-12. x 2 set
10, Branching clip x 1piece
